Product Details:
|
Type: | Portable Battery Charger | Model: | ESCH80V60A-O |
---|---|---|---|
Application: | Electric Forklift Truck | Applicable Battery: | 80v Battery |
Dimensions (mm): | Long * Wide * High:386*169*360 (mm) | Output Maximum Current (A): | 60 |
Maximum Power Point (W): | 6000 | Packaging: | Cartons And Pallets |
High Light: | high frequency battery charger,fork lift battery charger |

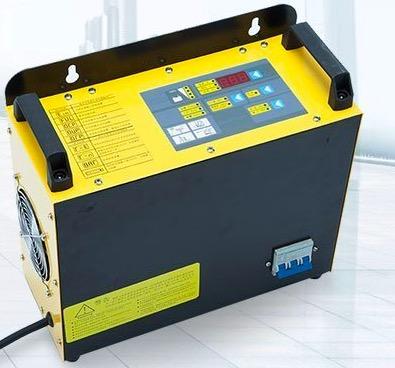

Portable Industrial Battery Charger
Application: Fork Lift(80v)
Model Name: ESCH80V60A-O
Product Parameters
Model | ESCH80V60A-O | |
Dimensions (mm) | Long * wide * high:386*169*360 (mm) | |
Output maximum current (A) | 60 | |
Maximum power point (W) | 6000 | |
Input voltage (VAC) | 380V±15% Three phase three wire +safe ground wire | |
Output voltage (VDC) | Lead-acid battery:96V; VRLA:93V;(Customizable) | |
Applicable battery voltage | 80V lead-acid battery pack, (Customizable, Lithium battery optional) | |
Maximum efficiency | 97% | |
Output voltage regulation precision | ±1% | |
Output current accuracy | ±1% | |
Working temperature | -30℃~-45℃ | |
Classes of seismic measure | SAEJ1378 | |
Cooling mode | Airblast cooling | |
Over-temperature protection | 75℃±5 | |
Input over-voltage protection (VAC) | >456~476 | |
Input under-voltage protection (VAC) | <284~304 | |
Output over-voltage protection (VDC) | 65V±1 | |
Output over-current protection (A) | >110%*Maximum charge current | |
Output short circuit protection | When the output is short-circuited, charger shutdown, and automatic recovery after short-circuit solved. | |
Battery reverse protection | Charger shutdown and alarm when the wire is connected reversely, it will automatically resume after wiring correctly. |
Product Specification
Product Characteristics
Product Strength
Packaging & Delivery
Packaging Details:
Cartons,
Delivery Detail:
In 7 to 15 days against the order confirmation and deposit.
