Product Details:
|
Type: | Solid Tire Press Machine | Model: | TP160 |
---|---|---|---|
Capacity: | 160Tons | Weight: | 2000 Kgs |
Size: | L2110xW800xH2300 Mm | Brand: | LAKER |
Motor: | 5.5KW | Color: | Blue,Yellow, Silver |
Warranty: | Accessories Lifetime Warranty | Voltage: | 220V/380V Customized |
Work Hydraulic: | 21.5Mpa | Max Tire Size: | 16Inches |
Highlight: | Forklift Tyre Press Machine,Solid Tire Press Machine |
Mounting / Dismounting Forklift Tire Press Machine Blue Yellow Silver Color
Model: TP160
Introduction
1.6MN solid tyre pressing machine is a special equipment for solid tire loading and unloading,
It can also apply to the tyres below 16 ".

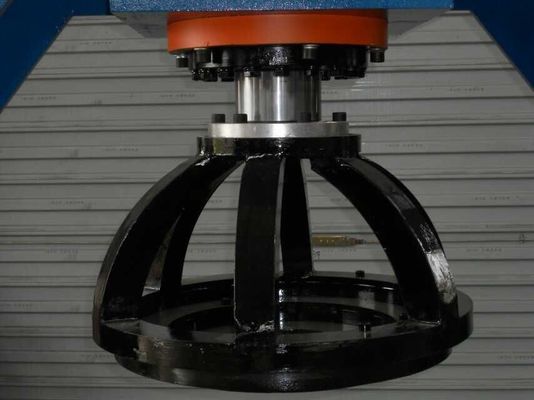

This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.
The hydraulic system of the machine consists of hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
High pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 21.5MPa.
Product Features
Model | TP160 |
Nominal pressure |
1.6 MN |
Work hydraulic |
21.5 Mpa |
Max Tire Size | 16 Inches |
Max Cylinder Stroke | 650 mm |
Motor | 5.5KW |
Oil Tank Capacity | 90 L |
Size | L2110xW800xH2300 mm |
Weight | 2000 kg |
