High‑capacity safe lithium‑ion battery, equipped with reliable built‑in BMS protection system, maintenance‑free & long service life, compatible with most forklift brands
Product Details
| Brand: | PROLAKER | Product Type: | Forklift Lithium Battery |
|---|---|---|---|
| Protection: | Integrated BMS Protection System | Feature: | Maintenance‑free, Long Cycle Life |
| Color: | Black |
Product Description
🔹 Product Overview
Our Lithium batteries are specially developed for industrial vehicle harsh working conditions. Covering 24V /48V /72V /80V series, fit for pallet trucks, stackers, counterbalance forklifts and AGVs.Voltage, capacity, dimension and weight can be fully customized according to customer requirements.Adopt intelligent BMS system, support CAN‑bus communication, realize seamless connection with vehicle controller and charger system.
🔹 Product Details
This industrial‑grade lithium iron phosphate battery pack replaces traditional lead‑acid batteries for electric material‑handling vehicles.
● Built‑in smart BMS for cell balance, over‑charge, over‑discharge, over‑current, short‑circuit and high/low‑temperature protection.
● Independent charge & discharge ports, optional REMA or other industry‑standard connectors.
● External display screen for real‑time viewing of battery voltage, SOC, current, cell temperature and alarm information.
● Wide operating temperature range: ‑20℃ ~ +55℃ for discharge, 0℃ ~ +55℃ for charging.
● Maintenance‑free design, no watering required.
● Long service life, with warranty of 5 years or 10000 working hours.
|

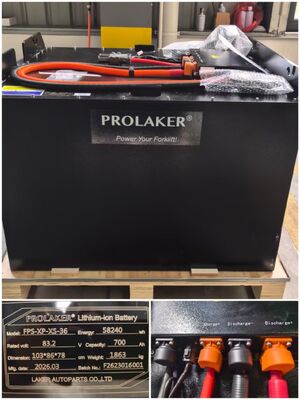

Parameter
|
Value
|
|---|---|
|
Brand
|
PROLAKER
|
|
Model
|
FPS‑XP‑XS‑36
|
|
Rated Voltage
|
83.2V
|
|
Capacity
|
700Ah
|
|
Energy
|
58240Wh
|
|
Dimension
|
103×86×78cm
|
|
Weight
|
1863kg
|
|
Parameter
|
24V Series
|
48V Series
|
72V Series
|
80V Series
|
AGV Series
|
|---|---|---|---|---|---|
|
Nominal Voltage(V)
|
25.6
|
51.2
|
76.8
|
83.2
|
25.6 / 51.2
|
|
Available Capacity(Ah)
|
210-315
|
315-630
|
420-460
|
420-880
|
105-230
|
|
Operating Voltage(V)
|
22-29.2
|
44-58.4
|
66-87.6
|
71.5-94.9
|
22-29.2 / 44-58.4
|
|
Charging Voltage(V)
|
29.2
|
58.4
|
87.6
|
94.9
|
29.2 / 58.4
|
|
Charging Temp.(°C)
|
0~55
|
||||
|
Discharge Temp.(°C)
|
-20~55
|
||||
|
Storage Temp.(°C)
|
0~45
|
||||
|
Warranty
|
5 years or 10000 working hours
|
||||
