Quality Compact 1800kg Rated Capacity Lithium Counterbalance Forklift with 1550mm Turning Radius and 80V Lithium Battery for Narrow Aisle Warehousing factory
<
Quality Compact 1800kg Rated Capacity Lithium Counterbalance Forklift with 1550mm Turning Radius and 80V Lithium Battery for Narrow Aisle Warehousing factory
>

Compact 1800kg Rated Capacity Lithium Counterbalance Forklift with 1550mm Turning Radius and 80V Lithium Battery for Narrow Aisle Warehousing

Brand Name: EP
Model Number: TVL181
Place of Origin: CHINA
Certification: CE,ISO
Minimum Order Quantity: Negotiable
Price: Negotiable
Supply Ability: 100SETS PER MONTH
Delivery Time: 30days
Payment Terms: L/C,T/T,Western Union
Standard Packaging: NUDE MACHINE
Tags

1.2t Electric Stacker

Reach Truck Electric Stacker

1.0-1.6 Ton Electric Power Stacker

Product Details

TYPE: FORKLIFT Battery: 80V205Ah
Rated Capacity: 1800kg Turning Radius: 1550mm
Highlight

1800kg Rated Capacity Electric Stacker

,

1550mm Turning Radius Counterbalance Forklift

,

80V Lithium Battery Lithium Forklift

Product Description

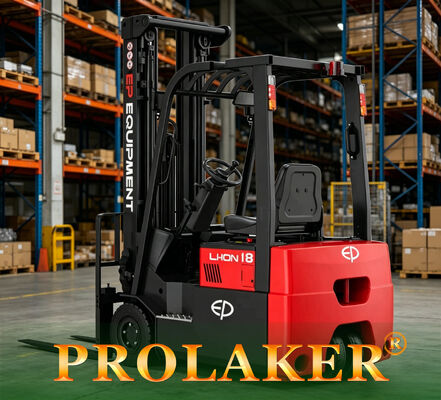

EP TVL181 is a compact three-wheel lithium counterbalance forklift designed for narrow aisle warehousing and loading/unloading tasks, becoming a rising star in Google searches for small warehouse solutions. With a rated capacity of 1800kg and a tight turning radius of just 1550mm, this forklift is engineered to maximize efficiency in confined spaces, making it ideal for small warehouses, dockside operations, and rental businesses.

At the heart of the TVL181’s performance is its 80V high-voltage lithium-ion power system. Equipped with a 205Ah lithium battery and dual 5.0kW drive motors, the TVL181 delivers higher power efficiency than traditional 48V forklifts, supporting up to 6 hours of continuous operation on a single charge. The system includes a 35A single-phase integrated charger, allowing the forklift to be charged at any standard power outlet (except 10A/13A plugs in certain regions), making it ideal for rental businesses with opportunity charging needs.

Designed for tight spaces, the TVL181 features an ultra-compact footprint with a 1550mm turning radius, enabling it to navigate narrow aisles as easily as the smaller TVL151. This compact design, combined with a low overall height of 2075mm (mast lowered), makes it perfect for small warehouses with height restrictions and high-density racking systems. The short wheelbase and three-wheel configuration further enhance maneuverability, allowing operators to work efficiently in confined environments.
Operator comfort is prioritized in the TVL181’s ergonomic design. The large workspace offers a spacious legroom of 394mm, thanks to the compact lithium battery and optimized layout of control levers and foot brake pedals. This spacious cab reduces operator fatigue during long shifts, ensuring comfort even in extended periods of use. The intuitive control layout and smooth operation make the TVL181 easy to use for both new and experienced operators.

Versatility is a key feature of the TVL181, making it suitable for a wide range of applications. In indoor warehousing, its compact size and tight turning radius allow it to navigate narrow aisles and high-density racking systems with ease. At docks and loading bays, the powerful 80V system ensures strong performance in loading and unloading tasks, while the opportunity charging capability makes it ideal for rental businesses with unpredictable usage patterns. From small retail warehouses to busy distribution centers, the TVL181 adapts to diverse operational needs.

Built for durability and low maintenance, the TVL181’s lithium-ion battery requires no water topping or maintenance, reducing long-term operating costs. The integrated charger eliminates the need for external charging stations, saving space and simplifying daily operations. Combined with EP’s renowned build quality and global support, the TVL181 is a cost-effective, reliable solution for businesses looking to upgrade their material handling equipment.


Item Specification
Model Designation TVL181
Battery Type Li-ion
Battery Nominal Capacity 205Ah
Battery Voltage 80V
Rated Capacity 1800kg
Key Features Compact turning radius, 80V high-efficiency system, large workspace, enhanced mast, integrated charger
Primary Applications Indoor warehousing, narrow aisle operation, dock loading/unloading, rental business

Compact 1800kg Rated Capacity Lithium Counterbalance Forklift with 1550mm Turning Radius and 80V Lithium Battery for Narrow Aisle Warehousing


FAQ

Q1: What makes the TVL181 suitable for narrow aisles?

A: The TVL181 features an ultra-tight turning radius of just 1550mm, a compact overall width of 1100mm, and a three-wheel design. This combination allows it to maneuver easily in narrow aisles, maximizing storage efficiency in small warehouses.

Q2: What are the benefits of the 80V lithium power system?

A: The 80V system with dual 5.0kW motors offers higher power efficiency than traditional 48V forklifts, supporting up to 6 hours of continuous operation. The 205Ah lithium battery is maintenance-free, with long cycle life and zero emissions.

Q3: What operator comfort features does the TVL181 offer?

A: The TVL181 provides a spacious workspace with 394mm of legroom, thanks to the compact lithium battery and optimized control layout. The ergonomic design reduces operator fatigue during long shifts.

Q5: How does the enhanced mast improve safety and visibility?

A: The high-strengthened mast (shared with the CPD20L2) offers excellent all-around visibility, allowing operators to clearly see loads and surroundings. It also provides exceptional stability, ensuring safe handling even at maximum lift height.

Q6: What applications is the TVL181 best suited for?

A: The TVL181 is ideal for indoor warehousing, narrow aisle operations, dockside loading/unloading, and rental businesses. Its compact size, power efficiency, and opportunity charging capability make it versatile for various small to medium-scale operations.

Q7: Why choose the EP TVL181 over other compact forklifts?

A: The TVL181 combines a compact design with high-efficiency 80V power, a spacious cab, integrated charging, and EP’s renowned build quality. It offers a perfect balance of maneuverability, performance, and low maintenance for businesses looking to optimize their material handling operations.

Product Highlights

EP TVL181 is a compact three-wheel lithium counterbalance forklift designed for narrow aisle warehousing and loading/unloading tasks, becoming a rising star in Google searches for small warehouse solutions. With a rated capacity of 1800kg and a tight turning radius of just 1550mm, this forklift is ...
