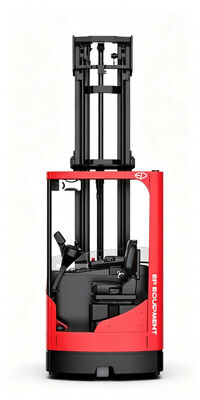

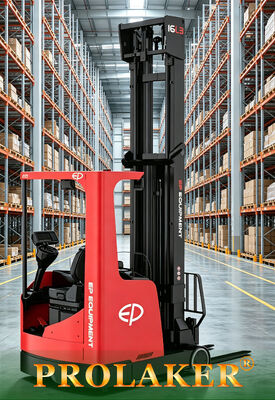

EP CQD14L3 / CQD16L3 series is a high-performance narrow-aisle reach truck specially designed for high-density warehouse racking systems, becoming one of the most sought-after material handling solutions on Google in recent years. Covering 1400kg and 1600kg load capacities, this reach truck is built to maximize storage efficiency in tight spaces while delivering exceptional stability, visibility, and operator comfort. It is the ideal choice for warehouses aiming to increase storage density without compromising on safety or productivity.
At the core of the CQD14L3/16L3’s design is its ultra-compact footprint, optimized for high-density racking systems. With a working aisle width of just 2701mm, the truck can navigate narrow aisles with ease, allowing warehouses to fit more pallets in the same space. Its tight turning radius (1629mm for CQD14L3, 1680mm for CQD16L3) enhances maneuverability, making it highly competitive among peers in the reach truck category. This compact design directly translates to increased storage capacity and reduced operational costs for businesses.
The enhanced mast system is another standout feature, delivering unmatched stability even at maximum lift heights. The CQD14L3 reaches up to 8000mm, while the CQD16L3 extends to an impressive 9655mm, maintaining full residual capacity at heights up to 7.5m and 7m respectively. The mast’s optimized structure ensures minimal sway and maximum visibility, allowing operators to stack pallets safely and accurately even at full height. This stability is critical for demanding warehouse environments where high-lift operations are frequent.
Operator comfort and safety are prioritized in every detail. The spacious cab design provides an unobstructed view of goods and surroundings, eliminating blind spots and reducing operator fatigue during long shifts. This all-round visibility allows operators to work confidently in crowded environments, minimizing the risk of collisions and improving overall safety. The truck also features electric steering with damping, which enhances stability and control, especially during tight turns or when handling heavy loads. The damping function ensures a smoother, more comfortable driving experience, reducing operator strain and improving productivity.
Powered by an 80V lithium-ion battery system, the CQD14L3/16L3 series delivers high efficiency with fast lifting and lowering speeds. Lifting speeds reach 0.6m/s, while lowering speeds are optimized at 0.55m/s, ensuring quick and precise material handling. The battery is available in multiple capacities (150/205/280Ah) and features an external charging plug for convenient charging, whether at dedicated stations or on-site. The lithium-ion power system offers long cycle life, low maintenance, and zero emissions, making it both eco-friendly and cost-effective.
The truck is equipped with multi-functional configurations to simplify operation, including proportional lifting controls and a full-color display. Proportional lifting allows for smooth, precise control of the mast, while the full-color display provides clear visibility of key operating parameters such as battery level, speed, and fault codes. Additionally, the turnable seat compartment simplifies maintenance, allowing technicians easy access to internal components for servicing and repairs, reducing downtime and keeping operations running smoothly.
Built for demanding industrial use, the CQD14L3/16L3 series combines robust construction with advanced safety features to meet the needs of modern warehouses. From the optimized mast and compact design to the ergonomic cab and intelligent controls, every aspect of the truck is engineered to enhance efficiency, safety, and operator comfort. Whether you’re managing a high-density distribution center, a retail warehouse, or a manufacturing facility, the EP CQD14L3/16L3 reach truck delivers the performance and reliability you need to keep your operations moving.
| Item |
CQD14L3 |
CQD16L3 |
| Model Designation |
CQD14L3 |
CQD16L3 |
| Drive Unit |
Electric |
Electric |
| Load Capacity (kg) |
1400 |
1600 |
| Lift Height (mm) |
8000 |
9655 |
| Key Features |
Compact design, enhanced mast, electric steering with damping, spacious cab, full-color display, proportional lifting, turnable seat compartment |
Compact design, enhanced mast, electric steering with damping, spacious cab, full-color display, proportional lifting, turnable seat compartment |
FAQ
Q1: What are the main differences between the CQD14L3 and CQD16L3 models?
A: The primary differences are in load capacity and maximum lift height. The CQD14L3 offers a 1400kg load capacity and a maximum lift height of 8000mm, while the CQD16L3 provides a higher 1600kg capacity and an extended lift height of 9655mm. Both models share the same compact design, power system, and operator features.
Q2: How narrow of an aisle can the CQD14L3/16L3 operate in?
A: The CQD14L3 requires a working aisle width of just 2701mm, while the CQD16L3 needs 2715mm. Both are optimized for high-density racking systems, allowing warehouses to maximize storage capacity without expanding their footprint.
Q3: What is the benefit of the enhanced mast system?
A: The enhanced mast delivers unmatched stability even at full lift heights. It maintains full residual capacity at heights up to 7.5m (CQD14L3) and 7m (CQD16L3), ensuring safe and accurate stacking without excessive sway. This stability is critical for high-lift operations in demanding warehouse environments.
Q4: How does the electric steering with damping improve operation?
A: The electric steering with damping enhances stability and control, especially during tight turns or when handling heavy loads. It ensures a smoother, more comfortable driving experience, reducing operator fatigue and improving overall safety and productivity.
Q5: What power system does the CQD14L3/16L3 use?
A: Both models are powered by an 80V lithium-ion battery system, available in 150/205/280Ah capacities. The external charging plug offers flexibility for charging, while the lithium-ion technology provides long cycle life, low maintenance, and zero emissions.
Q6: What features improve operator comfort and safety?
A: Key features include a spacious cab with unobstructed visibility, proportional lifting controls, a full-color display, and electric steering with damping. These elements reduce fatigue, eliminate blind spots, and simplify operation, creating a safer and more comfortable working environment.
Q7: How is maintenance simplified on these reach trucks?
A: The turnable seat compartment provides easy access to internal components, allowing technicians to perform servicing and repairs quickly. This design reduces downtime and keeps operations running smoothly.
Q8: What are the key applications for the CQD14L3/16L3 series?
A: These reach trucks are ideal for high-density warehouses, distribution centers, retail storage facilities, and manufacturing environments where narrow aisles and high-lift operations are required. They excel in maximizing storage efficiency while maintaining productivity and safety.
