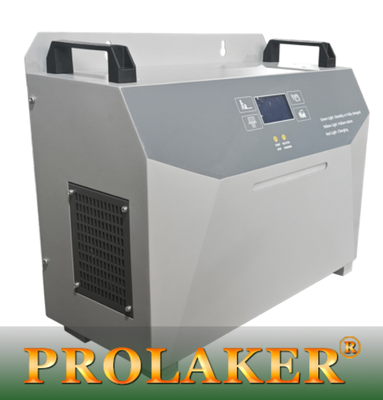

Heavy Duty 80V 65A Forklift Lithium Charger Low Grid Pollution Long Lifespan
Product Details
| Application: | Forklift Lithium Battery | Model: | ESCH 80V 65A |
|---|---|---|---|
| Overall Dimension: | 497*242.7*411 | Max Output Current (A): | 65 |
| Output Power (W): | 6000 | ||
| Highlight |
80V forklift lithium charger,65A heavy duty battery charger,low pollution forklift charger |
||
Product Description
Product Description
The ESCH forklift battery charger typically refers to an industrial charger used to replenish the energy in forklift batteries. These chargers are often designed for heavy-duty environments, aiming to ensure optimal performance, efficiency, and longevity of forklift batteries.
Product Catalog
| Model | ESCH 80V 65A | ESCH 80V 130A | ||
| Overall dimension | 497*242.7*411mm | |||
| Maximum output current(A) | 65 | 130 | ||
| Output power(W) | 6000 | 13000 | ||
| Input Power Supply | 380V土15% Three phases Four-wire | 380V土15% Three phases Four-wire | ||
| Maximum Output Voltage(VDC) | 100 | 100 | ||
| Compatible Battery Specification | 80V 400-600Ah lithium battery | |||
| Maximum Efficiency | ≥94% | ≥94% | ||
| Output Voltage Regulation Accuracy | ±0.5% | ±0.5% | ||
| Output Current Regulation Accuracy | ±1% | ±1% | ||
| Operating Temperature | -40°C-50℃ | -40°C-50℃ | ||
| Vibration Resistance Grade | SAEJ1378 | |||
| Cooling Method | Air Cooling | Air Cooling | ||
| Over Temperature Protection | 70℃ | 70℃ | ||
| Input Overvoltage Protection (VAC) | ＞530±10V | ＞530±10V | ||
| Input Undervoltage Protection (VAC) | ＜250±10V | ＜250±10V | ||
| Output Overvoltage Protection (VDC) | 105±5 | 105±5 | ||
| Output Overcurrent Protection (A) | >110% of Max Charging Current | |||
| Output Short Circuit Protection | When output short-circuited, the charger shuts down automatically; it will self-recover after fault removal. | |||
| Battery Reverse Polarity Protection | None | |||
Key Features
- Fully automatic lithium battery charger, strictly follows the lithium battery charging characteristic curve during the whole charging process.
- Built-in active Power Factor Correction (PFC) inside the charger achieves zero pollution to the power grid and prevents high-current impact on the grid.
- Adopting high-frequency soft-switching LLC power technology, the overall efficiency reaches 93%, while traditional chargers only achieve 50%-60%.
- The module is equipped with comprehensive protection functions, including input over/under voltage, input phase loss, output overcurrent, output over/under voltage, output short circuit, output isolation protection, and module overheating protection.
- With optimized thermal design for more uniform heat distribution; the internal circuit board is treated with shockproof, moisture-proof and dust-proof technology to improve operational reliability.
- This series is equipped with digital display function, which can real-time show charging current, voltage and charging time online.
- The charger adopts internal modular design, featuring wide input voltage range and high charging power.
- Fast charging speed, the full charging time only takes 2-3 hours.
