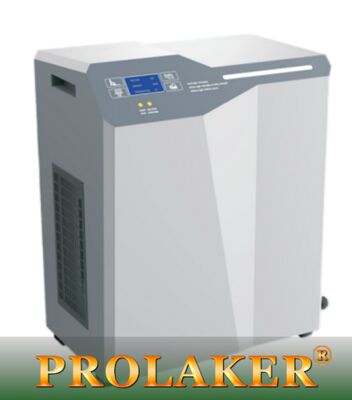

Heavy Duty 80V Industrial Forklift Lithium Battery Charger High Efficiency With Full Protection Functions
Product Details
| Model: | ESCH 80V 130A | Application: | Forklift Lithium Battery |
|---|---|---|---|
| Color: | Silver | Material: | Steel |
| Overall Dimension: | 607*281.4*511.6mm | Maximum Output Current: | 130A |
| Output Power: | 13000W | ||
| Highlight |
80V industrial forklift battery charger,Heavy duty lithium battery charger,High efficiency forklift charger with protection |
||
Product Description
Product description
The ESCH forklift battery charger typically refers to an industrial charger used to replenish the energy in forklift batteries. These chargers are often designed for heavy-duty environments, aiming to ensure optimal performance, efficiency, and longevity of forklift batteries.
Key Features
- Fully automatic lithium battery charger strictly follows the lithium battery charging characteristic curve during the whole charging process.
- The charger is built-in with Active Power Factor Correction (PFC), achieving zero pollution to the power grid and preventing large current impact on the grid.
- It adopts high-frequency soft switching (LLC) power technology, with the overall efficiency up to 93%, while traditional chargers only reach 50%-60%.
- The module is equipped with comprehensive protection functions: input overvoltage/undervoltage protection, input phase loss protection, output overcurrent protection, output overvoltage/undervoltage protection, output short circuit protection, output isolation protection, and module overheating protection.
- Adopting optimized thermal design for more uniform heat distribution; the internal circuit board is treated with shockproof, moisture-proof and dust-proof process to improve operational reliability.
- This series is equipped with digital display function, which can real-time show charging current, charging voltage and charging time on line.
- The charger adopts internal modular design, featuring wide input voltage range and high charging power.
- Fast charging speed, the full charging time only takes 2-3 hours.
Product Catalog
| Model | ESCH 80V 130A | ESCH 80V 150A | ESCH 80V 200A | |||
| Overall dimension | 607*281.4*511.6mm | |||||
| Maximum output current(A) | 130 | 150 | 200 | |||
| Output power(W) | 13000 | 15000 | 16000 | |||
| Input Power Supply | 380V土15% Four-wire | 380V土15% Four-wire | 380V土15% Four-wire | |||
| Maximum Output Voltage(VDC) | 100 | 100 | 100 | |||
| Compatible Battery Specification | 80V 400-600Ah lithium battery | |||||
| Maximum Efficiency | ≥94% | ≥94% | ≥94% | |||
| Output Voltage Regulation Accuracy | ±0.5% | ±0.5% | ±0.5% | |||
| Output Current Regulation Accuracy | ±1% | ±1% | ±1% | |||
| Operating Temperature | -40°C-50℃ | -40°C-50℃ | -40°C-50℃ | |||
| Vibration Resistance Grade | SAEJ1378 | |||||
| Cooling Method | Air Cooling | Air Cooling | Forced Air Cooling | |||
| Over Temperature Protection | 70℃ | 70℃ | 70℃ | |||
| Input Overvoltage Protection (VAC) | ＞530±10V | ＞530±10V | ＞530±10V | |||
| Input Undervoltage Protection (VAC) | ＜250±10V | ＜250±10V | ＜250±10V | |||
| Output Overvoltage Protection (VDC) | 105±5 | 105±5 | 105±5 | |||
| Output Overcurrent Protection (A) | >110% of Max Charging Current | |||||
| Output Short Circuit Protection | When output short-circuited, the charger shuts down automatically; it will self-recover after fault removal. | |||||
| Battery Reverse Polarity Protection | None | |||||
Product Display
