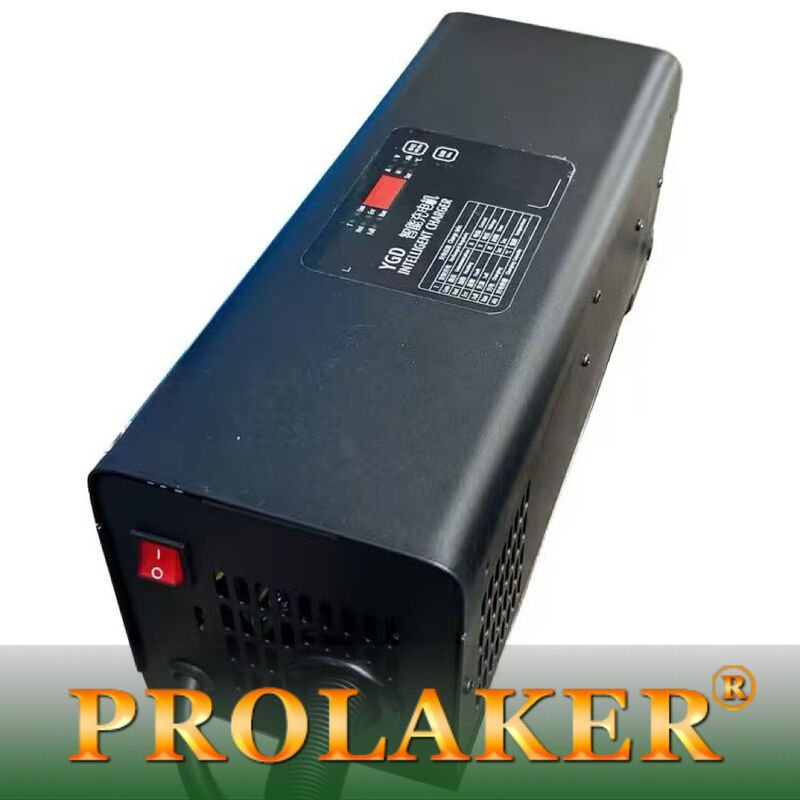

YGD-D30V/100A Three-Phase 220V Intelligent Lithium Battery Charger
Product Details
| Model: | YGD-D30V/100A | Rated Input Power Suppply: | Three-phase 220V 50Hz/60Hz |
|---|---|---|---|
| Maximum Output Current Of Charger: | 100A | Maximum Output Voltage Of Charge: | 30V |
| Protection Class: | IP21 | Overall Dimensions: | 452×171×180mm |
| Net Weight: | 10 | ||
| Highlight |
three-phase lithium battery charger,220V forklift battery charger,intelligent lithium battery charger |
||
Product Description
Product Description
The YGD series intelligent chargers incorporate a high-performance embedded charging control unit to regulate the charging voltage and current. Through parameter optimization in the main circuit module design, the chargers provide continuously adjustable charging currents catering to various lithium-ion batteries, thus addressing diverse charging process specifications. The charging controller comes with pre-programmed default charging profiles. Additionally, the charging controller can be programmed and store customized charging profiles based on specific user requirements, thus fulfilling tailored charging process requirements upon delivery.
The charging controller constantly monitors a variety of parameters throughout the charging process, thereby equipping the chargers with a comprehensive suite of protective functionalities to ensure a smooth and secure ongoing charging operation.
Product parameter
| Model | YGD-D30V/100A |
|
Rated input power supply
|
Three-phase 220V
50Hz/60Hz
|
|
Rated input power of charger
|
3.3 kVA |
|
Input current of charger
|
15.2A |
|
Maximum output current of charger
|
100A |
|
Maximum output voltage of charger
|
30V |
|
Means of communication
|
CAN/blind charging
|
|
Protection class
|
IP21 |
|
Overall dimensions
|
452×171×180
|
|
Net weight
|
10KG |
Key Features
1. Power failure protection for parameters setup: The system permanently stores user-defined parameter settings, so that they are not lost in the event of a power failure.
2. Parameters such as battery voltage, charging current, capacity, time, and operating status of chargers are clearly visible on nixie tubes;
3. Special charging functionality: Once the charging cable becomes disconnected mid-way through the charging cycle, the charger will automatically shut off (battery disconnection detection).
4. Protection feature: The charger boasts a range of protective features, guarding against malfunctions like open circuits, reversed connections, overcurrent, and overheating.
