HPT20i i-Hybrid Material Handling Truck 2000kg Electric Manual Dual Mode Zero Downtime

Name: HPT20i i-Hybrid Material Handling Truck 2000kg Electric Manual Dual Mode Zero Downtime
Brand: LAKER AUTOPARTS CO.,LIMITED
SKU: HPT20i
Price: 4,999.40 USD
Availability: InStock

Brand Name: PROLAKER

Model Number: HPT20i

Place of Origin: CHINA

Certification: CE/ISO9001

Minimum Order Quantity: Negotiable

Price: Negotiable

Supply Ability: 5000 units per month

Delivery Time: within 20 days

Payment Terms: T/T,Western Union

Standard Packaging: wooden pallet

3 Ton Hand Pallet Truck

Compact Hand Pallet Truck

Manual Hand Operated Pallet Jack

Product Details

Load Capacity:

2000kg

Fork Size:

1150/1220

Controller Type:

I50

Battery:

48V/15Ah

Highlight

2000kg electric hand pallet truck

dual mode material handling truck

i-Hybrid manual pallet truck

Product Description

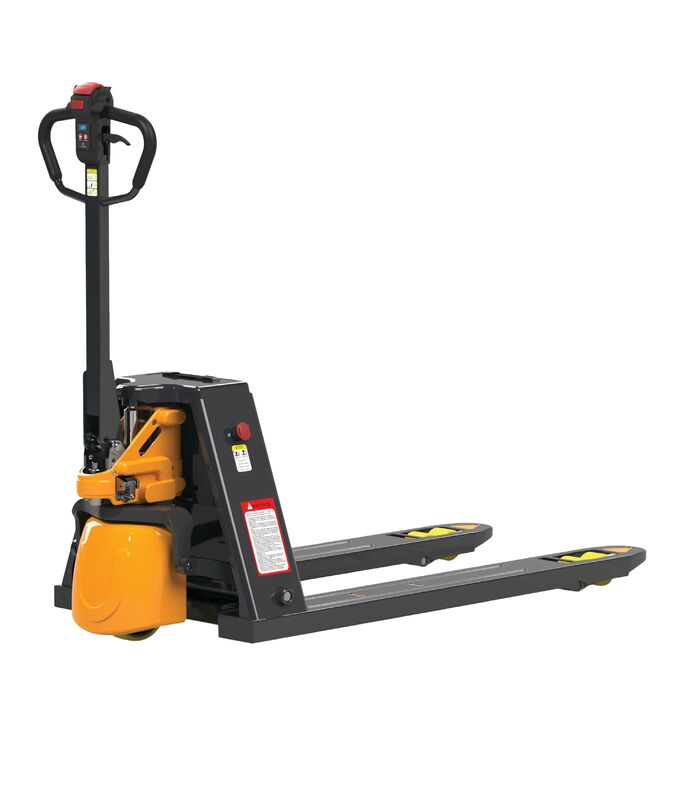

HPT20i i-Hybrid Material Handling Truck

The HPT20i is an intelligent i-Hybrid material handling solution engineered for 2-ton load carrying requirements, adopting a pedestrian operation mode that combines efficiency and flexibility for warehouse, workshop and various material handling scenarios. It features electric/manual dual-mode drive and lift with patented clutch technology, enabling seamless mode switching to achieve zero downtime during operation and an extra 30 minutes of uptime, maximizing work efficiency for continuous material handling tasks.

Equipped with a 0.75kW brushless drive motor and a 0.65kW lift motor, the HPT20i delivers higher energy efficiency and significant cost savings compared with conventional motors. Its power system is paired with a 48V/15Ah LFP lithium iron phosphate battery (48V/20Ah larger capacity optional), boasting free maintenance, fast charging in just 2-3 hours, and an outstanding cycle performance that retains 80% capacity after 2000 charge-discharge cycles. With a spare battery, it supports 8 hours of non-stop working, completely eliminating range anxiety for long-hour operations.

In terms of operation and display, the truck comes with an OLED screen as standard, which clearly shows running hours, battery level and fault codes, with one-touch switching for Turtle Mode and Upright Mode, real-time slope degree display and direct fault diagnosis for easy operation and quick troubleshooting. The optional 2.5" high-resolution I-Touch Screen features an efficient, intuitive and customizable interactive interface, digitally displaying mileage, approximate load weight, battery status, travel speed, and enabling one-click VNA mode and secure password setting for enhanced operational convenience and management safety. The tiller arm height is adjustable from 560mm to 1280mm, fitting operators of different heights and reducing working fatigue.

The HPT20i excels in structural and performance design with a rated load capacity of 2000kg (4400lbs) and a load center of 600mm, perfectly adapting to 800mm/1000mm standard pallets. It has a maximum gradeability of 8% when loaded and 20% when unloaded, leading the market with superior climbing performance for sloped working sites. The travel speed reaches 4.2km/h (2.6mph) under load and 4.5km/h (2.8mph) when unloaded, with an electromagnetic service brake for sensitive and stable braking, and an i50 controller for precise and reliable operation control. Its compact structural dimensions ensure excellent maneuverability in narrow spaces, making it an ideal intelligent work partner for light and medium material handling.

HPT20i Core Specifications

Item	Specification	Unit
Rated Load Capacity	2000 (4400lbs)	kg
Load Center	600 (24")	mm
Wheelbase	1202 (47.3")	mm
Minimum Turning Radius	1352 (53.2")	mm
Overall Height	587 (23.1")	mm
Lowered Fork Height	80 (3.15")	mm
Max Lift Height	200 (8")	mm
Tiller Arm Height Range	560 - 1280 (22" - 50.4")	mm
Ground Clearance	27 (1.1")	mm
Fork Size (L×S×e)	1150/1220×52×160 (45"/48"×2.05"×6.3")	mm
Aisle Width (1000×1200 Pallet, Crossways)	1980 (78")	mm
Aisle Width (800×1200 Pallet, Crossways)	1880 (74")	mm
Drive Motor	0.75kW Brushless	-
Lift Motor	0.65kW	-
Travel Speed (Loaded/Unloaded)	4.2/4.5 (2.6/2.8mph)	km/h
Max Gradeability (Loaded/Unloaded)	8%/20%	-
Service Brake	Electromagnetic	-
Controller Type	i50	-
Battery	48V/15Ah LFP (48V/20Ah optional)	-
Charger	48V/5A	-
