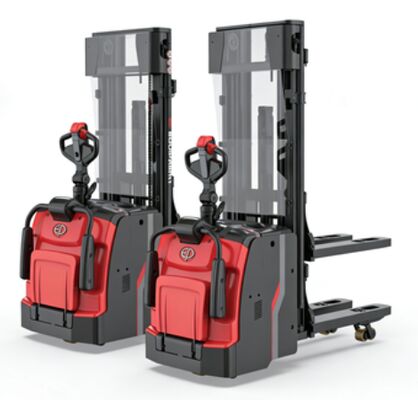

EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger
Product Details
| Operator Type: | Pedestrian | Load Capacity: | 1600kg |
|---|---|---|---|
| Tyre Type: | Polyurethane | Lift Height: | 2915mm |
| Highlight |
Heavy Duty Li-Ion Stacker,1600kg Li-Ion Stacker |
||
Product Description
Details
|
Model designation
|
RSL161 | RSL161i | ||
|
Drive
|
Electric
|
Electric
|
||
|
Load capacity
|
Q |
kg |
1600 | 2000 |
|
Load center distance
|
c | mm | 600 | 600 |
|
Service weight
|
kg | 1200 | 1340 | |
|
Lift height
|
h3 | mm | 2915 | 2915 |
|
Height, mast extended
|
h4 |
mm | 3425 | 3495 |
|
Initial lift
|
h5 | mm | / | 120 |
|
Length to face of forks
|
l2 | mm | 821 | 971 |
|
Overall width
|
b1/b2 | mm | 850 | 850 |
|
Fork dimensions
|
s/e/l | mm | 65×170×1150 | 60×185×1150 |
|
Turning radius
|
Wa | mm | 1560 | 1900 |
|
Max. gradeability, laden/unladen
|
% | 8/12 | 8/16 | |
|
Travel speed, laden/unladen
|
km/h | 9/11 | 9/11 | |
|
Lifting speed, laden/unladen
|
m/s | 0.2/0.26 | 0.2/0.26 | |
|
Lowering speed, laden/unladen
|
m/s | 0.4/0.36 | 0.4/0.36 | |
|
Battery voltage/nominal capacity
|
V/Ah | 24/205 | 24/205 | |
|
Energy consumption according to DIN EN 16796
|
kWh/h | 1.01 | 1.01 | |
|
Turnover output according to VDI 2198
|
t/h | 54.4 | 54.4 | |
|
Turnover efficiency according to VDI 2198
|
t/kWh | 37 | 37 |
Maximum Performance for Professiona Users
The RSL16l of standard version and lnitial liftingversion is the perfect choice for professional userswho require a high-performance electric stacker.lt'sdesigned for efficient material handling in largewarehouses and industrial environments whereoperators usually stack and transport goods overmedium to long distances. The RSLl6li allows forsmooth travelon uneven roads and double deckingcapability.
Designed around Lithium BatteryAdvantages
Equipped with a powerful 24V205Ah Lithium-ionbattery, the RSL series offers all the advantages oflithium technology which features a compact designand grants long operation, short downtime andextremely long battery life with no maintenancerequirement.The external charging plug makes thecharging process efficient and user-friendly- no needto open battery compartment and remove plugs anymore. And the full re-charge time can be less than 2hours.
Improved Foldable Operator Platform
The newly designed foldable operator platformenhances both comfort and maneuverability, makingthe RSL series ideal for both long-distance travelinlarge warehouses and usage in tight spaces. ltsshock-absorbing suspension ensures a smooth andstable ride, reducing operator fatigue over extendedshifts.When folded, the stacker becomes morecompact and easier to control,improvingmaneuverability between racks and narrow aisles
