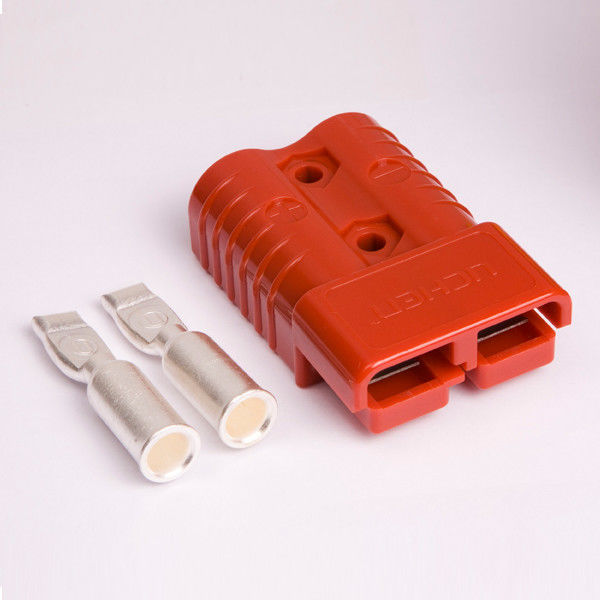

350A 600V Bipolar Forklift Battery Connector IP20

Brand Name: UC
Model Number: SC350
Place of Origin: CHINA
Certification: CE, UL, TUV
Minimum Order Quantity: Negotiable
Price: Negotiable
Supply Ability: 50000 pcs per month
Delivery Time: 5 days After Order Confirmation and Deposit
Payment Terms: L/C,T/T,Western Union
Standard Packaging: Carton
Tags

forklift battery plug

forklift charger connector

battery plug connectors

Product Details

Rated Voltage: 600V Rated Current: 350A
Main Material: The Shell: PC110U Terminals: T2 Silver Plated Protection Class: IP20
Highlight

350A forklift battery connector

,

600V bipolar battery connector

,

IP20 forklift battery parts

Product Description

  • Product Name: Bipolar quick plug connector
  • Product Model: SC350
  • Using Standard: Compliant with UL1977, ensuring alignment with globally recognized safety and performance benchmarks.
  • Rated Current: 350A, capable of handling high-power electrical transmission requirements in demanding scenarios.
  • Rated Voltage: 600V, suitable for medium to high-voltage power systems across industrial and commercial settings.
  • Operating Temperature Range: -20℃ to 105℃, enabling stable operation in diverse environmental conditions, from cold industrial environments to warm equipment enclosures.
  • Withstanding Voltage: 2500V DC, providing robust insulation and reliable protection against potential electrical hazards.
  • Protection Class: IP20, offering basic defense against solid objects to ensure safe and consistent operation.
  • Main Material: The shell is constructed from PC110U, a material known for its durability, impact resistance, and heat tolerance; terminals are made of T2 silver-plated material, ensuring excellent electrical conductivity and corrosion resistance for long-term reliability.
  • Color: Available in standard icon colors or can be customized according to specific customer requirements to enhance visibility and ease of identification.

350A 600V Bipolar Forklift Battery Connector IP20


Terminal Sizes:


  • SC50: Compatible with 10/12 AWG, 8 AWG, and 6 AWG cables.
  • SC175: Supports 4 AWG, 2 AWG, 1 AWG, and 0/1 AWG cables.
  • SC350: Designed for 2/0 AWG, 3/0 AWG, 4/0 AWG, and 300 AWG cables, accommodating a wide range of heavy-duty wiring needs in high-power applications.


Kit Set: Each connector is supplied with a matched handle and cover for convenient installation, secure operation, and added protection during use.

Product Strengths

  1. Environmental Safety: All battery charger connectors are manufactured as environmentally safe products, complying with relevant eco-friendly regulations to minimize environmental impact.
  2. Efficient Delivery: Committed to fast and reliable delivery timelines – stock items are shipped within 3-5 days, while customized products are delivered within 5-7 days upon receipt of T/T payment, ensuring timely support for project schedules.
  3. Customization Capability: Gladly accepts sample requests based on customer-provided drawings and specifications, allowing for tailored solutions to meet unique application requirements.
  4. Broad Compatibility: Battery charger connectors are 100% compatible with same-series products from other leading manufacturers, such as Yazaki, ensuring seamless integration into existing electrical systems.
  5. International Standard Compliance: Functions as an international standard component for electrical connectors and charging modes, suitable for electric vehicles, electric charging stations, and other related high-power applications.
  6. Rigorous Quality Inspection: Every AC/DC power connector undergoes 100% testing before delivery, verifying performance, safety, and reliability to meet strict quality criteria.
  7. ODM/OEM Support: Equipped to handle ODM and OEM orders, providing flexible solutions to match specific branding, design, or functional requirements.

Quality Management

We clearly recognize that product quality bears enormous responsibility for the safety of life and property, making quality management the most primary and ultimate responsibility of our business operations.


Our quality management systems are certified to ISO9001 and ISO/TS16949, ensuring systematic and consistent control over all production processes. As part of our long-term planning, the ISO14001 environmental management system is also 即将投入运行 (soon to be implemented), further enhancing our commitment to sustainable and responsible manufacturing practices.


Throughout the product realization process, our high-quality management system operates effectively, with all manufactured products subjected to the most rigorous testing and validation procedures. Every product represents our dedication to excellence and is designed to meet or exceed your specific requirements.


To further ensure product security, our connectors hold global safety certifications including UL, TUV, CE, CSA, SAA, PSE, NF, and BS, strictly following the quality control standards and requirements of countries worldwide. This comprehensive certification coverage provides peace of mind for customers across different markets and applications.
