Robust Static 120 Ton Forklift Hydraulic Solid Tire Press Machine
Product Details
| Material: | Steel Plate | Type: | Static Forklift Hydraulic Solid Tire Press Machine |
|---|---|---|---|
| Warranty: | 1 Year | Motor: | 4KW |
| Highlight |
120 Ton forklift tire press machine,Robust forklift tire press machine,Hydraulic forklift tire press machine |
||
Product Description
Product Details
| Model | TP120-E | |
| Capacity | tons | 120 |
| Max. Tyre | inches | 825-15/300-15 |
| Total Length | mm | 1300 |
| Total Width | mm | 600 |
| Total Height | mm | 2050 |
| Plate Diameter(inside-outside) | mm | 530-640 |
| Work Platform Ret Height | mm | 350 |
| Working Space | Mm | 1000*850 |
| Operating Pressure | Mpa | 15 |
| Cylinder Max. stroke | mm | 500 |
| Oil Tank Capacity | Liters | 90 |
| Electro-Motor | kw | 4.0(380V) |
| Weight | kgs | 1000 |
| Press Speed Time | min | 2 |

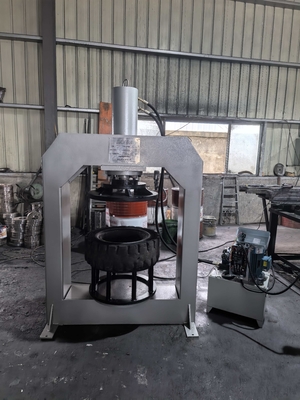

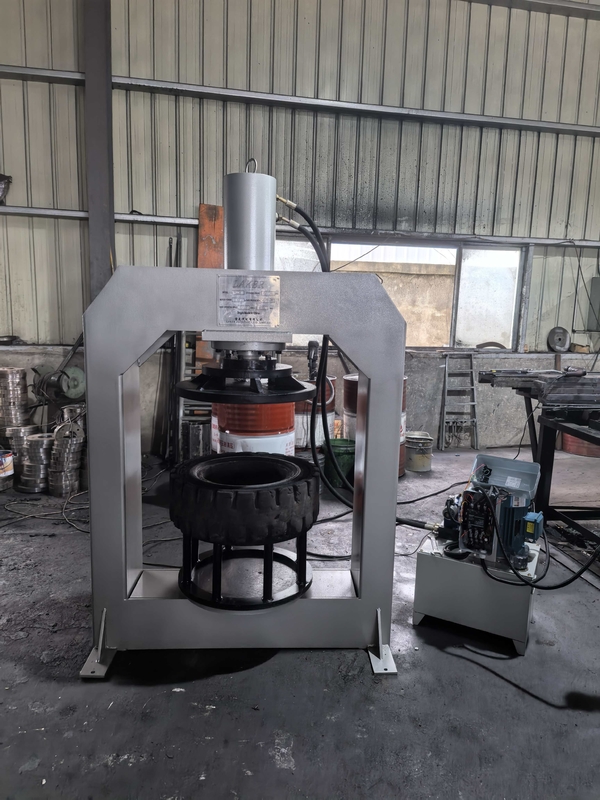

This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.
The hydraulic system of the machine consists of hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
High pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 21.5MPa.
Product Features
- Heavy duty frame: The construction is welded by large-scale beam and channel beam.
- High-grade Hydraulic Cylinder: The biston rod is grinded and hard-chromium plated.
- Easy pull and press into the rims.
- Voltage and phase customized according to different power supply.
Operation Safety Precautions
Product Highlights
