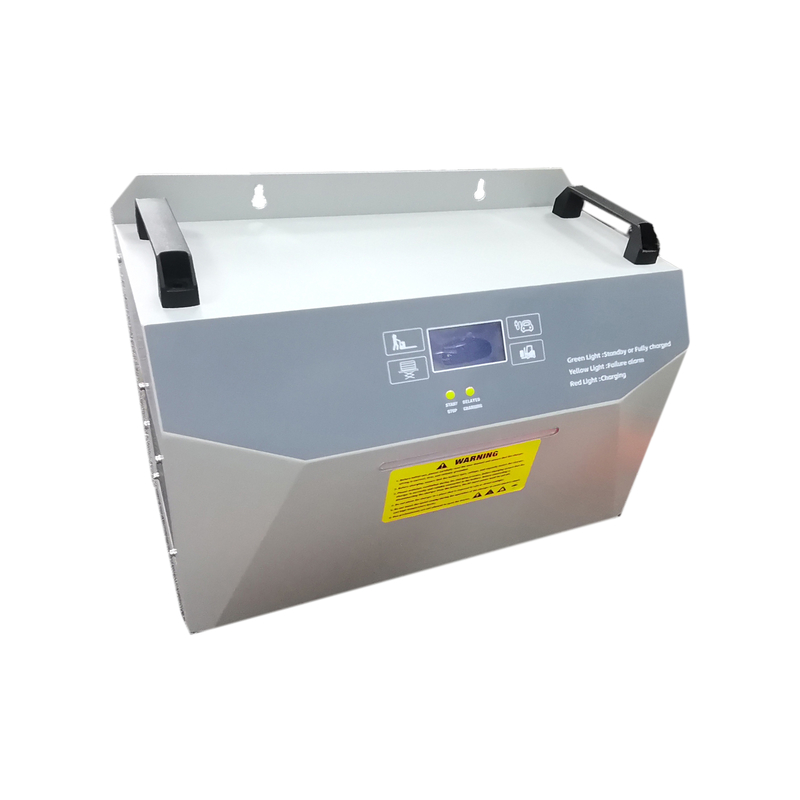

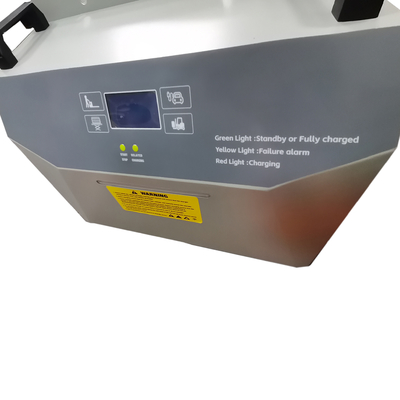

80A 48V High-Frequency Forklift Battery Charger with SCM Technology

High-Frequency Industrial Battery Charger

Application: Fork Lift(48v)

Model Name: ESCH48V/80A

Product Parameters

Product Specification

• Charger integrates active power factor correction(PFC), can achieve zero pollution of the power grid and avoid the impact of large current grid；
• Wide range of AC input voltage, strong adaptability；
• The module has the perfect protection function such as input over-voltage, lack of input, output over current, over voltage output, output short circuit, output isolation protection, module overheating and so on；
• The full-bridge phase-shifted soft switch PWM the latest mixed-mode control, to overcome the traditional phase-shifted full-bridge circuit circulation loss, working conditions of diode side faults, secondary-side diodes to achieve soft recovery, the module can achieve high efficiency over a wide input voltage range and the maximum load range. Efficiency;
• Close to 97%, the electromagnetic interference is greatly reduced, and the volume weight is greatly reduced;
• Improved thermal design, more uniform heat distribution;
• The use of a more complete circuit board dust, moisture-proof treatment;
• (high-frequency battery charger, high power battery charger)

Product Strength

• Long life expectancy and proven in service record
• Designed for use in harsh conditions
• Smart modular design for simple and cost-effective
• Highest efficiency, up to 97%
• Fast and simple installation, plug and play
• Cost-effective spare parts philosophy
• Large range of chargers to match your application and optimize efficiency
