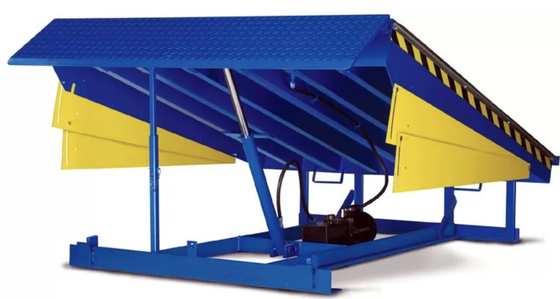

Heavy Duty 13 Ton Hydraulic Dock Leveler For Customized Platform In Industrial Loading Areas 2.2*2.5*0.6m
Product Details
| Load Capacity: | 13 Ton | Power Pack: | 1.1KW,380V |
|---|---|---|---|
| Nominal Size: | 2.2*2.5*0.6m | Platform: | Customized |
| Type: | Fixed Hydraulic Dock Ramp | ||
| Highlight |
Heavy duty Hydraulic Dock Leveler,13Ton Hydraulic Dock Leveler,2.2*2.5*0.6m Hydraulic Dock Leveler |
||
Product Description
Technical Parameters
| Product | Static Dock Leveler |
| Nominal Size | 2.2*2.5*0.6m |
| Load Capacity | 13Ton |
| Power Pack | 1.1KW,380V,50Hz,3Phase |
| Top Deck Thickness | 0.8mm checkered plate |
| Oil Cylinder | 2*70mm for lifting main plate |
| Control System | single push button control system |
| Bumper Size | 250*250*100mm |
| Surface Treatment | Powder coating,thickness 70-80 micrometer |
| Lip | 400mm,15mm thickness checkered plate |
Product Description
1.Hydraulic Dock Leveler is ideal for high usage dock areas.
2.The hydraulic design consists of a simple push of the button operation
3.The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck
4.When the deck reaches the raised position the lip automatically extends
5.The operator releases the "raise" button and the deck descends to rest on the trailer
6.The control box includes a red emergency stop button standard
7. When the truck pulls away, the deck descends to full down position, trips the limit switch, and returns automatically to the level cross traffic position
Safety Precautions:
(1)Telescopic steel toe guards on both sides
(2)Laminated bumper ×2pcs.
(3)Maintenance support rod x1PCS
Product Highlights
Technical Parameters Product Static Dock Leveler Nominal Size 2.2*2.5*0.6m Load Capacity 13Ton Power Pack 1.1KW,380V,50Hz,3Phase Top Deck Thickness 0.8mm checkered plate Oil Cylinder 2*70mm for lifting main plate Control System single push button control system Bumper Size 250*250*100mm Surface ...
