ES20-WA Electric Drive Stacker 2000kg Load Capacity For Smooth Warehouse Operations
Product Details
| Drive: | Electric | Operator Type: | Pedestrian |
|---|---|---|---|
| Load Capacity: | 2000kg | Tyre Type: | Polyurethane |
| Highlight |
2000kg Electric Drive Stacker,Easy Warehouse Handling Electric Stacker,Smooth Warehouse Electric Stacker |
||
Product Description
Features
- Performance
- The innovative AC system offers strongpower, accurate control,excellentperormance.
- High strength vertical gearbox, longerworking life.
- Low-noise but durable hydraulic unit.good quality cylinder as well as hoseensure the high reliability of hydraulicsystem.
- AP connector and durable electricwires greatly reduce malfunctions ofcomponents.

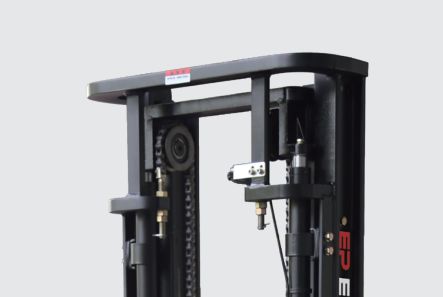

- CJ shape mast channel improves thestrength of the whole truck.
- Safety
- Safe hydraulic system design preventsmast from falling down abruptly whenhydraulic pipeline cuts off.
- Emergency reverse belly button protectsthe operator from getting hurt.

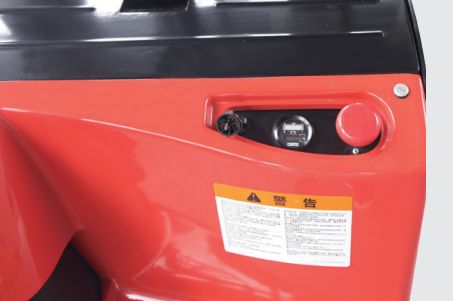

- Emergency disconnector will cut off powersource to avoid accident when truck goesout of control.Multiple lifting limit protection ensuressafety.
- Automatic switch to lower speed when thefork reaches its setting height.
- Anti-rolling back brake keeps the truckfrom skidding down when truck is out ofcontrol or travelling on ramp.Long aside tiller reduces operator’shazards.
- Operation

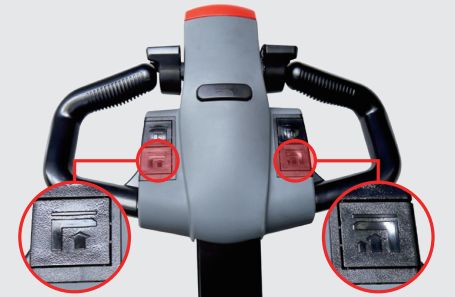

- With the new design of ergonomical tillerhead, all buttons can be reachedconveniently &comfortably.
- Creep speed function: when tiller is innear vertical position, the driving speedwill decrease automatically, allowingdelicate operation in confined space.
- Long tiller offers easier operation.Aside Operation, Greater View.
- Two-speed lowering offers betterstability and accuracy of goodsstacking.
- Maintenance
- AC traction motor, maintenance free.
- Vertical motor makes the inspection &service much more convenient.Control system allows easytrouble-shooting.
- Mast and chassis are assembledtogether, easy for maintenance.Low voltage cut off setting protectsbatteries.
| Load Capacity | 2000kg |
| Load center diatance | 600mm |
| Load distance,centre of drive axle to fork | 693mm |
| Wheelbase | 1305mm |
| Service weight | 1170kg |
| Axle loading,ladem front/rear | 850/2320kg |
| Axle loading,unladen front/rear | 780/390kg |
| Retracted mast height | 2020mm |
| Free lift | 100mm |
| Max.Lift Height | 3000mm |
| Wheels,number front/rear(x=drive wheels) | 1x+1/4 |
| Tread width,front/b10 | 538mm |
| Tread width,rear/b11 | 410mm |
| Height,mast extended | 3465mm |
| Height of tiller handle in drive position min./max(h14) | 715/1200mm |
| Height of Wheel arms | __ |
| Lowered height | 88mm |
| Overall length | 1940mm |
| Length to face of forks | 790mm |
| Overall width | 800mm |
