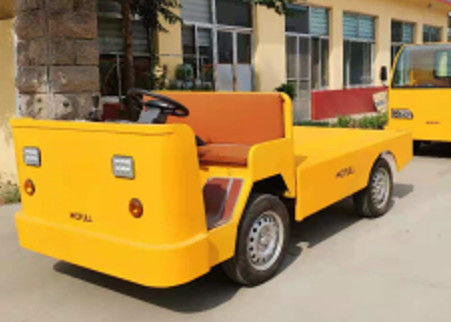

Intelligent Electric Control Low Speed Open Electric Vehicle Flatbed Trailer With 2 Seats And 60V/18A On-board Charger
Product Details
| Electric Control: | 60V AC Intelligent Electric Control | Battery: | 12V120AH Maintenance - Free |
|---|---|---|---|
| Motor: | Special AC Traction Motor For Liyuan | Charger: | On - Board Intelligent Charger: 60V/18A |
| Charging Time: | 8 - 10 Hours (with A Discharge Rate Of 90%) | ||
| Highlight |
Intelligent Electric Control Flatbed Trailer,On board charger Flatbed Trailer,2 Seats Flatbed Trailer |
||
Product Description
Product Specifications
| Technical Parameters | |
| Rated Occupancy | 2 Persons |
| (Length*Width*Height) | ≤3100*1200*1450 |
| Driving Range | 60-80km |
| Maximum Speed | ≥25-30km/h |
| Min. Turning Radius | 4.5km |
| Max. Climbing Gradient | 15% |
| Braking Distance | ≤2m |
| Steering System | Rack-and Pinion Steering System |
| Seats | Automobile cold-foam sponge+high-resilience fabric |
| Car Body Structure |
Steel Frame+Automobile-process inner and outer pressed shells,monocoque body. |
| Instrument | Digital LCD instrument (including voltage,speed,mileage,lights,front-rear direction change and other signals) |
| Rearview Mirrors | Manual external rearview mirrors |
| Lights and Signals |
Combined front lights,combined rear tail lights,electric horn and reverse beeper. USB+SD card slot |
| Audio | On-board MP3 player,professional loudspeaker |
| Front Axle | Monocoque integrated front axle |
| Driving Mode | Mid-mounted rear-wheel drive(4*2) |
| Steering System | Automobile-style Steering Column |
| Rear Axle | Leaf Spring Suspension+Integrated Rear Axle |
| Braking System | Four-wheel Drum Brakes,Dua-circuit Hydraulic Braking,Parking Brake Device |
| Tires | Automobile Tubeless Radial Tires 155-12LT Super-strengthened and Heavy -duty |
| Wheel Rims | Automobile Wide-width steel rims |
| Accessories | Tire Wrench,Jack |
| System Voltage | 72V |
| Motor Power | 4KW |
| Load Capacity/Tractive Force | 2000KG |
| Brakes | Four-wheel Hydraulic Brakes |
| Wheelbase | 1700 |
| Platform Ground Clearance | 650-700 |
Our Strength
- The vehicle can load baggage, parcel and bulk cargo in the airport, port and factories.
- Battery operated, environmental friendly, Zero emission.
- Guardrail three dimensional foldable with hinges.
- The whole platform can be customized to meet customer's requirements(Stainless steel plate or corrugated steel plate), the outside dimension can customize as well.
- Driving speed adjustable for safety driving.
Product Highlights
Product Specifications Technical Parameters Rated Occupancy 2 Persons (Length*Width*Height) ≤3100*1200*1450 Driving Range 60-80km Maximum Speed ≥25-30km/h Min. Turning Radius 4.5km Max. Climbing Gradient 15% Braking Distance ≤2m Steering System Rack-and Pinion Steering System Seats Automobile cold...
