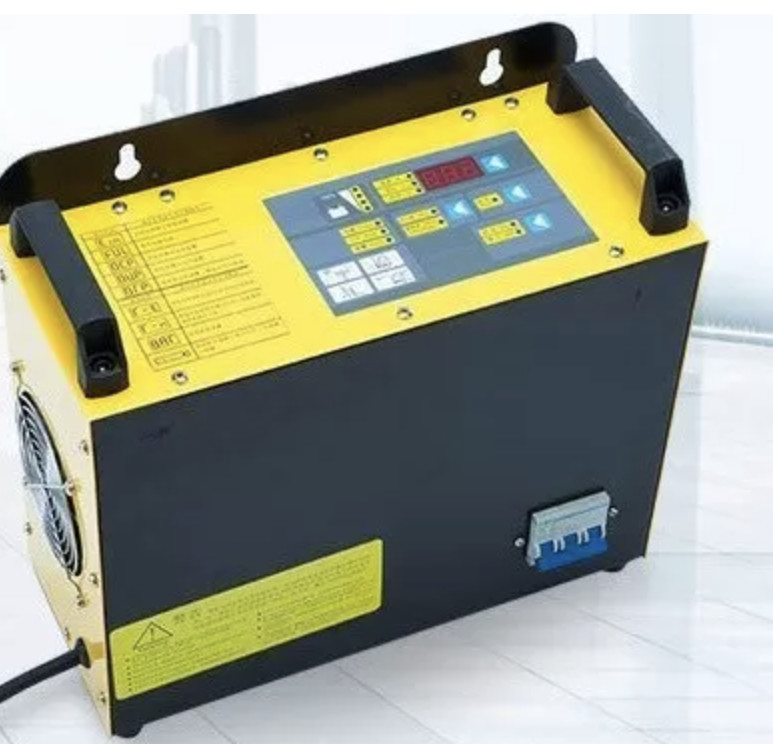

High Durability 48V 150A Forklift Battery Charger Three Phase High Frequency
Product Details
| Mode: | ESCH48V/150A | Technolog: | Single Chip Microcomputer (SCM) |
|---|---|---|---|
| Dimension: | 386*169*360mm | Max Efficiency: | 97% |
| Highlight |
High Frequency Forklift Battery Charger,Three Phase Forklift Battery Charger,150A Forklift Battery Charger |
||
Product Description
Using advanced three-phase high-frequency technology, the charging efficiency of this charger is greatly improved compared to traditional chargers. The ultra-large current output of 150A can quickly charge large-capacity forklift batteries, significantly shorten the charging time, and reduce the loss of production efficiency caused by equipment downtime. At the same time, it is also equipped with a complete multi-protection function, including over-current protection, over-voltage protection, short-circuit protection, etc., to fully guarantee the safety and reliability of the charging process. Even in high-intensity, long-term use environments, it can operate stably.
| Model | ESCH48V/65A | |
| Dimensions (mm) | Long * wide * high: 386*169*360 (mm) | |
| Output maximum current (A) | 150 | |
| Maximum power point (W) | 7200 | |
| Input voltage (VAC) | 380V±15% Three phase three wire +safe ground wire | |
| Output voltage (VDC) | Lead-acid battery:63V; VRLA:60V;(Customizable) | |
| Applicable battery voltage | 48V lead-acid battery pack, (Customizable, Lithium battery optional) | |
| Maximum efficiency | 97% | |
| Output voltage regulation precision | ±1% | |
| Output current accuracy | ±1% | |
| Working temperature | -30℃～-45℃ | |
| Classes of seismic measure | SAEJ1378 | |
| Cooling mode | Airblast cooling | |
| Over-temperature protection | 75℃±5 | |
| Input under-voltage protection (VAC) | <284~304 | |
| Output over-voltage protection (VDC) | 65V±1 | |
| Output over-current protection (A) | >110%*Maximum charge current | |
| Output short circuit protection | When the output is short-circuited, charger shutdown and automatic recovery after short-circuiting is solved. | |
| Battery reverse protection | Charger shutdown and alarm when the wire is connected reversely, it will automatically resume after wiring correctly. | |
Product Specification
- Charger integrates active power factor correction(PFC), can achieve zero pollution of the power grid and avoid the impact of large current grid；
- Wide range of AC input voltage, strong adaptability；
- The module has the perfect protection function such as input over-voltage, lack of input, output over current, over voltage output, output short circuit, output isolation protection, module overheating and so on；
- The full-bridge phase-shifted soft switch PWM the latest mixed-mode control, to overcome the traditional phase-shifted full-bridge circuit circulation loss, working conditions of diode side faults, secondary-side diodes to achieve soft recovery, the module can achieve high efficiency over a wide input voltage range and the maximum load range. Efficiency;
- Close to 97%, the electromagnetic interference is greatly reduced, and the volume weight is greatly reduced;
- Improved thermal design, more uniform heat distribution;
- The use of a more complete circuit board dust, moisture-proof treatment;
- (high-frequency battery charger, high power battery charger)
Product Strength
- Long life expectancy and proven in service record
- Designed for use in harsh conditions
- Smart modular design for simple and cost-effective
- Highest efficiency, up to 97%
- Fast and simple installation, plug and play
- Cost-effective spare parts philosophy
- Large range of chargers to match your application and optimize efficiency
Product Highlights
