Product Description
| Total Length |
80MM |
| Float Length |
62MM |
| Connection Tube |
6MM Plastic Tube |
| Compatible Battery |
24V,48V,80V etc. |
| Working Pressure |
0.2-2.5bar |
| Operating Temperature |
0℃-55℃ |
| T-Price"two sealing edges" |
| Item No. |
Filling level ±3mm |
Floater height |
L |
| 70074100 |
31 |
16 |
40 |
| 70074110 |
34 |
20 |
44 |
| 70074120 |
42 |
29 |
53 |
| 70074130 |
45 |
32 |
56 |
| 70074140 |
50 |
38 |
62 |
| 70074150 |
55 |
43 |
67 |
| 70074160 |
59 |
48 |
72 |
Product Features
▲No more need to fill electrolyte level with water by hand
▲Ensures a precise electrolyte level in every battery cell
▲Eased and more safe maintenance
▲No more spilling of water
▲Limited danger of acid corrosion
Function
The automatic watering system is mechanically operated and its characteristics have been completely approved by many customers after long-term service.
Our product has corresponding floaters according to different battery depth, and as the water level rises, the pressure closes the valve to prevent more water entering the cell, which can effectively stop the electrolyte from overflowing. Besides, the special material can effectively prevent the chance of damage or corrosion.
When it reaches the right water level, you can see the flow indicator through the lens on the top of the watering plug and you can measure the electrolyte temperature with convenience after the top cover is obliquely opened.
Not only the automatic watering system can keep the optimal water level of the battery cell, but also the unique design of the watering plug can make the inflowing pure water and the overflowed air transmit separately, which makes the air produced during the discharging process spilling over to assure the safety when using.

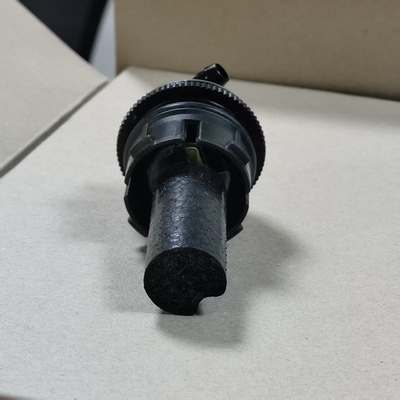

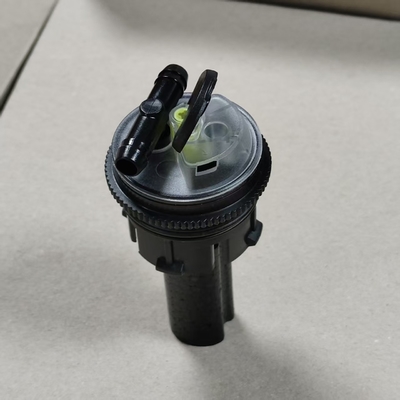

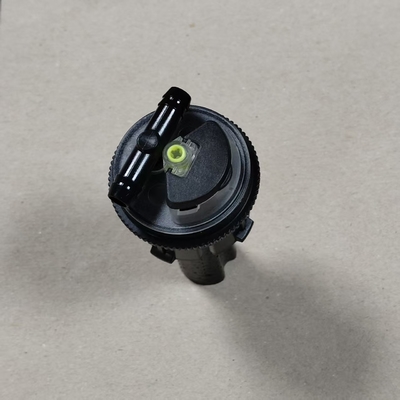

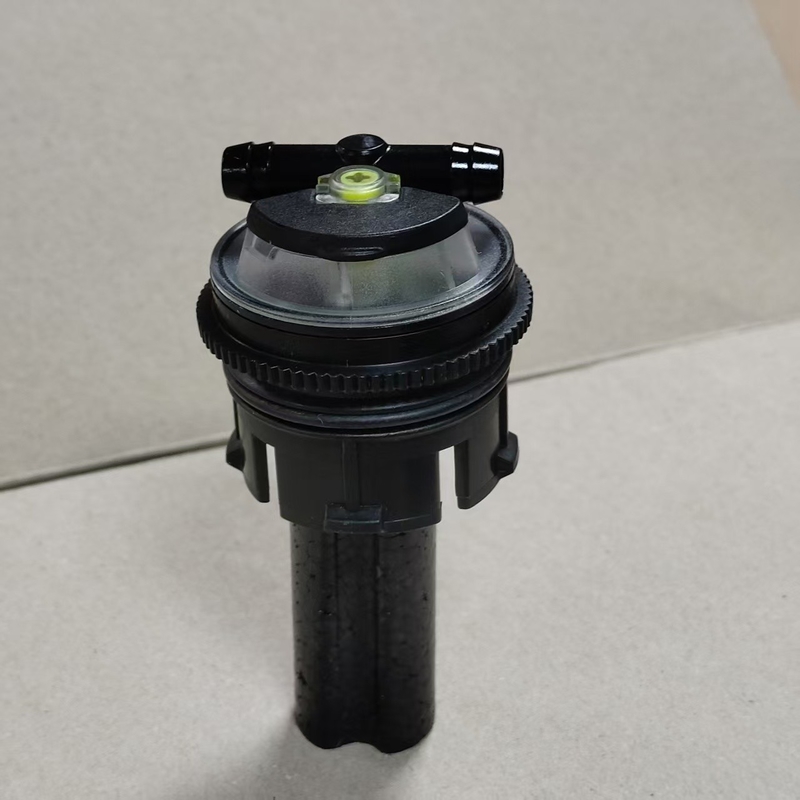

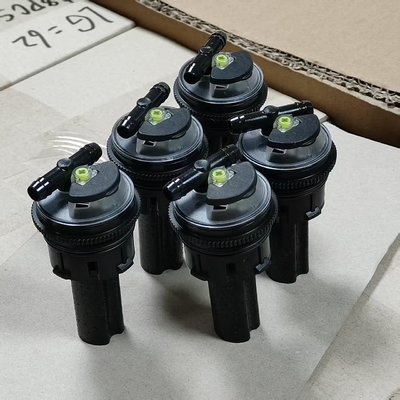

Product Display
