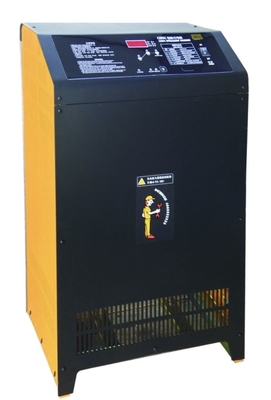

CE/ISO Certified CZB5C 48V 100A Battery Charger for Industrial Forkloift Lead Acid Battery
Product Details
| Type: | Forkloift Lithium Ion Battery Chargers | Output Voltage: | 48V |
|---|---|---|---|
| Ouput Current: | 100A | Battery Parameter: | 48V/580~800Ah |
| Size: | 526×360×882 Mm | Principle: | Rectifier |
| Highlight |
CZB5C Battery Charger,48V 100A Battery Charger |
||
Product Description
-
Features
CZB5C Series Intelligent Charger is the organic combination of leakage transformer, technology of Silicon-controlled rectifier and Microcomputer Control. This device could optimize Wsa+Pulse charging characteristic curve. As charge voltage of battery increases, charge current decreases automatically. Pulse charge would be performed before gas emissions or in late stage of recharge. On the premise of guarantee adequate battery power, this device would lower greatly internal temperature and reduce gas emissions of battery, prolong the life of battery effectively and raise the charging efficiency eventually.
The whole product has simple structure, convenient operation, complete functions and high efficiency.
-
Operating conditions
(1)No higher than 2000 meters in altitude.
(2)Ambient temperature between 10 and 40 degrees C.
(3)Relative humidity not exceed 85% for conditions of ambient temperature around 20℃ ±5℃.
(4)Store in a place free from conductive dust & the risk of explosion.
(5)Do not store in harmful atmosphere such as corrosive gas, insulating gas, steam.
(6)Store in a place free from rain & snow.
(7)Deviation from vertical shall be less than 5 degrees. Working situation without violent vibration and striking.
-
Technical data
