China Made Mini Small Electric Platform Stacker Fork Lift Forklift 2 Ton
Product Details
| Condition: | New | Max.lifting Height: | 3000mm, 4500mm, 1600mm, 3800/4000/4500/5000/5500mm, 2040 |
|---|---|---|---|
| Type: | Powered Pallet Truck, Manual Pallet Truck, Electric Reach Stacker, Electric Reach Forklift Truck, Powered Electric Stacker | After-sales Service Provided: | Overseas Service Center Available, No Overseas Service Provided, Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Min. Lifting Height: | 90mm, 85mm, 1600mm, 2014mm, 840 | Overall Dimensions: | 2450mm*1837mm*1090mm, 2660*1000*2014mm, 1700*800*1780, 2225/2620/2765*1100mm, 1780x740x2080mm |
| Power Souce: | AC Motor, DC Motor, Electric Stacker, Diesel Engine, DC Motor AC Motor Diesel Engine | Fork Width: | 100mm, 125mm, 680mm, 200-680, 1160mm |
| Fork Length: | 1070mm, 900/1070mm, 1150mm, 920mm, 1100mm/1220mm/ Customized | Rated Loading Capacity: | 1500kg, 2000kgs, 1000kg-1500kg, 350KG, 1000/2000kg |
| Warranty: | 1 Year, More Than 5 Years, One Year | Color: | Customer Demanded, Red, Green Or Customized, Yellow, Orange |
| Product Name: | Reach In Stock For Sale Manual Electric Stacker Forklift, Three Mast 1.5 T Electric Reach Stacker, Electric Reach Stacker, Pallet Stacker 1.5t Reach Semi Electric Hydraulic Stacker Forklift, Electric Forklift | Weight: | 1736(kg), 500kg, 765KGS, 2360kg, 2400kg |
| Loading Capacity: | 1500kg, 1000-2000 (kg) | Load Center: | 500 Mm, 600mm, 550mm |
| Lifting Height: | 3000mm, 2.5m--6.0m | Name: | Forklift, Electric Stacker |
| Highlight |
2 Ton Electric Platform Stacker,Mini Electric Platform Stacker,China Made Electric Platform Stacker |
||
Product Description
Product description
| Model | MJ20SQC(narrow body) | MJ20SQCH(Wide Body) | MJ20BSQC(Narrow Body) | MJ20BSQCH(Wide Body) |
| Power Type | Battery | Battery | Battery | Battery |
| Driving mode | Seated | Seat-type | Seat-type | Seat-type |
| Rated load(kg) | 2000 | 2000 | 2000 | 2000 |
| Load center distance(mm) | 600 | 600 | 600 | 600 |
| Overall weight, including battery(kg) | 7460 | 8140 | 7460 | 8140 |
| Lifting height(mm) | 4600~10000 | 4600~12500 | 4600~10000 | 4600~12500 |
| Length(mm) | 3830 | 3830 | 3830 | 3830 |
| Width(mm) | 980/1260 | 980/1400 | 980/1260 | 980/1400 |
| Fork size(mm) | 1100/100/50 | 1100/100/50 | 1100/100/50 | 1100/100/50 |
| Outside distance of forks(mm) | 250~890 | 250~890 | 250~890 | 250~890 |
| Width of stacking aisle, 800x1200 along forks(mm) | 1900 | 2100 | 1900 | 2100 |
| Turning radius(mm) | 2200 | 2200 | 2200 | 2200 |
| Traveling speed, full/no load(km/h) | 12/13 | 12/13 | 12/13 | 12/13 |
| Battery, voltage/rated capacity(V/Ah) | 48/600 | 48/600 | 80/460 | 80/460 |
MCC16 man-overboard three-way forklift truck
Product desplay

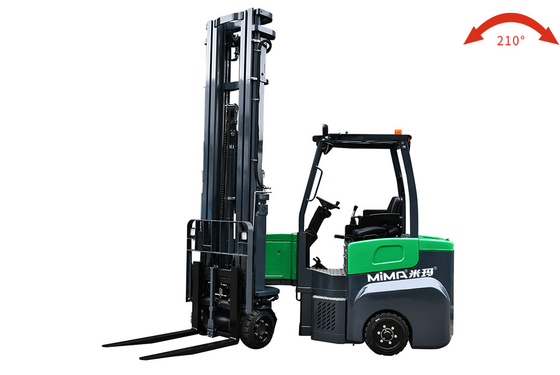

MJ Articulated Forklift Truck 2.0 tons
Narrow Aisle Forklift Truck Series
The new MJ series of high-performance articulated forklift trucks, covering both narrow and wide bodies, with a load capacity of 2 tons and a maximum lifting height of 12.5 meters, can be used both indoors and outdoors; they can satisfy medium and heavy-duty working conditions. At the same time, it pursues to meet the needs of customers for high working efficiency, high lifting speed and high traveling speed.
|Application Scenario
Narrow aisle intensive warehousing, high capacity warehouses.
Low lift model is suitable for low height intensive storage, internal and external transportation.
Workplaces and aisles where general trucks cannot meet the operational requirements.
Product Features
Lifting height up to 12.5 meters
Rated load of 2 tons, lifting height up to 12.5 meters, lifting 3.3 meters without loss of load.
High operating efficiency
Equipped with one character laser and front cross laser, providing accurate direction indication.
Provides accurate orientation indication and high operational efficiency.
Ultra-narrow aisle down to 1.9 meters
With a gantry swing angle of up to 210°, the stacking aisle is only 1.9 meters, increasing storage capacity by 50%.
Ergonomic design
The steering wheel is adjustable, the seat is adjustable fore and aft, and the backrest is adjustable.
Adjustable steering wheel, adjustable seat front and rear, adjustable backrest, all can be adjusted according to the driver's weight.
One-stop transportation inside and outside the warehouse
Solid rubber tires, adapting to various complex road conditions, one-stop handling and stacking inside and outside the warehouse.
Safer operation
Equipped with wireless high-definition camera system, providing
The wireless high-definition camera system provides the whole visualization service for the operator and ensures the safety.
Product Highlights
