New 1 Ton Electric Pallet Truck Stacker For Warehouse
Product Details
| Condition: | New | Max. Lifting Height: | 3000mm, 4500mm, 1600mm, 3800/4000/4500/5000/5500mm, 2040 |
|---|---|---|---|
| Type: | Powered Pallet Truck, Manual Pallet Truck, Electric Reach Stacker, Electric Reach Forklift Truck, Powered Electric Stacker | After-sales Service Provided: | Overseas Service Center Available, No Overseas Service Provided, Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Min. Lifting Height: | 90mm, 85mm, 1600mm, 2014mm, 840 | ||
| Highlight |
Warehouse Electric Pallet Truck Stacker,1 Ton Electric Pallet Truck Stacker,New Electric Pallet Truck Stacker |
||
Product Description
Product description
PRODUCT

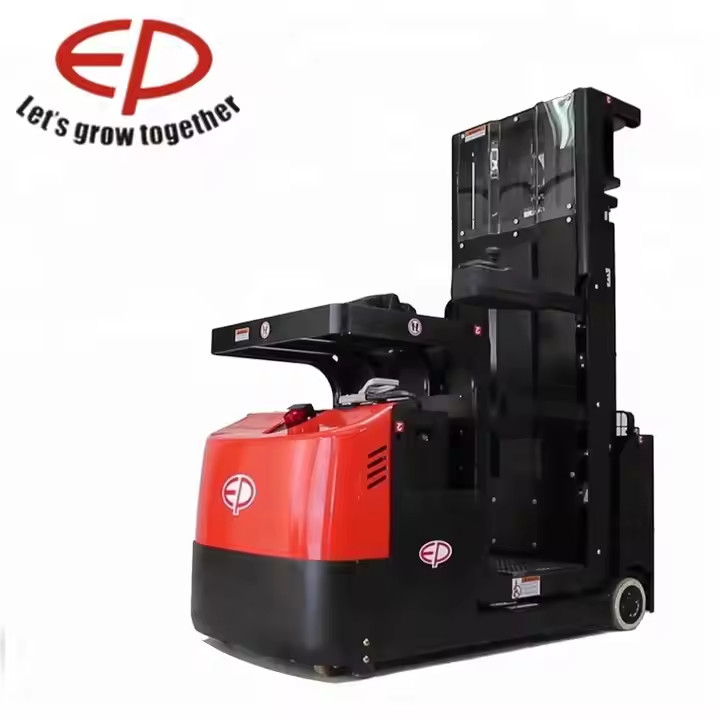

The JX1 vertical order picker helps you increase productivity in your warehouse while reducing the risk of injuries. With its heavy duty, stable mast and a large working platform, the JX1 order picker will give your employees the safety they need to work efficiently.
| Manufacturer | EP | EP | ||
| Model designation | JX2-4(3200) | JX2-4(3600) | ||
| Drive | Electric | Electric | ||
| Operator type | Order-picker | Order-picker | ||
| Load capacity | Q | kg | 1000/ 136 | 1000/ 136 |
| Load center distance | c | mm | 600 | 600 |
| Load distance ,centre of drive axle to fork | x | mm | 115 | 115 |
| Wheelbase | y | mm | 1365 | 1365 |
| Service weight | kg | 1900 | 1965 | |
| Axle loading,laden from /rear | kg | 2170/730 | 2205/760 | |
| Axle loading, unladen front/rear | kg | 730/1170 | 730/1120 | |
| Tyre type | Polyurethane/Solid rubber | Polyurethane/Solid rubber | ||
| Tyre size, front | mm | Φ165× 120 | Φ165× 120 | |
| Tyre size, rear | mm | Φ260× 105 | Φ260× 105 | |
| Additional wheels (castor wheels) | mm | Φ74×48 | Φ74×48 | |
| Wheels , number front/rear (x=drive wheels) | mm | 1x ,2/2 | 1x ,2/2 | |
| Tread width, front | b10 | mm | 770 | 770 |
| Tread width, rear | b11 | mm | 570 | 570 |
| Retracted mast height | h1 | mm | 2170 | 2360 |
| Free lift | h2 | mm | —— | —— |
| Lift height | h3 | mm | 3200 | 3600 |
| Height , mast extended | h4 | mm | 5410 | 5975 |
| Height of overhead guard (cabin) | h6 | mm | 2270 | 2270 |
| Seat height/standing height | h7 | mm | 220 | 220 |
| Stand height , elevated | h12 | mm | 3360 | 3815 |
| Lowered height | h13 | mm | 63 | 63 |
| Overall length | L1 | mm | 2750 | 2750 |
| Length to face of forks | L2 | mm | 1680 | 1680 |
| Overall width | b1/b2 | mm | 860 | 860 |
| Fork dimensions | s/e/l | mm | 40/ 100/ 1070 | 40/ 100/ 1070 |
| Distance between fork-arms | b5 | mm | 540 | 540 |
| Ground clearance, center of wheelbase | m2 | mm | 50 | 50 |
| Aisle width for pallets 1000× 1200 crossways | Ast | mm | 3100 | 3100 |
| Aisle width for pallets 800× 1200 crossways | Ast | mm | 3150 | 3150 |
| Turning radius | Wa | mm | 1600 | 1600 |
| Travel speed, laden/unladen | km/h | 8月8日 | 8月8日 | |
| Lifting speed, laden/unladen | m/s | 0. 13/0. 16 | 0. 13/0. 16 | |
| Lowering speed,Laden/unladen | m/s | 0. 16/0. 18 | 0. 16/0. 18 | |
| Max . gradeability , laden/unladen | ％ | 0 | 0 | |
| Service brake | Electromagnetic | Electromagnetic | ||
| Drive motor rating S2 60 min | kw | 4 | 4 | |
| Lift motor rating at S3 15% | kw | 3 | 3 | |
| Battery voltage/nominal capacity | V/Ah | 24/360 | 24/360 | |
| Battery weight | kg | 330 | 330 | |
| Type of drive control | AC | AC | ||
| Steering design | Electronic | Electronic | ||
| Sound pressure level at the driver's ear | dB(A) | 70 | 70 |
electric forklift better safety warehouse counterbalance prices intelligent backloader fork truck-core engine motor
APPLICATION
The JX1 can elevate an operator up to as much as 4880mm, turn around in as little as 1385mm,
and can be driven while lifted and diagonally to move from task to task.Travel is provided
by a high efficiency AC drive motor that can be programmed through the onboard LCD dash,
while power comes from a 224AH AGM maintenance free battery pack that supports
opportunity charging from a standard 230V outlet. Optional a bigger size industrial battery
with external charger is available
Unique
EP UNIQUE
The JX1 vertical order picker from EP Equipment is a unique product. Positioned between low level order picker, ladders and extremly cost intense VNA trucks, the JX1 order picker gives you the ability to pick products at a hight of up to 6,5 meters while using a compact, and very stable truck at a reasonable price level. Designed for the E-Commerce and small goods picking environment this product will help you improve productivity and increase safety in the warehouse and in shopfloor aisles.
Q1), How about the Maintenance?
A1: EPT20-15ET runs on industry standard, Curtis controller that can be serviced by any forklift service company near you .
Q2), Does have Li-on Type?
A2: Yes, EP have List Products, So may you wonder to know what is EP List ?
1), Integrated truck desigh with Li battery .
2), Smart the battery as Data Control .
3), Plug in/ Out parts design make Smart Services
Q3), And may you wonder to know How about EP after-sales Services ?
A3: Four ways;
1), Overseas service center available , EP have EU branch in Belgium , Japan Branch ....
Customers can submit their quality claim, ask technique help, Tracking their forklifts and Order spare parts online easily, All this will be replied by EP service man within 24hours
