1.5 Ton 2 Ton Electric Lift Pallet Stacker 1474mm Wheelbase
Product Details
| Dimensions: | Varies By Model | Weight: | 750kg |
|---|---|---|---|
| Maximum Load Capacity: | 2,000 Lbs | Lift Motor: | DC 24V/2.2kW |
| Max Travel Speed: | 6km/h | Load Capacity: | 1T-1.5T*600mm |
| Package Size: | 1800.00cm * 800.00cm * 2300.00cm | Lifting Motor: | 2.2KW |
| Charger Voltage: | 110V | Type: | Stacker |
| Lowering Speed: | 0.2-0.4m/s | Ground Clearance: | 30 Mm |
| Capacity: | 1500kg | Travel Speed: | 5.5km/h |
| Drive System: | AC Motor | ||
| Highlight |
2 Ton Electric Lift Pallet Stacker,1.5 Ton Electric Lift Pallet Stacker,1474mm Wheelbase Electric Lift Pallet Stacker |
||
Product Description
Product description

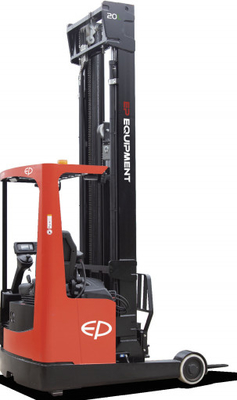

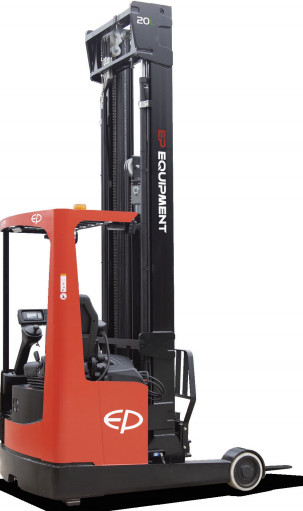

CQD16/20L
Electric Reach Truck 1.6/2.0T
| Manufacturer | EP | |||
| Model designation | CQD16L | |||
| Drive | Electric | |||
| Operator type | Order-picker | |||
| Load capacity | Q | kg | 1600 | |
| Load center distance | c | mm | 600 | |
| Load distance ,centre of drive axle to fork | x | mm | 390 | |
| Wheelbase | y | mm | 1474 | |
| Service weight | kg | 2840 | ||
| Axle loading,laden from /rear | kg | 1840/1060 | ||
| Axle loading, unladen front/rear | kg | 1500/3040 | ||
| Tyre type | Polyurethane | |||
| Tyre size, front | mm | Φ260× 105 | ||
| Tyre size, rear | mm | Φ254× 114 | ||
| Additional wheels (castor wheels) | mm | Φ102×51 | ||
| Wheels , number front/rear (x=drive wheels) | mm | 1x /2 | ||
| Tread width, front | b10 | mm | - | |
| Tread width, rear | b11 | mm | 974 | |
| Retracted mast height | h1 | mm | 2780 | |
| Free lift | h2 | mm | 1522 | |
| Lift height | h3 | mm | 6500 | |
| Height , mast extended | h4 | mm | 7525 | |
| Height of overhead guard (cabin) | h6 | mm |
2153 |
|
| Seat height/standing height | h7 | mm | 1050 | |
| Stand height , elevated | h8 | mm | 277 | |
|
Height of wheel arms |
h13 | mm | 2434 | |
| Overall length | L1 | mm | 1330 | |
| Length to face of forks | L2 | mm | 1080/1090 | |
| Overall width | b1/b2 | mm | 277 | |
| Fork dimensions | s/e/l | mm | 40/ 100/ 1070 | |
| Distance between fork-arms | b5 | mm | 2A | |
| Ground clearance, center of wheelbase | m2 | mm | 872 | |
| Aisle width for pallets 1000× 1200 crossways | Ast | mm | 200-655 | |
| Aisle width for pallets 800× 1200 crossways | Ast | mm | 750 | |
| Turning radius | Wa | mm | 590 | |
| Travel speed, laden/unladen | km/h | |||
| Lifting speed, laden/unladen | m/s | 0. 13/0. 16 | ||
| Lowering speed,Laden/unladen | m/s | 0. 16/0. 18 | ||
| Max . gradeability , laden/unladen | ％ | 0 | ||
| Service brake | Electromagnetic | |||
| Drive motor rating S2 60 min | kw | 4 | ||
| Lift motor rating at S3 15% | kw | 3 | ||
| Battery voltage/nominal capacity | V/Ah | 24/360 | ||
| Battery weight | kg | 330 | ||
| Type of drive control | AC | |||
| Steering design | Electronic | |||
| Sound pressure level at the driver's ear | dB(A) | 70 |
Product desplay
Optimal visibility
A much more compact li-ion battery comes with better visibility for CQD16L/20L. Along with the offset layout of the oil tubes, CQD16L/20L stacking visibility and operation flexibility are greatly improved.
Easy and precise operations
CQD20L is equipped with an mechanic height indicator, that tells operators the correct height of the fork at various rack levels for precise operations to improve the stacking efficiency.
High stability
The low center of gravity and the newly I-beam mast design enhance the truck stability. The maximum lifting height of CQD16L is 8000 mm while the one of CQD20L is 12000 mm.
Electric Power Steering
CQD16L and CQD20L come with full AC motors and electric power steering system that consumes less power compared to hydraulic power steering while keeps operation habits of trucks with mechanical steering through the additional damping force. So CQD16L and CQD20L give more working hours than ones with hydraulic power steering.
Full-color Display
CQD16L and CQD20L are designed with a color display to help operators easily monitor battery charge level, driving speed, and check error codes.
Q1), How about the Maintenance?
A1: EPT20-15ET runs on industry standard, Curtis controller that can be serviced by any forklift service company near you .
Q2), Does have Li-on Type?
A2: Yes, EP have List Products, So may you wonder to know what is EP List ?
1), Integrated truck desigh with Li battery .
2), Smart the battery as Data Control .
3), Plug in/ Out parts design make Smart Services
Q3), And may you wonder to know How about EP after-sales Services ?
A3: Four ways;
1), Overseas service center available , EP have EU branch in Belgium , Japan Branch ....
Customers can submit their quality claim, ask technique help, Tracking their forklifts and Order spare parts online easily, All this will be replied by EP service man within 24hours
