Quality Sturdy Mobile Manual Hand Pallet Jack Easy Use factory
>

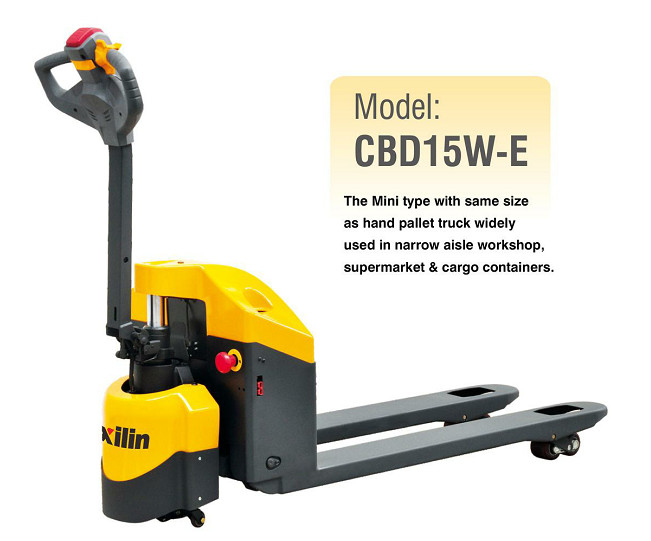

Sturdy Mobile Manual Hand Pallet Jack Easy Use

Brand Name: Laker
Model Number: CBD15W-E
Place of Origin: China
Certification: ISO&ECE
Minimum Order Quantity: 1
Price: Negotiable
Supply Ability: 100 Pieces Per Month
Delivery Time: 1-5 pieces 25-30 working days. 10 pieces bulk order 35-40 days
Payment Terms: T/T, Western Union, ,
Standard Packaging: Carton, Wooden Pallet

Product Details


Highlight

Manual Mobile Hand Pallet Jack

,

Sturdy Mobile Hand Pallet Jack

,

Easy Use Mobile Hand Pallet Jack

Product Description

small mini hydraulic hand manual self loading portable electrical forklift portable price montaca



Product parameters

model
unit
CBD15W-E
Drive mode

Electric
Driving mode

Walking style
Rated load
Q(kg)
1500
Load center distance
c(mm)
600
Dead weight (with battery)
kg
205 179
wheel

polyurethane
Wheel size, front wheel
mm
Φ195X70
Wheel size, rear wheel
mm
Φ80X93(70)/Φ74X93(70)
Wheel, front and rear quantity (x=drive wheel)

1X-2/2(4)
Lifting height
h3(mm)
190/180
Minimum/maximum height of operating handle in drive position
h14(mm)
700/1250
Overall length
h(mm)
1654/1724
Fork face length
12(mm)
504
Width of car body
b1(mm)
685/562
Fork size
s/e/l(mm)
53/160/1150(1220)
Outer width of fork
bs(mm)
520/550/685
Wheelbase center ground clearance
m2(mm)
32/22
Passage width, pallet 1000x1200 (1200 across fork)
Ast(mm)
2260/2328
Passage width, pallet 800x1200 (1200 placed along fork)
Ast(mm)
2128/2365
Turning radius
Wa(mm)
1454/1524
Road speed, full load/no load
Km/h
4.3/4.8
Lifting speed, full load/no load
mm/s
25/30
Lowering speed, full load/no load
mm/s
35/25
Maximum gradeability, full load/no load
%
5/20
service brake

Electric braking
Battery voltage/rated capacity
V/Ah
24/65(storage battery)

Product display

Sturdy Mobile Manual Hand Pallet Jack Easy Use

Sturdy Mobile Manual Hand Pallet Jack Easy Use

Product advantages Integrated design of electrical components; The whole vehicle has the characteristics of compact structure, flexible and compact, convenient maintenance, etc; The upper horizontal driving wheel is used to facilitate the replacement of motor and wheel, and the maintenance is convenient; Integral rocker arm design, smooth driving, high structural strength; The floating balance wheel mechanism can effectively prevent the side sway of the car when it is walking, The car runs smoothly; Turtle speed upright walking function.



Specification

Sturdy Mobile Manual Hand Pallet Jack Easy Use

Sturdy Mobile Manual Hand Pallet Jack Easy Use

Sturdy Mobile Manual Hand Pallet Jack Easy Use

Sturdy Mobile Manual Hand Pallet Jack Easy Use







Sturdy Mobile Manual Hand Pallet Jack Easy Use

About Us

LAKER AUTO PARTS CO., LIMITED is your one-stop shop for parts and accessories for forklifts, low-speed electric vehicles, and auxiliary material handling equipment. We guarantee high-performance products at competitive prices.

Our Core Products Include:

  1. Lead Acid Batteries for electric forklifts and vehicles.
  2. Intelligent automatic battery chargers (industrial frequency and high frequency).
  3. Solid tires (regular black and non-marking) for small working fields and warehouses.
  4. Hydraulic solid tire press machines for tire mounting and dismounting.
  5. Mobile loading ramps and fixed dock levelers for container loading.
  6. Low-speed electric vehicles (1-3 tons) for warehouse, airport, and port delivery.
  7. A variety of battery accessories (battery plates, gauntlets, connectors, watering systems, safety valves, vent plugs, cables, etc.).
  8. Various golf carts and sightseeing vehicles.

At LAKER, we are committed to providing comprehensive service from the initial quote to final delivery. Our dedication to quality, expertise, and product availability has made us a trusted partner for our customers.

All forklift-related products are sourced from top manufacturers under our brands MYING and LAKER. Our skilled technicians are always available for online technical support and aftermarket solutions.



Join Us in Powering the Future!

We strive to enrich our catalog with environmentally friendly maintenance products for material handling equipment. Given the opportunity, we are eager to demonstrate our advantages and grow together, establishing a long-term and friendly business relationship with your esteemed company.



Power Your Lift, Lift Our Future—You Can Depend On Us!

Sturdy Mobile Manual Hand Pallet Jack Easy Use

FAQ

Q1: How long is the warranty of your products?
A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.

Q2:What payment terms do you accept?
A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.

Q3:How long can I get my order finished?
A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.

Q4:Can you customize the configuration/logo/lable/color according to our requirements?
A:Yes.

Q5:Do you accept small order?
A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case



Product Highlights

small mini hydraulic hand manual self loading portable electrical forklift portable price montaca Product parameters model unit CBD15W-E Drive mode Electric Driving mode Walking style Rated load Q(kg) 1500 Load center distance c(mm) 600 Dead weight (with battery) kg 205 179 wheel polyurethane Wheel ...
