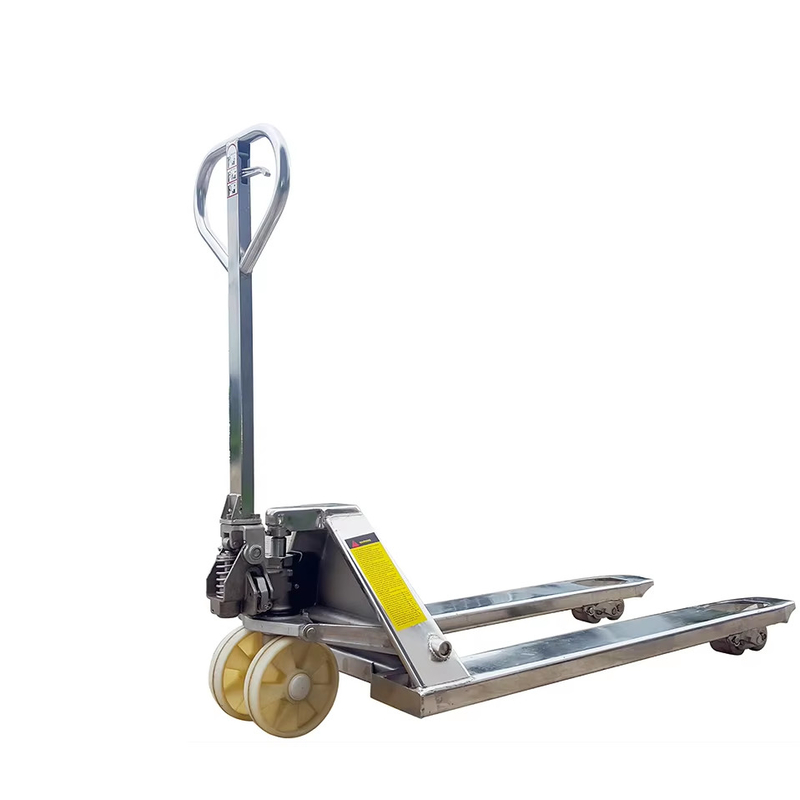

2.5 Ton Hydraulic Hand Carry Pallet Truck Stainless Steel
Product Details
| Highlight |
2.5 Ton Pallet Truck,2.5 Ton Hand Carry Pallet Truck,Stainless Steel Hand Carry Pallet Truck |
||
|---|---|---|---|
Product Description
Product parameters
| Specifications | |||
| Ltem | Model | ||
| CBY-111 | |||
| Cpacity | KG | 2000/2500/3000 | |
| Fork Width | MM | 540/685 | |
| Fork length | MM | 1100/1150/1220 | |
| Single Fork Size(Width*Thickness) | MM | 160*60 | |
| Max,lifting height | MM | 195 | 185 |
| Lowered fork height | MM | 85 | 75 |
| Loaded wheel | MM | 180*50 | |
| Front wheel | Single wheel (80*93)/double wheel | ||
| Material of wheel | Nylon/rubber | ||
| Net weigh | KG | 65-75 | |
| Packing Qty(20 feet container) | SETS | 180(Fork with 550MM or less) | 144(Fork wide 685MM) |
Product display
1.Highly balanced reinforced frame and pallet fork
2.High quality integrated casting oil cylinder
3.Oil cylinder with constant flow valve ensures balanced down of goods in heavy load
4.Integrated casting frame,double front wheels with strong loading capacity.
Specification
With pressure relief valve and overload valve to help prevent pump damage when load exceeds weight limit.
Nylon steering wheel and fork rollers are standard option for damp or harsh environment applications.
