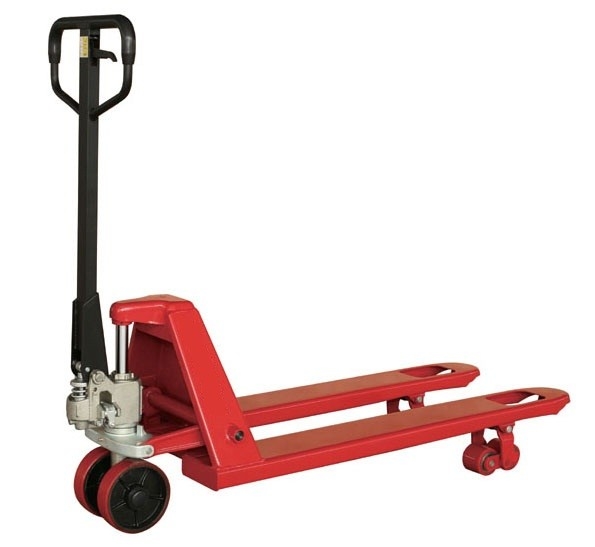

China Factory Manual Hydraulic Hand Pallet Truck 3 Ton Heavy Duty
Product Details
| Highlight |
China Factory Hand Pallet Truck,3 Ton Hand Pallet Truck,Heavy Duty Hand Pallet Truck |
||
|---|---|---|---|
Product Description
china factory manual hydraulic 3 ton heavy duty
Product parameters
| Specifications | |||
| Ltem | Model | ||
| CBY-111 | |||
| Cpacity | KG | 2000/2500/3000 | |
| Fork Width | MM | 540/685 | |
| Fork length | MM | 1100/1150/1220 | |
| Single Fork Size(Width*Thickness) | MM | 160*60 | |
| Max,lifting height | MM | 195 | 185 |
| Lowered fork height | MM | 85 | 75 |
| Loaded wheel | MM | 180*50 | |
| Front wheel | Single wheel (80*93)/double wheel | ||
| Material of wheel | Nylon/rubber | ||
| Net weigh | KG | 65-75 | |
| Packing Qty(20 feet container) | SETS | 180(Fork with 550MM or less) | 144(Fork wide 685MM) |
Product display
1.Highly balanced reinforced frame and pallet fork
2.High quality integrated casting oil cylinder
3.Oil cylinder with constant flow valve ensures balanced down of goods in heavy load
4.Integrated casting frame,double front wheels with strong loading capacity.
Specification
