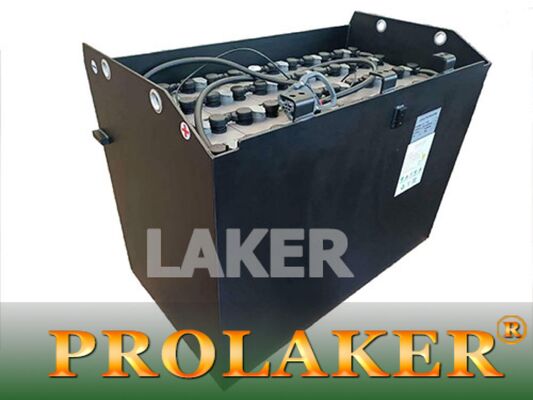

Hyster CPD25 Electric Forklift Battery 48V 700Ah, Hyster 2.5 Ton Dedicated Battery Pack 24-7PZB700
Product Details
| Type: | Forklift Battery | Application: | Heli Forklift CPD25 |
|---|---|---|---|
| Voltage: | 48 | Capacity (Ah) :: | 700 |
| Battery Type: | Lead-acid Battery | Number Of Monomers (only): | 24 |
| Iron Box Specifications (mm):: | 1030*500*792 | Material: | Lead, Alloy, PP, Steel |
| Usage: | Forklift | ||
| Highlight |
700Ah Electric Forklift Battery,Hyster CPD25 Electric Forklift Battery |
||
Product Description

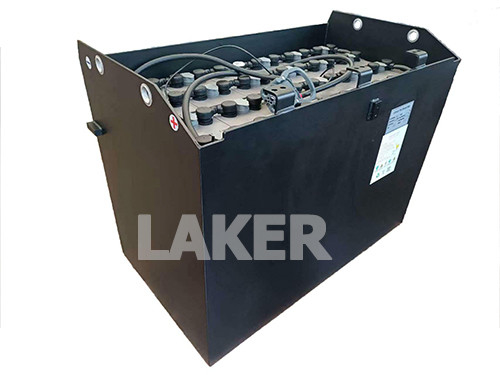

The 24-7PZB700 covers 48V 700Ah for Hyster CPD25 2.5 ton electric counterbalance trucks in a case measuring 1030 x 500 x 792 mm. Every unit is leak tested, discharge tested and voltage checked before packing, and the inter cell links are welded, which removes the retightening step that older bolted packs needed.
Technical Specifications| Model | 24-7PZB700 |
|---|---|
| Battery Type | Flooded lead acid traction battery |
| Nominal Voltage | 48 V |
| Rated Capacity | 700 Ah at the 5 hour rate |
| Plate Group | 7 PzB positive plates per cell |
| Cycle Life | 1500 deep cycles |
| Case Size | 1030 x 500 x 792 mm |
| Socket | SB175 grey |
| Connection | Welded inter cell links |
| Application | Hyster CPD25 series |
- Plate count and active material volume are matched to the case size, so the pack is not a smaller battery in a larger box.
- The case geometry follows the truck bay, so the pack drops onto the existing rollers without spacers, shims or new retaining bars.
- Epoxy coated container surface resists acid mist and the mechanical knocks of daily battery changes.
- Capacity runs about 10% above the nameplate figure, so lift speed stays steady instead of dropping in the final hour of a shift.
- Self discharge is around 5% per year, so a charged spare can sit on the rack for months and still start a shift.
- Tubular positive plates wrapped in glass fibre gauntlets resist the deep discharge pattern of counterbalance work.
| Primary fitment | Hyster CPD25 |
|---|---|
| Case size | 1030 x 500 x 792 mm |
| Connector | SB175 grey |
| Note | Confirm the battery retainer position on the CPD25 chassis before ordering |
Hyster 2.5 ton trucks pull high current on lift, which is why the CPD25 uses a 700Ah pack rather than the 550Ah fitted to smaller models.
- Paper, packaging and print plants handling heavy reels
- Equipment rental fleets that need a standard pack across many trucks
- Cross dock facilities where trucks charge in short windows
- Tyre and rubber plants with continuous three shift operation
- Pharmaceutical warehouses with strict cleaning routines
- Manufacturing lines moving raw material and finished goods
- Torque check the terminal bolts at the first service and after any cable replacement.
- Do not opportunity charge on a charger not rated for it; partial cycles without a proper profile shorten life.
- Inspect cable lugs and the socket every 500 operating hours for heat marks or looseness.
- Charge at the end of every shift rather than waiting for the low battery warning; a full charge takes eight to ten hours.
- Replace a damaged connector housing rather than taping it; a poor contact becomes a fire risk.
- Fragile marks and this way up arrows are printed on each case.
- Standard production lead time is 15 to 25 working days after deposit.
- Timber bracing inside the container stops movement during ocean freight.
- Cases carry model, voltage, capacity, net weight and handling marks on two faces.
- Only new cells are used; no refurbished, relabelled or second hand material.
- Cells are formed and capacity tested before assembly, with the discharge curve recorded per batch.
- CE documentation is available for EU destinations.
- Plate thickness, grid weight and paste density are checked at incoming inspection.





Q1: Can the connector, cable length or container colour be changed?
Yes. The standard build is a grey container with a factory terminated socket; other connector types, cable lengths and colours are produced from your drawing or a sample of the original.
Q2: What is the minimum order and the delivery time?
One unit is acceptable for a trial. Standard production takes 15 to 25 working days after deposit, and mixed models can be consolidated in the same container.
Q3: Will this 24-7PZB700 fit my Hyster CPD25 2.5 ton electric counterbalance trucks without modification?
It is built for the bay used by the Hyster CPD25 2.5 ton electric counterbalance trucks in a case measuring 1030 x 500 x 792 mm. Send a photo of the old nameplate and the compartment with a tape measure across the width, and we will confirm terminal position, socket type and cable length before the order is released.
Q4: Is the pack supplied filled or dry?
Either. Filled and formed packs are ready to install; dry charged packs ship with electrolyte in a separate container and are activated on site.
Q5: Do you supply spare cells and connectors?
Yes. Individual cells, connector kits, sockets and cable sets are available for the models we build, which lets you repair one cell instead of replacing a whole pack.
