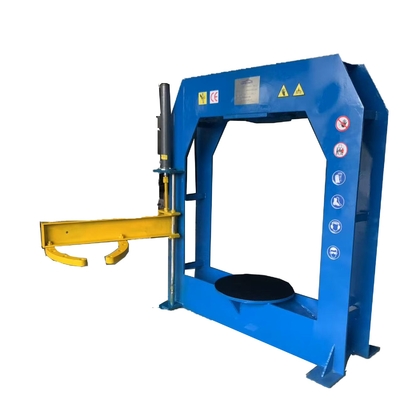

Heavy Duty Solid Tire Press Machine TP200 Apply For Maximum Solid Tires Rim 24 Inches
Product Details
| Model: | TP200 | Origin: | CHINA |
|---|---|---|---|
| Pressure: | 200Ton | Material: | Steel Plate High Quality |
| Color: | Blue Body, Yellow Oil Cylinder | Power Supply: | 380v 60Hz |
| Motor: | 7.5kw | Stroke: | 900mm |
| Inner Frame: | 1.5mx1.5m | Tools: | Apply For Rim 8''-24'' |
| Highlight | Steel Plate Solid Tire Press Machine, 24inches Solid Tire Press Machine, 24'' Forklift Tire Press Machine | ||
Product Description
SOLID TIRE PRESS MACHINE TP200
Max cylinder stroke: 0.9m
Motor: 7.5kw 380v/60Hz
Solid Cushion size: 8’’- 24’’
Working frame:1.5m*1.5m
Color: Blue body, yellow oil cylinder
| Model | TP200 |
| Nominal pressure | 2.0 MN |
| Work hydraulic | 25 Mpa |
| Max Tire Size | 24 Inches |
| Max Cylinder Stroke | 900 mm |
| Motor | 7.5KW |
| Oil Tank Capacity | 130 L |
| Inner working Size | 1.5m*1.5m |
| Weight | 2600 kg |
| CBM | 8.13 |

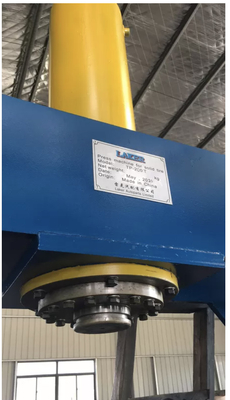

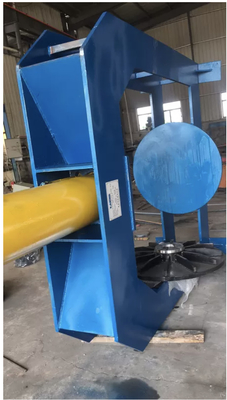

Product display
Product features
- Heavy-duty frame: The construction is welded by a large-scale beam and channel beam.
- High-grade Hydraulic Cylinder: The piston rod is ground and hard-chromium plated.
- Easy pull and press into the rims.
- Voltage and phase customized according to different power supply.
Introduction
2.5MN solid tyre pressing machine is a special equipment for solid tire loading and unloading,
It can also apply to the tyres below 25".
This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.
The hydraulic system of the machine consists of a hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
The high-pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 35MPa.

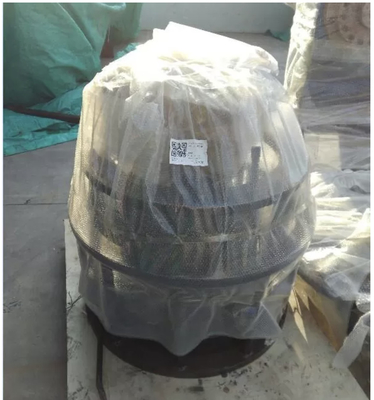

Packaging
