TP160 Placed On Van With Diesel Engine Mobile Solid Tire Press Machine
Product Details
| Origin: | China | Model: | Mobile TP160 |
|---|---|---|---|
| Pressure: | 160Ton | Material: | Steel Plate High Quality |
| Power Supply: | 220v 60Hz | Overall Size: | 2300(W)*2450mm(H) |
| Tools: | Apply For Rim 8''-15'' | Stroke: | 650mm |
| Color: | Silver Body, Red Oil Cylinder | ||
| Highlight | Mobile Solid Tire Press Machine, Diesel Engine Solid Tire Press Machine, Diesel Engine Forklift Tire Press Machine | ||
Product Description

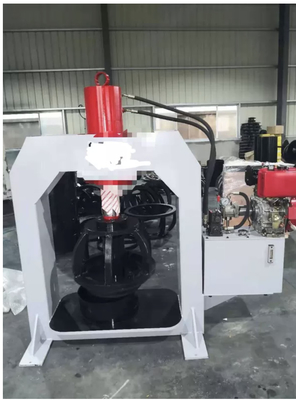

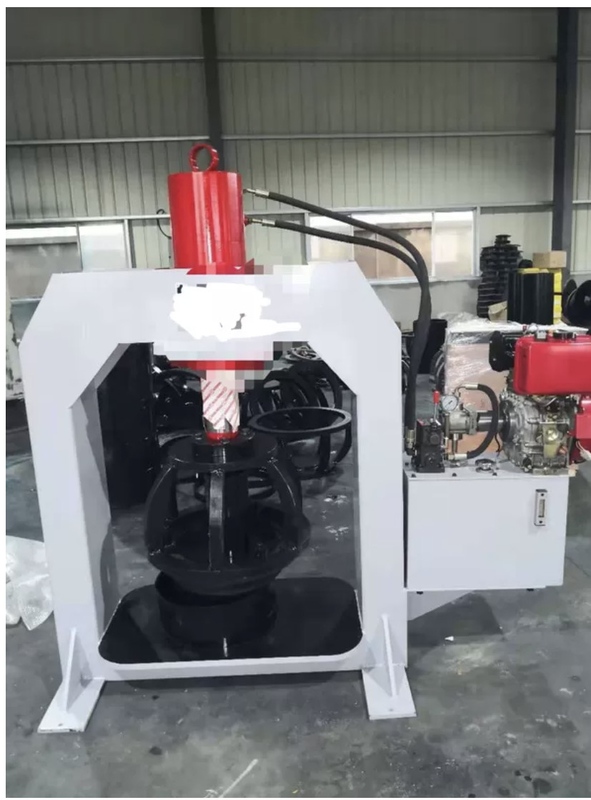

MOBILE SOLID TIRE PRESS MACHINE TP160

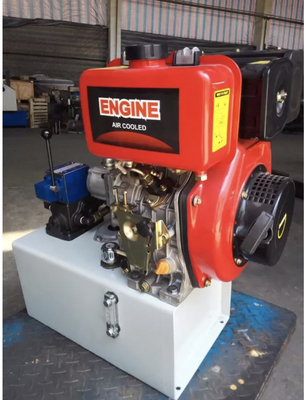

Motor: Diesel motor
Max cylinder stroke: 0.65m
Motor: 5.5kw 380v/60Hz
Solid Cushion size: 8’’- 15’’
Overall size: 2300(W)*2450mm(H)
Color: Silver body, red oil cylinder
| Model | MOBILE TP160 |
| Nominal pressure | 1.5 MN |
| Work hydraulic | 15 Mpa |
| Max Tire Size | 15 Inches |
| Max Cylinder Stroke | 650 mm |
| Motor | 5.5KW |
| Oil Tank Capacity | 110 L |
| Inner working Size | 1.5m*1.5m |
| Weight | 2100 kg |
Product display
Product features
- Heavy-duty frame: The construction is welded by a large-scale beam and channel beam.
- High-grade Hydraulic Cylinder: The piston rod is ground and hard-chromium plated.
- Easy pull and press into the rims.
- Voltage and phase customized according to different power supply.
- Powered by Diesel engine, portable, and easy to work outside.
Product introduction
1.5 MN solid tyre pressing machine is a special equipment for solid tire loading and unloading,
It can also apply to the tires below 15".
This machine is a frame type structure. The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.

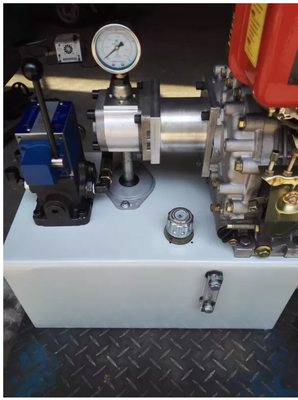

The hydraulic system of the machine consists of a hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
The high-pressure relief valve is the oil pressure setting of a high-pressure pump, its maximum setting value is 35MPa.
