Product Details:
|
| Model NO.: | GF4000 | Load Capacity: | 4TONS |
|---|---|---|---|
| Emission Standard: | Euro 4 | Horsepower: | 50HP |
| Dumping Type: | Side Dumping Style | Wading Depth: | 40cm |
| Engine Model: | 490t | Specification: | 3260*1650*1550mm |
| High Light: | Dump Truck Agricultural Crawler Dumper,GF4000 Agricultural Crawler Dumper,4000kg Agricultural Crawler Dumper |
||
Product parameters
| model | GF4000 |
| engine model | 490T |
| maximum load | 4000kg |
| machine size | 3260*1650*1550mm |
| container size | 2150*1590*500mm |
| maximum climbing capacity | 40 degrees |
| engine power | 37kw/2200r/min |
| chassis height | 700mm |
| walking speed | 1-30km/h |
| gearbox model | 21 reinforced type |
| gear | sub-shift, +3 forward, +1 reverse |
| track | model 400*90wh*62 |
| braking method | parking brake function |
| wading depth | 40cm |
| mud depth | 35cm |

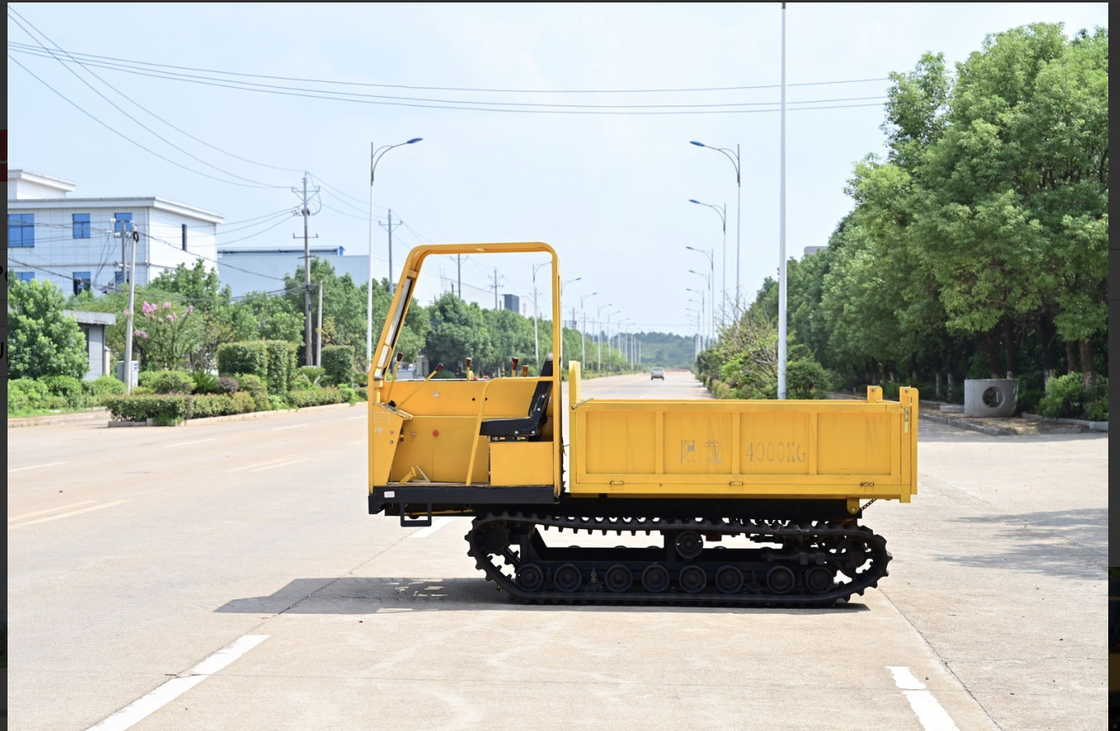

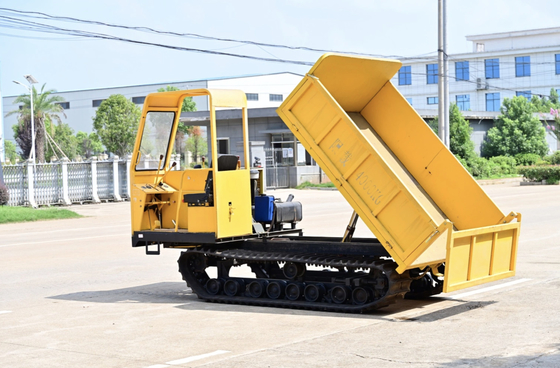

Prooduct display
Product features
1. wide range of use, simple structure, stable stransmission, labor saving operation, easy to realize automatoc control
2 suitable for complex road conditions such as swamps, river beaches, deserts, paddy feilds, rainforests, mountains, and snow
3. multi cylinde 490 power system, simple structure, easy maintaenance, low fuel consumption, low maintanence cost.
4. enineering crawler, large traction, good climbing grip performance, strong transportation capacity
5. enlarged gearbox, stable center of gravity, small turning radius, flexible maneuverability, especially suitable for narrow sites, reduce the cost of road construction.
Product drawing
Exhibition
Packaging and delivery
Company profile
About US
Jiangxi Fengmao Agricultural Machinery Co.,Ltd.is a powerful mechanical technology company integrating design, research and development, production and sales of crawler dumper and paddy graders. Products such as all-terrain crawler transporter, climbing kings, paddy field management and handling machines, and orchard lifting work platforms are widely used in all kinds of mountainous hills or swamps and other complex road conditions, especially for fruit garden, farm, palm oil harvesting, construction site, wood and bamboo transportation, mining site, etc. The paddy field grader is made of all stainless steel, and the product is durable.
The company has been adhering to the purpose of "serving mountainous areas, serving farmers and liberating labor". Our products occupy most of the national market with a mature national sales network. We hope to provide the most excellent products and services, and benefit the world and the people of the world.
FAQ
1.Q:How can I choose the most suitable product?
A:Please tell me your requirements about details and application scenarios, then we can provide suggestions for you.
2.Q:Methods of Payment:
A:T/T (Telegraphic Transfer) or Western Union.
3.Q:Handling time for an order:
A:Normally It takes about 3-10 days supplied from stock after getting payment.
4.Q:Shipping way:
A:By sea or land transport, and we can provide air transport if you need.
5.Q:Quality Control:
A:We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
6.Q:After Services:
A: a.Our sales team will response for your question within 24 hours (Holidays Excluded)
b.Technical Support will be available at any time
c.Free replacement will provide once the failure confirmed caused by our product quality
7.Q:About Warranty:
A:1 year.
8.Q:Are you factory or trading company?
A:We are factory, good and stable performance can be guaranteed, OEM and ODM is available.
