Self-Propelled Dumper Hydraulic Dumping 5tons Maximum Loading GF5000d Rubber Track Crawler Dumper
Product Details
| Model NO.: | GF5000D | Load Capacity: | 5T |
|---|---|---|---|
| Power: | Diesel | Emission Standard: | Euro 4 |
| Walking Speed: | 1-20km/H | Mud Depth: | 35cm |
| Specification: | 3500*1650*2270mm | ||
| Highlight |
Hydraulic Dumping Self-Propelled Dumper,5tons Self-Propelled Dumper,Rubber Track Crawler Self-Propelled Dumper |
||
Product Description
Product parameters
| model | GF5000D |
| engine model | 490T |
| max load | 5000KG |
| machine size | 3500*1650*2270mm |
| container size | 2250*1290*1000mm |
| maximum climbing capacity | 40 degrees |
| engine power | 37KW/3200r/min |
| chassis height | 700mm |
| gear | sub-shift, +3 forward, +1 reverse |
| track | model 400*90WH*62 |
| braking method | parking brake function |
| wading depth | 40cm |
| mud depth | 35cm |
| gearbox model | type 28 |
| walking speed | 1-20km/h |
| rear camera | none |

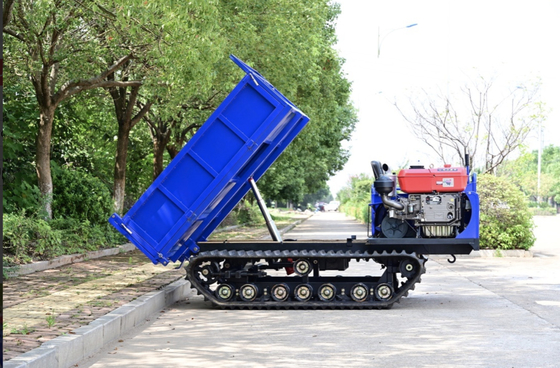

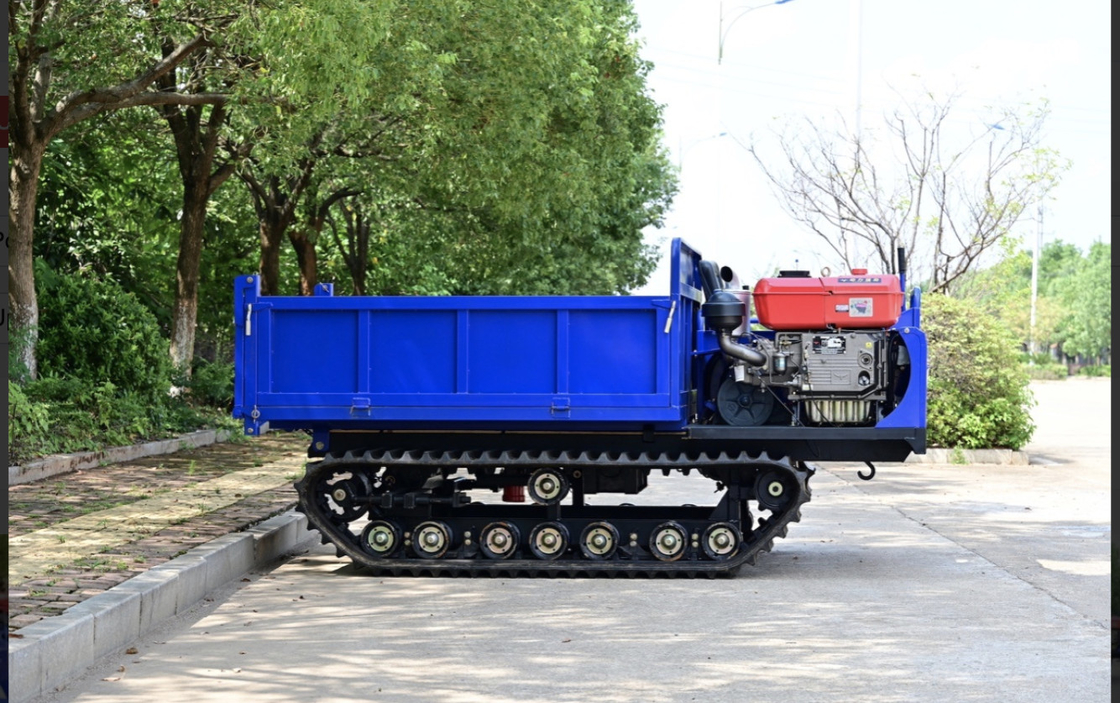

Product display
Features
1. wide range of use, simple structure, stable stransmission, labor saving operation, easy to realize automatoc control
2 suitable for complex road conditions such as swamps, river beaches, deserts, paddy feilds, rainforests, mountains, and snow
3. multi cylinde 490 power system, simple structure, easy maintaenance, low fuel consumption, low maintanence cost.
4. enineering crawler, large traction, good climbing grip performance, strong transportation capacity
5. enlarged gearbox, stable center of gravity, small turning radius, flexible maneuverability, especially suitable for narrow sites, reduce the cost of road construction.
6. electric start, tei-road control, centralized handle, easy to operate.
Production workflow chart
Exhibition
Packaging and delivery
Adopt container transportation, and take reinforcement measures to prevent the machine from being damaged, so that customers receive the machine in good condition.
We have close ties with the top ten shipping companies in the world and can provide you with the best shipping quotations and the most timely follow-up information.
Company profile
About US
Jiangxi Fengmao Agricultural Machinery Co.,Ltd.is a powerful mechanical technology company integrating design, research and development, production and sales of crawler dumper and paddy graders. Products such as all-terrain crawler transporter, climbing kings, paddy field management and handling machines, and orchard lifting work platforms are widely used in all kinds of mountainous hills or swamps and other complex road conditions, especially for fruit garden, farm, palm oil harvesting, construction site, wood and bamboo transportation, mining site, etc. The paddy field grader is made of all stainless steel, and the product is durable.
Jiangxi Fengmao Agricultural Machinery Co., Ltd. firmly believes in a customer-centric approach, striving to deliver the highest quality products to meet and exceed customer expectations. The company's dedication to innovation, excellent craftsmanship, and attention to detail sets it apart in an increasingly competitive market. With a commitment to sustainability and a deep understanding of the evolving needs of the agricultural sector, Fengmao Agricultural Machinery continues to introduce innovative solutions that revolutionize farming practices.
Market
GF dumper trucks are exported to countries all over the world, especially in Southeast Asia, which are used to transport palm and become a hot-selling product. In Indonesia, the Philippines also has specialized agents.
Crawler dumper trucks, the track replaces the wheel, and the traffic-ability is good in all terrains. Wide range of applications, suitable for complex and harsh road conditions such as paddy fields, swamps, muddy field roads, rugged mountain roads, soft grass, mountain forests and deserts, slippery ice and snow, etc. Construction, infrastructure projects, mining sites, etc
FAQ
1.Q:How can I choose the most suitable product?
A:Please tell me your requirements about details and application scenarios, then we can provide suggestions for you.
2 .Q:Methods of Payment:
A:T/T (Telegraphic Transfer) or Western Union.
3.Q:Handling time for an order:
A:Normally It takes about 3-10 days supplied from stock after getting payment.
4.Q :Shipping way:
A:By sea or land transport, and we can provide air transport if you need.
5.Q:Quality Control:
A:We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
6.Q:After Services:
A: a.Our sales team will respond for your question within 24 hours (Holidays Excluded)
b.Technical Support will be available at any time
c.Free replacement will provide once the failure confirmed caused by our product quality
7.Q:About Warranty:
A:1 year.
8.Q:Are you factory or trading company?
A:We are factory, good and stable performance can be guaranteed, OEM and ODM is available.
9.Q: Lead time
3-10 days if there is a stock, 15-25 days for bulk order or customization.
