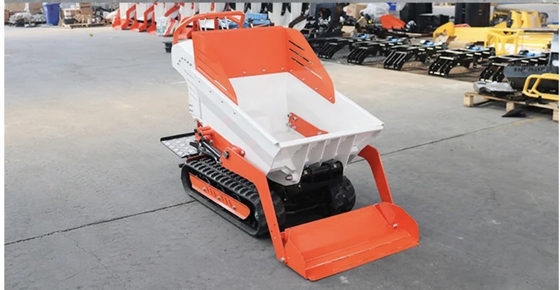

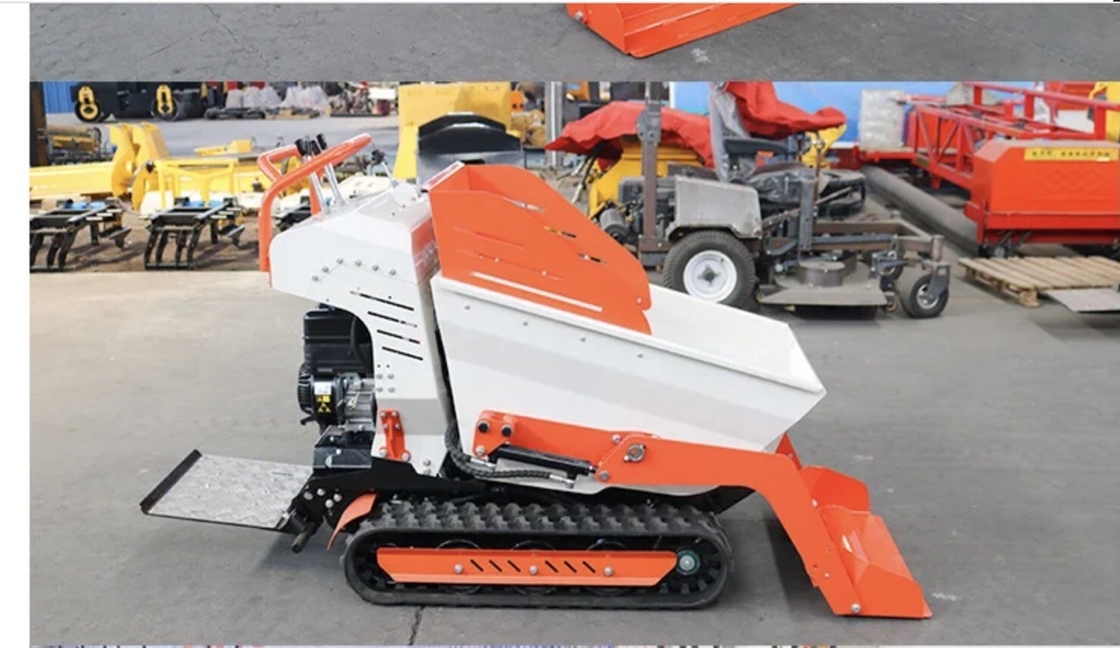

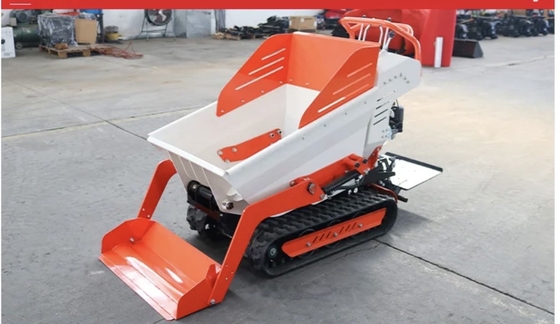

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Brand Name: GF
Model Number: GF500
Place of Origin: China
Certification: ISO&ECE
Minimum Order Quantity: 1
Price: $2,250.00
Supply Ability: 1000 pieces per month
Delivery Time: 3-10 days if there is a stock, 15-25 days for bulk order or customization.
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Standard Packaging: wooden

Product Details


Model NO.: GF500 Power: Gasoline
Load Capacity: 500KG Emission Standard: Euro 4
Horsepower: 6.5HP Tire Design: Crawler
Walking Speed: 2.88km/H Tipping Mode: Hydraulic
Highlight

Hot GF500 Mini Track Dumper

,

Small GF500 Mini Track Dumper

,

Cheap GF500 Mini Track Dumper

Product Description

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Product parameters





Mini Dumper Model GF500
Max Loading Weight 500KGS
Engine Briggs&Stratton Engine With EPA
Cooling mode Air-cooled,Four-stroke,Gasoline,OHV
Displacementml 208cc
Power(KW/rpm) 6.5hp/4.2kw/3600rpm
Fuel Gasoline 92#
Fuel consumption ≤0.395g/kw.h
 tank capacity 3.1L
Engine oil capacity 0.6L
Cargo volume 200dm³
Tipping mode Hydraulic
Tip angle 88°
Walking speed 2.88km/h
Minimum turning radius 1.15m
Crawler Size 180*60*38mm
Track Center Distance 520mm
Minimum ground clearance  80mm
Gradeability 20°
Hydraulic oil number 30#/46# anti-wear hydraulic oil
Hydraulic Oil Tank 10L
Start mode Hand pull/Electric Start
Machine Weight 420kgs
Machine Size 1505*856*1305mm
Loading quantity 14sets/20GP
28sets/40HQ



Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Packaging and delivery



Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

Our company prides itself on delivering products to our customers with utmost speed and safety. With a commitment to excellence, we ensure that your orders are promptly processed, efficiently packaged, and securely transported to reach you in a timely manner. Our dedicated team and robust logistics network guarantee reliable and punctual deliveries, while maintaining the highest standards of safety throughout the entire supply chain. Trust us to deliver your goods with excellence and peace of mind.



Exhibition

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe

About us

Company profile
Jiangxi Fengmao Agricultural Machinery Co.,Ltd.is a powerful mechanical technology company integrating design, research and development, production and sales of crawler dumper and paddy graders. Products such as all-terrain crawler transporter, climbing kings, paddy field management and handling machines, and orchard lifting work platforms are widely used in all kinds of mountainous hills or swamps and other complex road conditions, especially for fruit garden, farm, palm oil harvesting, construction site, wood and bamboo transportation, mining site, etc. The paddy field grader is made of all stainless steel, and the product is durable.

Jiangxi Fengmao Agricultural Machinery Co., Ltd. firmly believes in a customer-centric approach, striving to deliver the highest quality products to meet and exceed customer expectations. The company's dedication to innovation, excellent craftsmanship, and attention to detail sets it apart in an increasingly competitive market. With a commitment to sustainability and a deep understanding of the evolving needs of the agricultural sector, Fengmao Agricultural Machinery continues to introduce innovative solutions that revolutionize farming practices.

Hot Cheap Small Mini Dumper 500kg GF500 Mini Track Dumper China Crawler Dumpe



Market

GF mini dump trucks are exported to countries all over the world, especially in Southeast Asia, which are used to transport palm and become a hot-selling product. In Indonesia, the Philippines also has specialized agents.

Crawler dumper trucks, the track replaces the wheel, and the traffic-ability is good in all terrains. Wide range of applications, suitable for complex and harsh road conditions such as paddy fields, swamps, muddy field roads, rugged mountain roads, soft grass, mountain forests and deserts, slippery ice and snow, etc. Construction, infrastructure projects, mining sites, etc



FAQ

1.Q:How can I choose the most suitable product?
A:Please  tell me your  requirements about details and application scenarios, then we can provide suggestions for  you.

2.Q:Methods of Payment:
A:T/T (Telegraphic Transfer ) or Western Union.

3.Q:Handling time for an order:
A:Normally It takes about 3-10 days supplied from stock after getting payment.

4.Q:Shipping way:
A:By sea or land transport, and  we  can provide air transport if you need.

5.Q:Quality Control:
A:We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

6.Q:After Services:
A: a.Our sales team will respond for your question within 24 hours (Holidays Excluded)
      b.Technical Support will be available at any time
      c.Free replacement will provide once the failure confirmed caused by our product quality

7.Q:About Warranty:
A:1 ​​year.

8.Q:Are you factory or trading company?
A:We are factory, good and stable performance  can be guaranteed, OEM and ODM is available.

9. Q: Lead time

3-10 days if there is a stock, 15-25 days for bulk order or customization.
