High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer

High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer
High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer

Large Image :  High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer

Product Details:
Place of Origin: China
Brand Name: LAKER
Certification: ISO9001,UL,CE,CEC
Model Number: ESCH48V50A-O
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons, Standard wooden pallet
Delivery Time: 7 to 15days after order confirmation and deposit
Payment Terms: 500000pcs per monthWestern Union, L/C, T/T

High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer

Description
Type: High Frequency Battery Charger Model: ESCH48V50A-O
Market: Asia, South-east Asia, America Application: Forklift Truck
Technology: Single Chip Microcomputer (SCM)
High Light:

48v 50A High Frequency Battery Charger

,

ESCH48V50A-O High Frequency Battery Charger

,

ESCH48V50A-O

Product parameters



Model ESCH48V50A-O
Dimensions (mm) Long * wide * high: 386*169*360 (mm)
Output maximum current (A) 50
Maximum power point (W) 3000
Input voltage (VAC) 380V±15% Three phase three wire +safe ground wire
Output voltage (VDC) Lead-acid battery:63V; VRLA:60V;(Customizable)
Applicable battery voltage 48V lead-acid battery pack, (Customizable, Lithium battery optional)
Maximum efficiency 97%
Output voltage regulation precision ±1%
Output current accuracy ±1%
Working temperature -30-45
Classes of seismic measure SAEJ1378
Cooling mode Airblast cooling
Over-temperature protection 75±5
Input under-voltage protection (VAC) <284~304
Output over-voltage protection (VDC) 65V±1
Output over-current protection (A) >110%*Maximum charge current
Output short circuit protection When the output is short-circuited, charger shutdown, and automatic recovery after short-circuit solved.
Battery reverse protection Charger shutdown and alarm when the wire is connected reversely, it will automatically resume after wiring correctly.



Product display

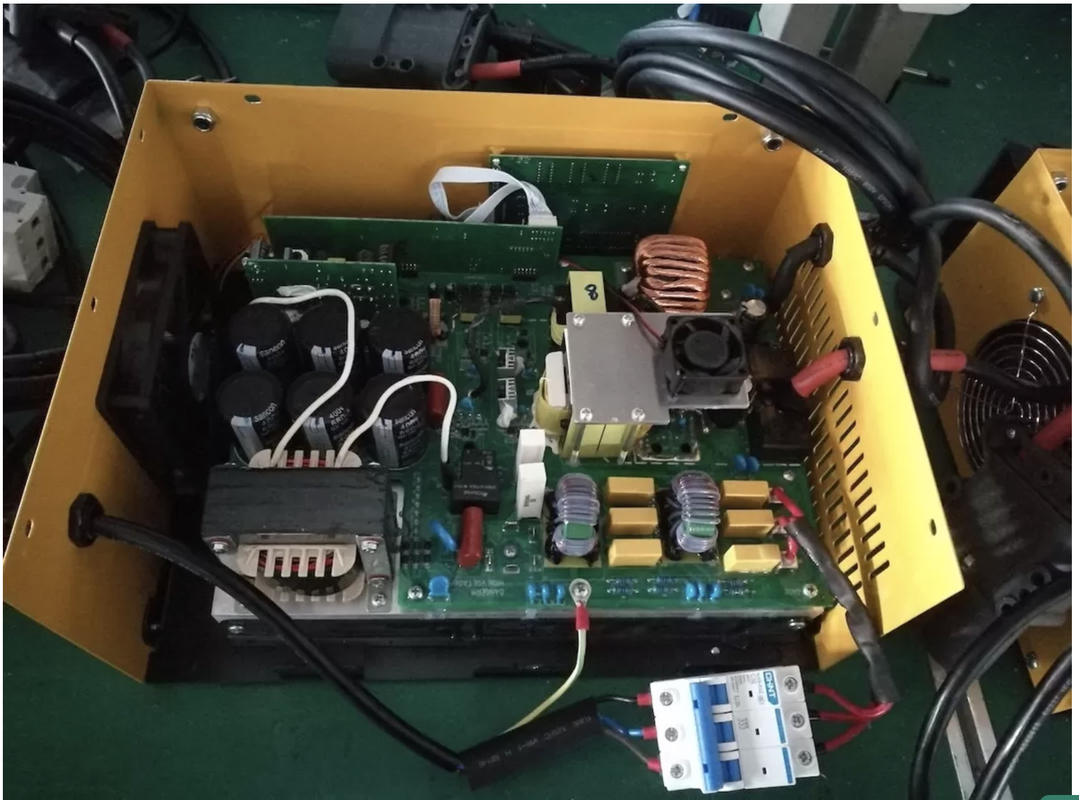

High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer 0

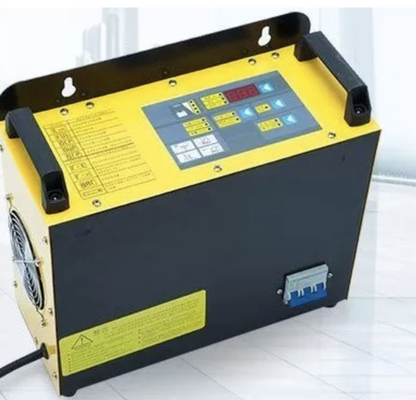

High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer 1



Product specifications

  • Charger integrates active power factor correction(PFC), can achieve zero pollution of power grid and avoid the impact of large current grid;
  • Wide range of AC input voltage, strong adaptability;
  • The module has the perfect protection function such as input over-voltage, lack of input, output over current, over voltage output, output short circuit, output isolation protection, module overheating and so on;
  • The full-bridge phase-shifted soft switch PWM the latest mixed-mode control, to overcome the traditional phase-shifted full-bridge circuit circulation loss, working conditions of diode side faults, secondary-side diodes to achieve soft recovery, the module can achieve high efficiency over a wide input voltage range and the maximum load range. Efficiency;
  • Close to 97%, the electromagnetic interference is greatly reduced, and the volume weight is greatly reduced;
  • Improved thermal design, more uniform heat distribution;
  • The use of a more complete circuit board dust, moisture-proof treatment;
  • (high-frequency battery charger, high power battery charger)



Product strength

  • Long life expectancy and proven in service record
  • Designed for use in harsh conditions
  • Smart modular design for simple and cost-effective
  • Highest efficiency, up to 97%
  • Fast and simple installation, plug and play
  • Cost-effective spare parts philosophy
  • Large range of chargers to match your application and optimize efficiency



Product characteristics





  • Single-Chip Microcomputer (SCM) according to the lead-acid batteries tolerance current capacity, life curve, gas analysis point and other information to complete the full charge of the whole process;
  • The battery having the environmental temperature compensation function to ensure that the temperature of the weather conditions, can automatically resist over-charge and under-charge.
  • With pulse charging function, the battery is filled with the premise of ensuring the best life of the battery.
  • With manual (charging) function
  • After three paint processing and dustproof design, the reliability of the operation is improved.
  • With digital display function, it can display online charging current, voltage, and charging time.
  • Charger can be used for hanging wall installation
  • (high-frequency battery charger, high power battery charger)



Packaging and delivery

High Frequency Battery Charger ESCH48V50A-O 48v 50A Single Chip Microcomputer 2
