Heavy Duty Stationary Hydraulic Dock Ramp DCQ6-0.7 Loading Capacity 6 Tons
Product Details
| Type: | Fixed Hydraulic Dock Ramp | Loading Capacity: | 6000 Kgs |
|---|---|---|---|
| Power: | 0.75kw | Model: | DCQ6-0.7 |
| Brand: | LAKER | Working Range: | Up +750, Down -300 |
| Power Pack: | 380v 50Hz | Overall Size: | 2000*2000*590mm |
| Pit Size: | Tailor-made | ||
| Highlight | Hydraulic Dock Ramp, Truck Dock Leveler | ||
Product Description
Fixed Hydraulic Dock Ramp
| Type | Fixed Hydraulic Dock Ramp |
| Model | DCQ6-0.7 |
| Loading Capacity | 6000 kgs |
Product introduction
The Air/hydraulic electric dock leveler can be installed on the edge of your dock to increase loading and loading efficiency of trucks and trailers.Increase the Logistics safety, also promote the image of company,larger economical performance appeared during the whole programming.
Product parameters
| Model |
Capacity load (kg) |
Platform Size(mm) |
Lip (mm) |
Travel(mm) |
Power (kw) |
Pit size(mm) | |||
| Upper | Lower | L | W | H | |||||
| DCQ6-0.55 | 6000 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2060 | 2040 | 600 |
| DCQ6-0.7 | 6000 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2560 | 2040 | 600 |
| DCQ8-0.55 | 8000 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2060 | 2040 | 600 |
| DCQ8-0.7 | 8000 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2560 | 2040 | 600 |
| DCQ10-0.55 | 10000 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2060 | 2040 | 600 |
| DCQ10-0.7 | 10000 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2560 | 2040 | 600 |

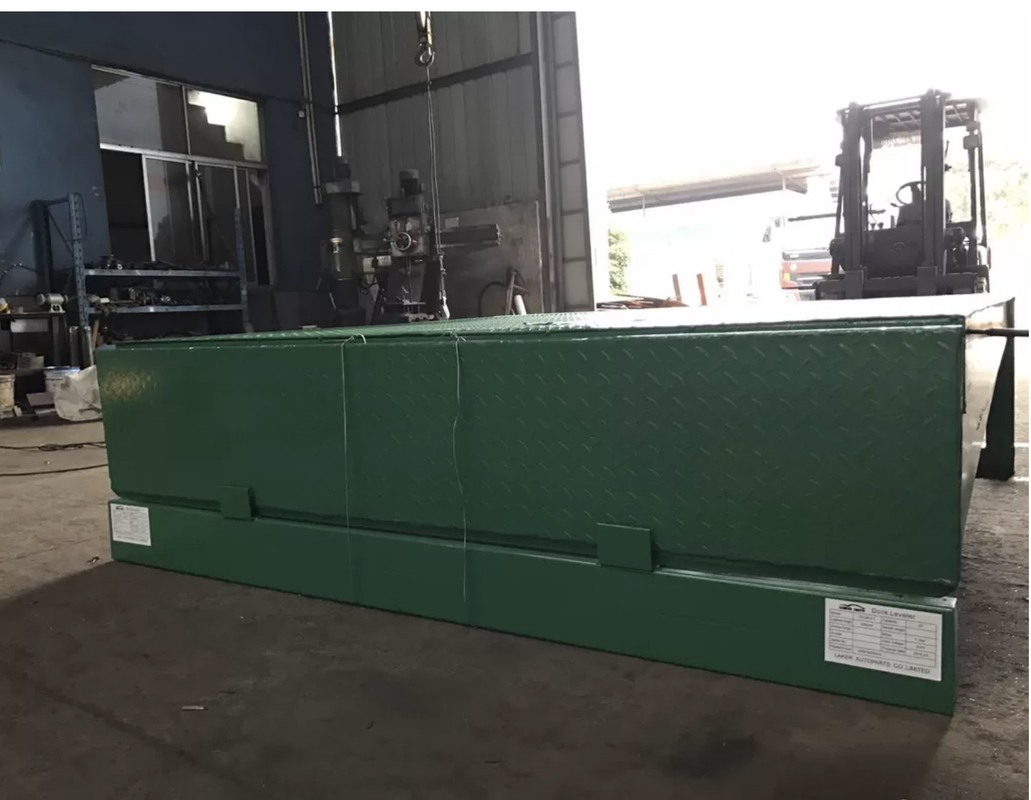

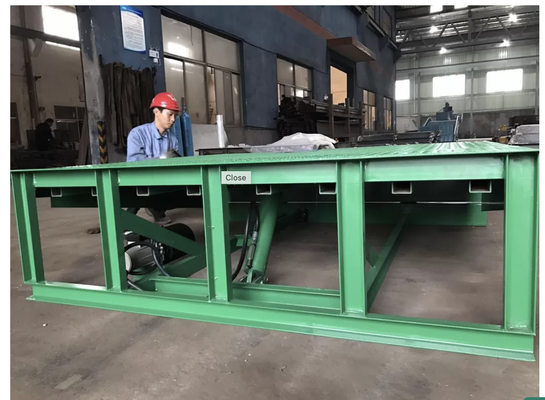

Product display
Product features
- Free maintenance and protecting environment.
- The main parts are imported.
- Appropriative frame made of fine steel-plate.
- Single button of the operation in more convenient.
- The safe design operates the credibility.
- Lip: Antiskid steel plate with thickness of 16mm.
- Capacity ablity:12T; bedplate depth:8mm; lip footplate:depth:16mm with slip-proofing safety lines.
