Stacker / Pallet Truck Industrial Battery Charger 24V With High Brightness LEDs
Product Details
| Model: | CZC7 24V/30A | Type: | Automatic Battery Charger |
|---|---|---|---|
| Output Voltage: | 24V | Current: | 30A |
| Phase: | Single Phase | Application: | Stacker, Pallet Truck |
| Brand: | LAKER | Warranty: | One Year |
| Highlight | Electric Forklift Charger, Lorry Battery Charger | ||
Product Description
Specifications
| Type | Lead Acid Battery Charger |
| Technology | High Frequency Automatic Charger |
| Model | CZC7 24V/30A |
| Phase | Single Phase 220V |
| Battery parameter | 24v 175Ah-240Ah |
Introduction
CZC7 series automatic charger is an advanced Hi-Tech product with strong functions and smart shape. It is featured with small size, light weight, easy operated, high charging efficiency and high reliability ; It combines the high frequency technology with micro-processor controlling technology in one unit to reach the best charging result for the battery, effectively to prolong the battery set’s working cycle life, all the charging process is automatically executed according to the program without the operator on duty.

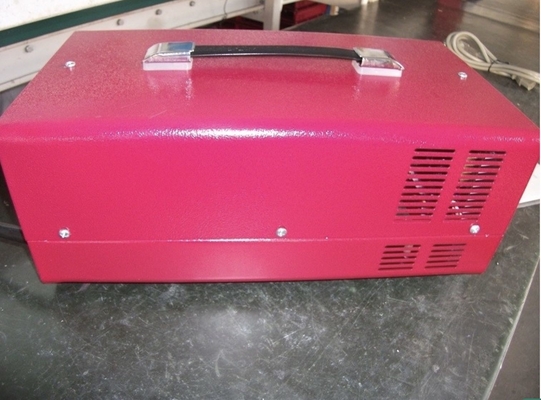

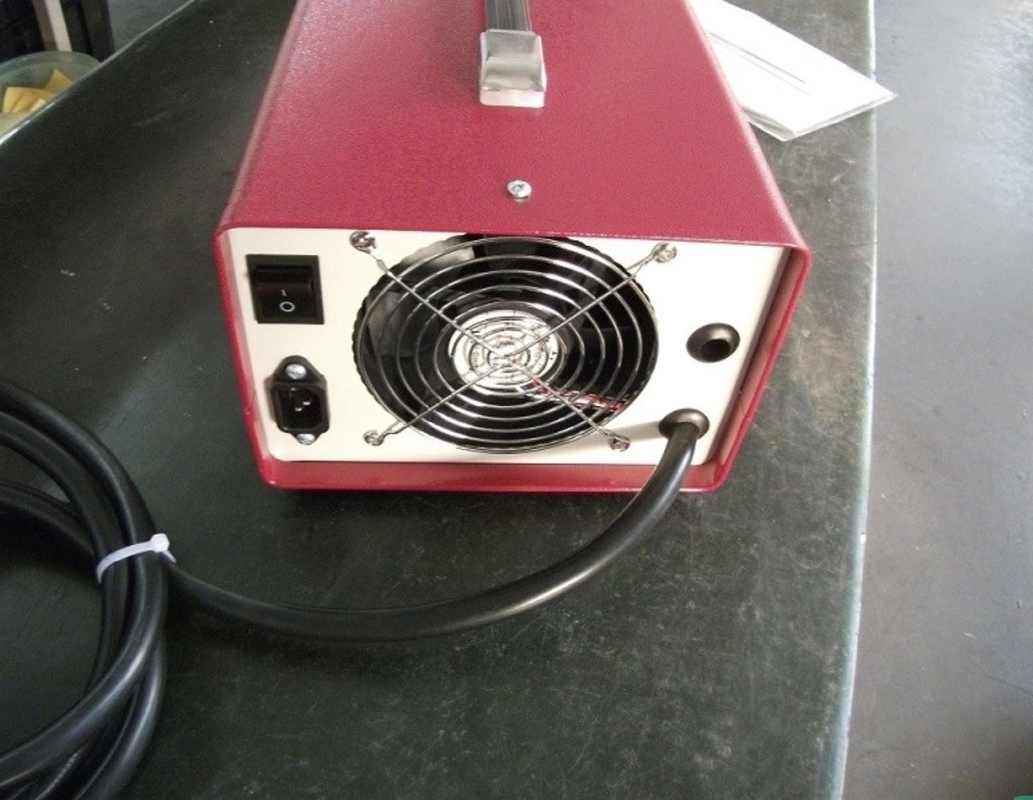

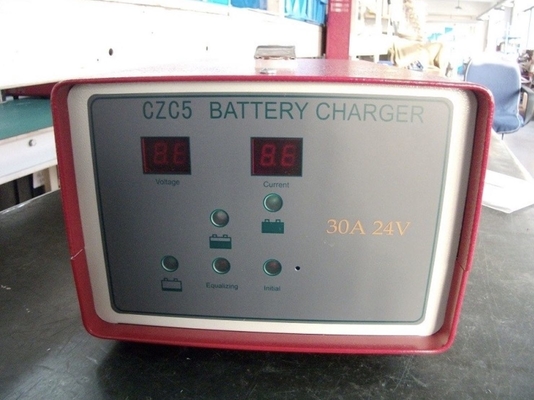

Product display
Product features
- Electric quantity controlling, timing controlling to ensure battery complete charging, auto-shut down after charging complete, no over-charging, no under-charging;
- High brightness LEDs indicating charger’s running state;
- Adopting IWUIa multi-stage charging style ( this charging style is applied for the general lead-acid battery charging);
- Adopting IWUUa multi-stage charging style ( this charging style is applied for the free maintenance lead-acid battery charging);
- Nixie tubes indicating battery voltage, charging current, capacity, time etc.;
- With auto-checking, time-delay start, soft-start functions;
- With the temperature compensation function for constant voltage point, floating charging point(CZC 7A adjustable charger is without this feature);
- With keeping charging function;
- Balanced charging to ensure the consistency of battery cell capacity;
- Automatic initial charging function;(Only the general lead-acid battery charging)
- With the protection of open circuit, over load, short circuit and over temperature ;
- With the function of information enquiring, to enquire past 20 times charging record;
- Memory during power interruption and self starting again;
- CZC7A adjustable charger can set charging voltage/current, multiple application for various specifications of battery.
Application
Ideal charging equipment for electric pallet truck, electric mover, electric lift, electric tour car and various of electric power driven vehicles.
Product catalog
|
Type, data item |
CZC7- 20A/24V |
CZC7- 25A/24V |
CZC7- 30A/24V |
CZC7- 35A/24V |
CZC7- 20A/48V |
CZC7- 40A/24V |
|||||
| Input Volt. V,Hz | 1Ph.220-240V 50～60Hz | ||||||||||
| Input current A | 4 | 5 | 6 | 7 | 8 | 8 | |||||
| Charge.Current A | 20 | 25 | 30 | 35 | 20 | 40 | |||||
| Output Power kW | 0.72 | 0.9 | 1.08 | 1.26 | 1.44 | 1.44 | |||||
|
Charge.Range V Ah |
24 116-160 |
24 145-200 |
24 174-240 |
24 200-280 |
48 116-160 |
24 230-320 |
|||||
| Size mm | 200×365×140 | 220x405x140 |
220×405 ×140 |
||||||||
| Net weight kg | 6.6 | 8.3 | 8.3 | ||||||||
