2110X800X2430 Mm 200 Ton TP200 Solid Tyre Pressing Machine Wear Resisting With Adjustable Press Frame
Product Details
| Type: | Solid Tire Press Machine | Model: | TP200 |
|---|---|---|---|
| Capacity: | 200Tons | Weight: | 2600 Kgs |
| Size: | L2110xW800xH2430 Mm | Brand: | LAKER |
| Motor: | 7.5KW | Color: | Blue,Yellow, Silver |
| Warranty: | Accessories Lifetime Warranty | Voltage: | 220V/380V Customized |
| Work Hydraulic: | 25Mpa | Max Tire Size: | 20 Inches |
| Highlight |
Solid Tyre Pressing Machine Wear Resisting,200 Ton Solid Tyre Press Machine,Adjustable Solid Tyre Pressing Machine |
||
Product Description
Technical parameters
| Detailed Product | Description | |
| Model | Tp 200 | |
| Capacity | Tons | 200 |
| Max. Tire Diameter | inches | 8"-24'' |
| Total Length | mm | 2200 |
| Total Width | mm | 800 |
| Total Height | mm | 2500 |
| work platform ret height | mm | 350 |
| Operating Pressure | MPa | 15-25 |
| Cylinder Max.stroke | mm | 800 |
| Oil Tank Capacity | Liters | 110 |
| Electro-Motor | kw | 7.5 (380v) |
| Weight | kgs | 2300 |
| Press Speed/time | min | 2.5 |
|
Remarks: |
mount and dismount 8”-24'' tires. Lifting platform is optional. Customization is acceptable. | |
| TOOL-I (press frame) |
8-9〃, 10-12〃, 15-16〃, 20'', 24〃 one for each |
applicable for rim 8''-24'' |
| TOOL-II (Press barrel) | 10〃, 12〃, 15〃 one for each 20'' | applicable for rim 8''-24'' |
| TOOL-III (guide ring) | 12〃, 15〃, 20〃 24〃 one for each | applicable for rim 8''-24'' |
| TOOL-IV (backing ring) |
10〃, 8-9〃, 12 〃, 15〃, 20'', 24〃 one for each |
applicable for rim 8''-24'' |
| guiding rod is optional | ||
2.0MN solid tire pressing machine is a special equipment for solid tire loading and unloading,
It can also apply to the tires below 20".

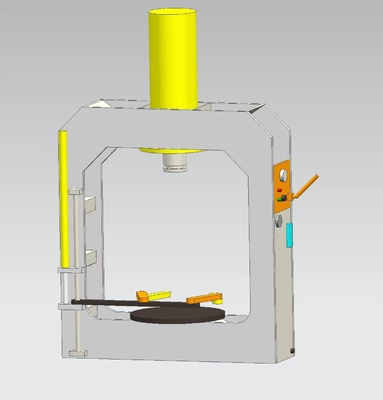

This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.
The hydraulic system of the machine consists of hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
High pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 25MPa.
Product diplay
Product features
- Heavy duty frame: The construction is welded by large-scale beam and channel beam.
- High-grade Hydraulic Cylinder: The biston rod is grinded and hard-chromium plated.
- Easy pull and press into the rims.
- Voltage and phase customized according to different power supply.
Free protection kit
