Heavy duty tire press machine ISO9001 certified TP250 Solid Tires Mounting Machine with adjustable press frame
Product Details
| Type: | Solid Tire Press Machine | Capacity: | 250tons |
|---|---|---|---|
| Size: | 3300*850*3500mm | Brand: | LAKER |
| Weight: | 500kg | ||
| Highlight |
Adjustable press frame Tire Press Machine,ISO9001 certified Tire Press Machine,Heavy duty Tire Press Machine |
||
Product Description
Product specification
| Detailed Product | Description | |
| Model | TP250 | |
| Capacity | Tons | 250 |
| Max. Tyre Diameter | inches | 8”-25’’ |
| Max. Tyre model | 23.5.25 | |
| Frame Total Length | mm | 3300 |
| Frame Total Width | mm | 850 |
| Frame Total Height(exclude cylinder) | mm | 3500 |
| work platform ret height | mm | 350 |
| Operating Pressure | Mpa | 20-32 |
| Cylinder Max.stroke | mm | 3/4 |
| Oil Tank Capacity | Liters | 130 |
| Electro-Motor | kw | 7.5 (380v) |
| Weight | kgs | 5000 |
| Working space | Mm | 2500*2500 |
|
Remarks: |
mount and dismount 8”- 25'' tires. | |
| TOOL-I (press frame) |
8-9〃, 10-12〃, 15-16 〃, 20'' , 25'' one for each |
applicable for rim 8’'-25'' |
| TOOL-II (Press barrel) | 10〃, 12〃, 15 〃 20’’, 25’’ one for each | applicable for rim 8’'-25'' |
| TOOL-III (guide ring) | 12〃, 15〃, 20 〃one for each | applicable for rim 8’’-15'' |
|
TOOL-IV (backing ring) |
10〃, 8-9〃, 12 〃, 15 〃, 20'' , 24''(25'')one for each |
applicable for rim 8''-24''(25'') |
| TOOL-V (guiding rod) | ￠16,￠18 three for each | |
2.0MN solid tyre pressing machine is a special equipment for solid tire loading and unloading,
It can also apply to the tyres below 20".

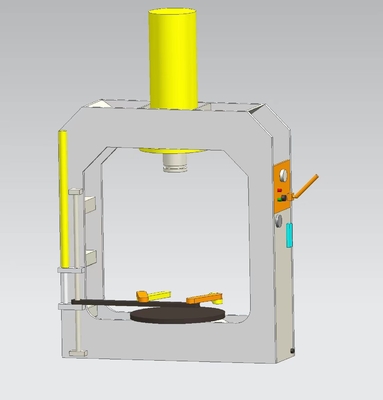

This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.
The hydraulic system of the machine consists of hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
High pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 25MPa.

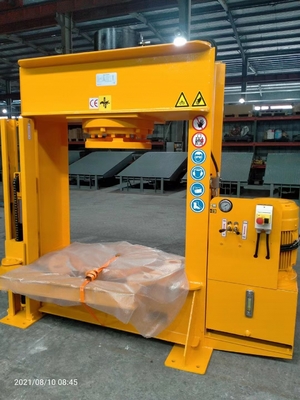

Product display
Product features
- Heavy duty frame: The construction is welded by large-scale beam and channel beam.
- High-grade Hydraulic Cylinder: The biston rod is grinded and hard-chromium plated.
- Easy pull and press into the rims.
- Voltage and phase customized according to different power supply.
Product strength
1. Efficient and accurate tire pressure monitoring
2. Quick and easy inflation and deflation of tires
3. Durable construction for long-lasting use
4. Versatile and compatible with a wide range of tire sizes
5. User-friendly interface with customizable settings and presets
Production
Free protection kit
Packaging and delivery
About us
LAKER AUTO PARTS CO., LIMITED is ONE-STOP-SHOP offering parts and accessories for forklifts trucks, low-speed electric vehicles, and auxiliary material handling equipment with a guaranteed high-performance product at the most competitive price.
Our core products are as follows:
1. Lead acid Batteries for Electric forklift trucks and Electric vehicles,
2. Intelligent automatic battery chargers including industrial frequency and high frequency,
3. Regular black and non-marking solid tires for forklifts used at small working fields and warehouses,
4. Hydraulic solid tire press machine for mounting and dismounting the solid tires,
5. Mobile loading ramp and fixed dock leveler for loading the container and goods,
6. Low-speed Electric vehicle with loading platform 1Ton to 3Ton for warehouse/airport/port dock material delivery.
and various of battery accessories for application of maintenance and replacement. (Such as 7. battery plates, gauntlets, connectors, battery watering systems, battery safety valves, battery vent plugs, battery cables and etc.)
7. Many different kinds of golf cart and sightseeing vehicles
At LAKER, we are dedicated to providing comprehensive, quality service from the initial quotation to final product delivery.
Our commitment to service, knowledge, and product availability has made us a One-Stop-Shop for our customers and their business needs.
All the Forklift relevant products are selected from top-class manufacturers under their own brand MYING and LAKER, supported by skilled technicians on standby for any technical query online or solution after-market.
LAKER sincerely hopes to be your best choice for the power solution and maintenance of the Forklift!
We will devote ourselves to enriching our product catalogs with more environment-friendly maintenance products for material handling equipment in the near future.
Given chance and full space, we would show you all of our advantages and let us grow up together. We are sure we can establish a long-term and friendly business relationship with your esteemed compan
