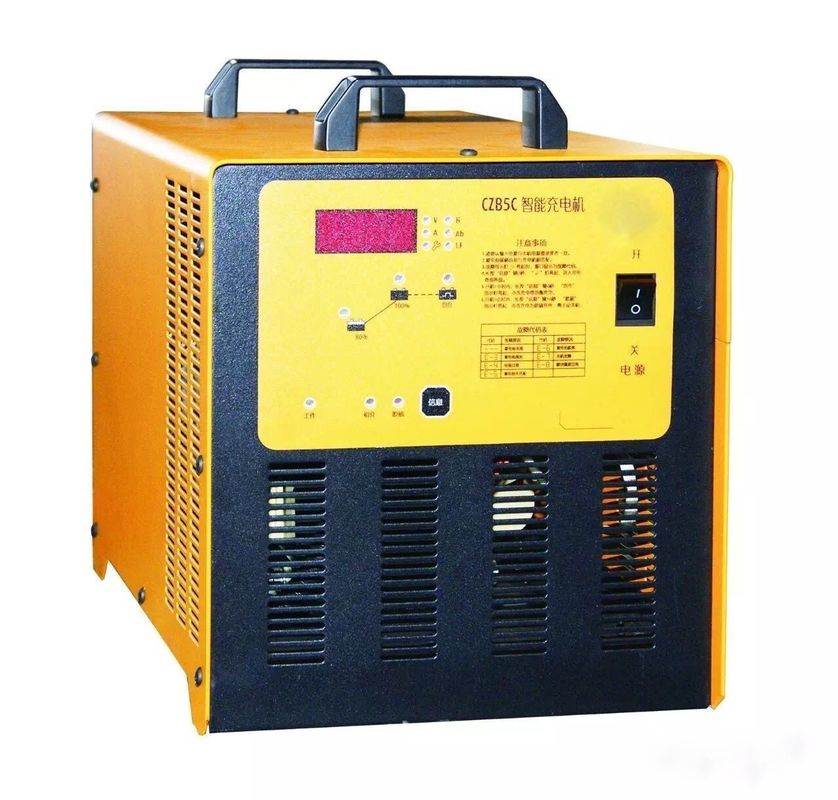

Intelligent 65A 48 Volt Forklift Battery Charger CZB5C Three Phases
Product Details
| Model: | CZB5C 48V/65A | Type: | CZB5C Forklift Battery Charger |
|---|---|---|---|
| Output Voltage: | 48Volt | Output Current: | 65A |
| Application: | Electric Forklift | Weight: | 68KG |
| Warranty: | One Year | Phase: | Three Phases 380v |
| Battery Parameter: | 48V 375-520Ah | Size: | 466×361×785 Mm |
| Highlight |
65A 48 Volt Forklift Battery Charger,CZB5C Forklift Battery Charger,Intelligent 48 Volt Forklift Battery Charger |
||
Product Description
Intelligent 65A 48 Volt Forklift Battery Charger CZB5C Three Phases
Introduction:
CZB5C Series 65A 48 Volt Forklift Battery Charger is the organic combination of leakage transformer, technology of Silicon-controlled rectifier and Microcomputer Control. This device could optimize Wsa+Pulse charging characteristic curve. As charge voltage of battery increases, charge current decreases automatically.
Application:
This device would be applicable to recharge of lead-acid batteries which could be used in
various electric vehicle such as power pallet trucks, fork-lift truck, lift truck, electronic tour bus.
Product Catalogs:
- Three-phase AC(3/PE) input power voltage.
| Specification | Input current A | Input power kVA |
Output current DC A |
Battery parameters | outline dimension mm |
Net weight kg |
|||
| @220V | @380V | @415V | V | Ah | |||||
| 8.5h-11h | |||||||||
| D48V/55A | 10.8 | 6.3 | 5.7 | 4.1 | 55 | 48 | 320-440 | 466×361×785 | 62 |
| D48V/65A | 12.8 | 7.4 | 6.8 | 4.9 | 65 | 48 | 375-520 | 466×361×785 | 65 |
| D48V/80A | 15.7 | 9.1 | 8.3 | 6.0 | 80 | 48 | 465-640 | 466×361×785 | 68 |
| D48V/100A | 19.7 | 11.4 | 10.4 | 7.5 | 100 | 48 | 580-800 | 526×360×882 | 86 |
| D48V/120A | 23.6 | 13.7 | 12.5 | 9.0 | 120 | 48 | 700-960 | 526×360×882 | 95 |
| D80V/65A | 21.3 | 12.3 | 11.3 | 8.1 | 65 | 80 | 375-520 | 526×360×882 | 87 |
| D80V/70A | 23.0 | 13.3 | 12.2 | 8.8 | 70 | 80 | 405-560 | 526×360×882 | 87 |
| D80V/80A | 26.2 | 15.2 | 13.9 | 10.0 | 80 | 80 | 465-640 | 526×360×882 | 89 |
| D80V/100A | 32.8 | 19.0 | 17.4 | 12.5 | 100 | 80 | 580-800 | 526×360×882 | 95 |
| D80V/120A | 39.4 | 22.8 | 20.9 | 15.0 | 120 | 80 | 700-960 | 526×360×882 | 107 |
Product Features:
- Functions of automatic detection, delaying and soft-start, Function of temperature compensation. The voltage of tipping point of gas emission would change with the temperature.
- Tis device could also record data as the end of recharge for 30 times.
- Protection and alarm functions of open crcuit, reverse connection, over load and short circuit breakdown.
- Protection and alarm functions of overheat fault of transformer and module.
- Equalization charge could ensure caacity consistency of battery packs, function of automatic initial charge, function of desulfuration charge.
