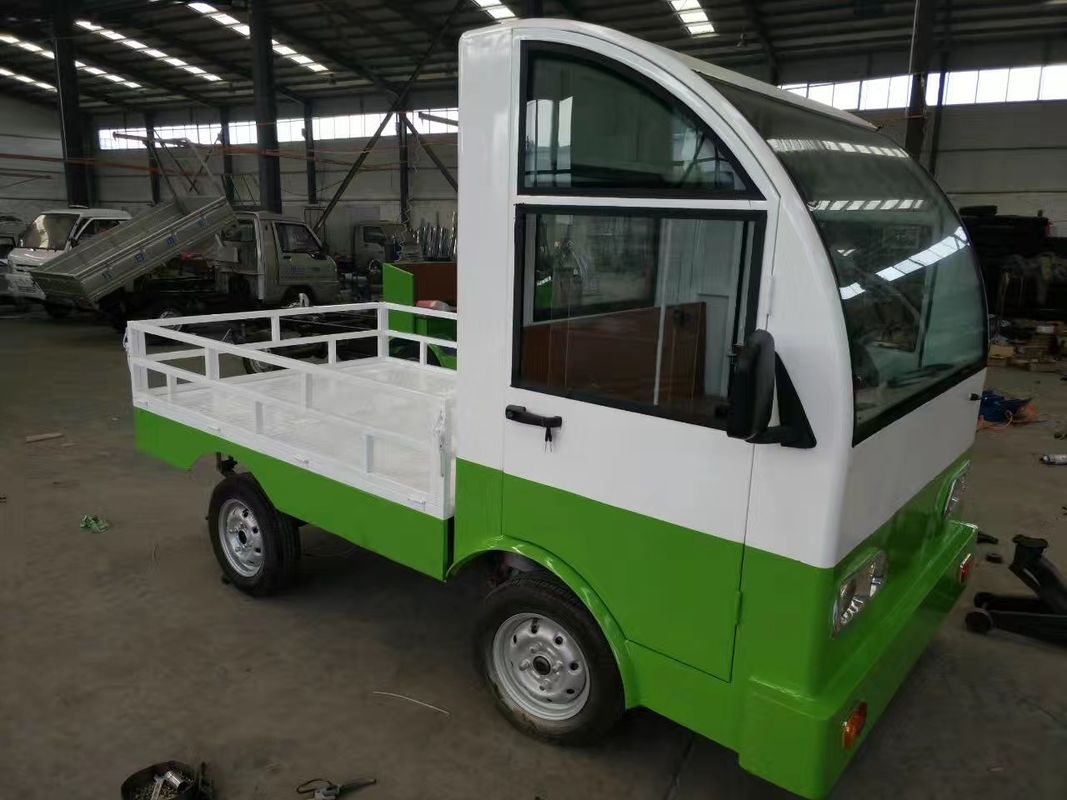

1Ton Loading Capacity Electric cargo vehicle With Platform
Product Details
| Rated Capacity: | 1000kg | Tire Type: | Radial Tire |
|---|---|---|---|
| Quantity Of Tires: | 2/2 | Power: | Battery Operated |
| Load Height: | （unloaden）850mm | Length Of Platform: | 2240mm |
| Width Of Platform: | 1400mm | Overall Size: | 3440*1400*1100mm |
| Color: | Customized | Driving Speed: | 30-80km/h |
| Passenger Capacity: | 2 Person | Origin: | China |
| With Guardrail: | Optional | ||
| Highlight |
battery operated platform truck,platform pallet truck |
||
Product Description
Factory use electric cargo truck With 1 Ton Loading Capacity Platform
Product Specifications
| Drive type | Battery | |||
| Load capacity | Q(kg) | 1000 | ||
| Axle loading, laden front/rear | kg | 1660/3090 | ||
| Axle loading, unladen front/rear | kg | 865/885 | ||
| Tyre size, front | 175R14 | |||
| Std.tyre | Radial pneumatic | |||
| Wheels, number front rear (x=driven wheels) | 2/2x | |||
| Seat height/stand height | h7(mm) | 820 | ||
| Coupling height | h10(mm) | 550 | ||
| Loading height, unladen | h11(mm) | 760 | ||
| Length of loading surface | l3(mm) | 2240 | ||
| Overhang | l5(mm) | 630 | ||
| Width of loading surface | b9(mm) | 1400 | ||
| Overall length | l1(mm) | 3440 | ||
| Overall width | b1/b2(mm) | 1400 | ||
| Turning radius | Wa(mm) | 3580 | ||
| Internal turning radius | b13(mm) | 1500 | ||
| Travel speed, laden/unladen | Km/h | 30/80 | ||
| Battery volts./ Cap. | V/Ah | 72V 120AH | ||
| Service weight (with battery) | Kg | 1100 |
| Frame | Steel |
| Body | Steel plate |
| Floor | Rubber |
| Lighting system and horn | Front: 2 Headlights, 2 front turn signals; Back: 2 rear turn signals, 2 brake lights; |
| DC/DC Converter | 72V/12V DC/DC |
| Reversing alarm | Included |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake + hand brake, front drum and rear drum brake |
| Driving mode | Automatic drive |
| Instruments |
Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, ignition key; Headlight switch, turn signal switch, horn button |
Product advantages
1.Easy operation and flexible steering, safe and reliable.
2.Shock-proof and non-slip pedal reversible cushions in the back, reduce datigue and ergonomic.
3.The automatic power-off function works when the driver leaves the truck.
4.Speed mode: Manual, stepless speed.
5.Equipped with warning lights
6.Sideway batter easy to replacement
7.Built-in charger is optional
Warranty and Service
1. All the vehicles will be 100% tested before shipment.
2. The total machine is guaranteed for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Tool kit and wearing parts will be free charge together with shipment.
