Product Details:
|
Tire Type: | Radial Tire | Quantity Of Tires: | 2/2 |
---|---|---|---|
Power: | Battery Operated | Overall Size: | 3090×1490×1950mm |
Color: | Customized | Driving Speed: | 30-80km/h |
Passenger Capacity: | 4 Person | ||
High Light: | platform pallet truck,electric cargo truck |

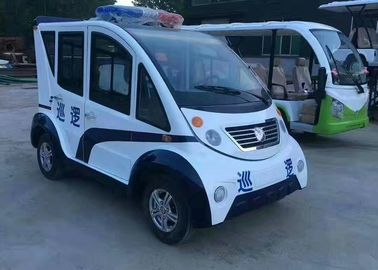

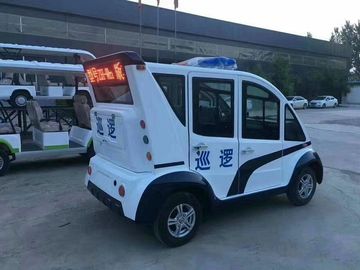

4 Seats Electric Trailer Truck Cruising Vehicle With Zero Emission Environmental Friendly
Doors: Available
Seats: for 4 passengers
Product Specifications
4-seater Electric Cruising Vehicle with Door | |
MODEL: | Cruising 1 |
ELECTRIC SYSTEM: | |
System voltage | 48V |
DC or AC | |
Motor | 5KW motor |
Battery | 8pcs x T105 |
TECHNICAL INFORMATOIN: | |
Passenger Number | 4 |
Max. Speed | 30km/h |
Range per charging (fully-loaded vehicle moving on flat-level road at a fixed speed of 20km/h) | >60km |
Minimum turning radius (m) | 4 |
Max. climbing ability | 20% |
Max. braking distance at a speed of 20km/h | ≤4m |
Max. Loading Capacity | 400kgs |
Vehicle Weight | 700kgs |
Overall dimensions (mm) | 3090×1490×1950mm |
OTHER SPECIFICATIONS: | |
Door | Aluminum door, each door to be removed or installed in seconds |
Brake System | 4-wheel hydraulic brake, parking brake |
Front axle and suspension | Independent suspension |
Rear axle and suspension | Integral rear axle, coil spring non-independent suspension, hydraulic shock absorber tube |
Steering system | rack and pinion steering system |
Body | Steel chassis + fiberglass body |
Floor | Non-slip floormat |
Instruments on dashboard | Combination instruments including power indicator, voltage, current, distance, lighting, F/R, signal |
Rear view mirror | 1pc on each side |
Lights system | Headlight, turn lights, taillight, horn and reverse buzzer |
Seats | High quality of artifical leather |
Auto system | CD and radio, speaker |
Switch assembly | Combination switch including Power kety, Light and wiper combination switch, F/R switch and reverse buzzer switch |
Wheel and tire | Aluminum wheel, tire 155RC12 |
CHARGER: | |
onboard charger or non-onboard charger |
Product strength
-Battery operated, environmental friendly without any pollution.
-The whole material can be customized to meet customer's requirements(Stainless steel plate or corrugated steel plate), the outside dimension can customize as well.
-Driving speed adjustable for safety driving.
Warranty and Service
1. All the vehicles will be 100% tested before shipment.
2. The total machine is guaranteed for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Tool kit and wearing parts will be free charge together with shipment.
