Quality Economic Hydraulic Tire Press Machine factory

Economic Hydraulic Tire Press Machine

Name: Economic Hydraulic Tire Press Machine
Brand: LAKER AUTOPARTS CO.,LIMITED
SKU: TP250
Price: 1,350.00 USD
Availability: InStock

Brand Name: LAKER

Model Number: TP250

Place of Origin: CHINA

Certification: SABER

Minimum Order Quantity: 1 set

Price: USD1200-USD1500 per set

Supply Ability: 5-10 sets per months

Delivery Time: 25-35days

Payment Terms: L/C, T/T

Standard Packaging: Shrink Wrapped

Solid Tyre Pressing Machine

Product Details

Material:	Steel Plate High Quality	Model:	TP250
Pressure:	250Ton	Motor:	7.5kw
Power Supply:	380v 60Hz	Stroke:	1600mm
Inner Frame:	2.5mx2.5m	Color:	Blue
Tools:	8''-25''	Origin:	CHINA
Highlight	25inches Rim Hydraulic Tire Press Machine , 7.5kw Forklift Tire Press Machine , Steel Plate Hydraulic Tire Press Machine

Product Description

SOLID TIRE PRESS MACHINE TP250

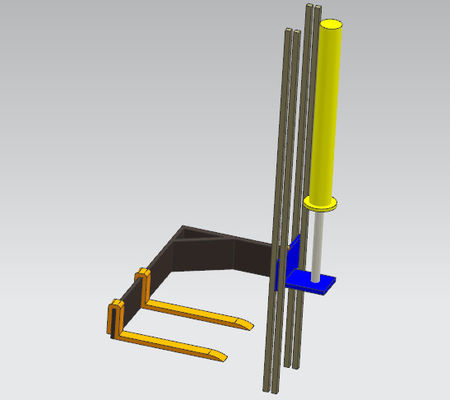

with customized lifting forks (up-down stroke 1500mm/fold-unfold 1500mm, load-bearing 1 ton)

Max cylinder stroke: 1.6m

Motor: 11kw 380v/60Hz

Solid Cushion size: 8’’- 25’’

Working frame:2.5m*2.5m

Color: Blue

Introduction

Professional equipment for amending or replacing solid tires or OTR tires.

2.5MN solid tyre pressing machine is a special equipment for solid tire loading and unloading,

It can also apply to the tyres below 25".

This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.

The hydraulic system of the machine consists of hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.

High pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 35MPa.

Product Features

Heavy duty frame: The construction is welded by large-scale beam and channel beam.
High-grade Hydraulic Cylinder: The biston rod is grinded and hard-chromium plated.
Easy pull and press into the rims.
Voltage and phase customized according to different power supply.

Model	TP250
Nominal pressure	2.5 MN
Work hydraulic	35 Mpa
Max Tire Size	25 Inches
Max Cylinder Stroke	1600 mm
Motor	11KW
Oil Tank Capacity	370 L
Inner working Size	2.5m*2.5m
Weight	6200 kg

Risk evaluation

1. Material hazards to people and the environment

This product is welded with a Q235 carbon steel plate, the material is non- toxic and harmless, the carbon content is moderate, the comprehensive performance is good, the strength, plasticity, and welding performance are well matched and durable.

2. Mechanical equipment handling

The mechanical equipment adopts a detachable frame, which is convenient for transportation. A cylinder like an oil cylinder will be protected by a frame to prevent it from colliding during transportation.

Motors and tools are packaged with a Non fumigation pallet and a wrapping film package, which is protected from moisture.

3. Risk of parts breaking during operation

The components are designed to be 1.5 times the strength of application, as long as the machine is not overloaded, there is no risk of breakage, and it is absolutely safe.

4. Danger relates to surfaces, edges or sharp corners The surface and edges are chamfered for the operation safety.

5. Dangers relates to speed changes The machine has no rotating parts.

6. Hazard protection related to moving parts
Moving parts run at low speed, people are strictly prohibited in the workspace

7. Requirements for protective covers
High-risk parts of the motor will have a protective cover.

8. Risk of assembly errors,
The assembly process is rigorously assembled in accordance with the mechanical rules, assembly equipment runs smoothly and has a long service life.

9.Fire hazard
The device has no combustibles.

10. Danger of explosion No hidden danger of explosion

11.Evaluation on maintenance of mechanical equipment Reasonable mechanical principle and simple to maintain.

Loading photos

Company Strength

1. All the Forklift relevant products and spare parts are selected originally from top-class manufacturers under own inspection, supported by skilled technicians.

2. standby for any technical query on-line or solution after-market.

3. Our commitment to service, knowledge and product availability has made us a One-Stop-Shop for our customers and their business needs.
