Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width

Certification
Good quality Forklift Traction Battery for sales
Good quality Forklift Traction Battery for sales
AUTOLAKER is professional in forklift maintenance. We are more like partners.

—— Mr. Sanchez

Laker is the best, I am impressed by their efficiency and precision.

—— Mr. Nassiri

I appreciate you are answering all the questions I have been sending, thanks a lot for the excellent follow up. The equipment is super good.

—— Ms. Vargas

We are satisfied with your batteries. Thank you Molly for your additional efforts.

—— Mr.Cvetkovic

I'm Online Chat Now

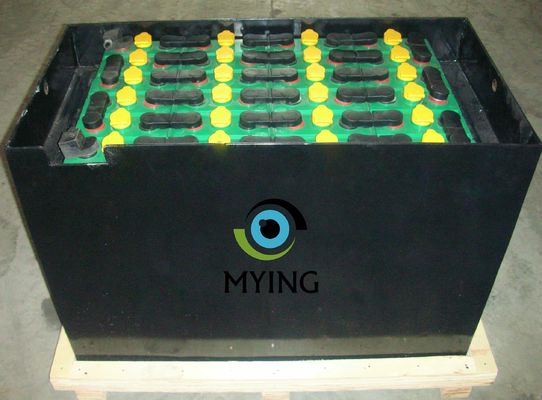

Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width

China Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width supplier
Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width supplier Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width supplier Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width supplier Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width supplier

Large Image :  Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width

Product Details:

Place of Origin: China
Brand Name: MYING
Certification: CE, TLC, ISO9001, ISO14001
Model Number: 48V 500Ah/5hrs

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Shrink Wrapped, Steel Tray, Wooden case
Delivery Time: 25 days After Order Confirmation and Deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Type: Forklift Battery Model: 48V 500Ah/5hrs
Cell Width: 198mm Nominal Voltage: 48V
Nominal Capacity: 500Ah/C5 Cycles: 1500times
Plates: Tubular Positive Plates Application: Electric Forklift
Certificates: CE IS09001 ISO14001 Cell Voltage: 2V

Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width







Type Lead Acid Traction Battery
Application Electric Forklift Truck

Standard

DIN standard
Technology Tubular Positive Plates
Model 48V 500Ah/5hrs
Cell Quantities 24 cells
Cell Voltage 2V
Connection Type Soft connection
Steel Tray Size Standard or Customized





Product Catalogs --- DIN standard

Type 5hr. Capacity(Ah)

Overall Dimension

(mm)

Wet Weight

(kg)

Poles

Cell Volt

(v)

3PzS150 150 65x198x288x319 9.8 2 2
4PzS200 200 83x198x288x319 12.7 2 2
5PzS250 250 101x198x288x319 15.5 2 2
6PzS300 300 119x198x288x319 18.3 2 2
7PzS350 350 137x198x288x319 21.2 2 or 4 2
8PzS400 400 155x198x288x319 24.0 2 or 4 2
9PzS450 450 173x198x288x319 26.8 2 or 4 2
10PzS500 500 191x198x288x319 29.6 2 or 4 2



Product Application



1. Electric forklift truck

2. Electric transporting cars

3. Electric stacker

4. Electric pallet truck

5. Tunnel/metro locomotives

6. Electric golf cart

7. Road vehicles and other deep cycle DC power supply equipment

Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width



Product Strength



1. High quality flooded lead acid battery

2. >= 1500 times cycle life.

3. High performance tubular positive plates

4. Meet IEC 60254 standard.

5. CE,ISO9001 and ISO14001.

6. Lower distilled water consumption
7. Environmental and healthy
8. Nice design and good quality
9. Easy to use and durable
10. Low current recharge
11. Competitive price

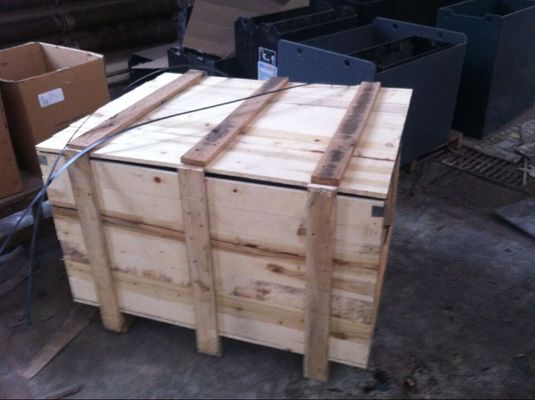

12. Wooden case packaging

13. Automatic watering syste and Argitation system.

14. Larger and thicker plate means less internal corrosion




Forklift/Traction battery’s use notice





For the safety of both operators and equipments, operators should conform to the rules as follows:

1. The operators must be trained specifically before they change, repair and charge the cells.

2. Any conductor should not be placed on the top of cells for protecting from short circuit, and keep the surface of the cell clean and dry.

3. When you operate, you should wear the goggles, rubber gloves, rubber shoes and rubber apron and some other protecting appliance to protect yourself.

4. When you mix electrolyte, you should first pour the sulfuric acid slowly into the water, and stir the mixture at the same time, so the sulfuric acid doesn’t settle on the bottom. Never pour water into the sulfuric acid, because a dangerous chemical reaction can occur, it may hurt you.

5. During the service, avoid over-discharge and violent discharge; otherwise the service life will be shortened.

6. During the service, the cells with PE separators may appear some matter like oil, it is natural phenomena.

7. The cells should be charged in time after discharge, avoid over-charging, otherwise the service life will be affected.

8. During any charge stage, the temperature of the electrolyte should be lower than 55℃ , if it is near to 55℃ , you should take measures to cool; if the temperature is hardly cooled down, the charge should be paused until the temperature is low enough.

9. During charge, smoke and flame are forbidden in the charging room for protecting from hydrogen explosion.

10. Check the bolts and connectors periodically, if they are corroded or damaged, adjust or change them in time.





FAQ



1. How to do the maintenance of battery?
1) Fill water:fill distilled water or deionized water according to electrolyte level, don’t fill too much distilled water in order to delay filling time, too much distilled water would cause lower specific gravity, electrolyte would spill over,and this situation would corrode metal box and cables, and effect battery’s service life and creepag.
2) Chaging:There is gas when charging, so need to keep ventilative environment, and no naked light. And the oxygen and acidic gas by charging would affect around environment. There would have electric arc when pull out the charging plug, please cut off the charger’s switch and then pull out the plug. There are much hydrogen after finish the charge, naked light is not allowed.

3) Equalizing charge:battery should need a equalizing charge every month(meanssmall charging current but long time charge), in order to keep battery’s capacity and long service life.

Method of equalizing charge:

Firstly charge the battery as regularly, after finish the charge,press the switch of equalizing charge,charge the battery 24-36 hours continuely. Within the equalizing charge,need to make the record of every single cell’s voltage, denstity and temperature, after finish the equalizing charge, need to adjust electrolyte’s density and level as per using manual.

4) Connector,leading wire,cap’s maintenance: must be operated by the professional engineer.

5) Clean:battery should keep surface to be clean, if surface has the dirty things would cause short circuit, also cause terminal and connectors to be corroded. Please use wet cloth to clean battery in order to avoid static electricity.If there is no leakage hole at the bottom of metal box, pleas avoid using water to clean the battery, in order there are too much water to corrode metal box, if there is leakage hole at the bottom of metal box, you can use water to clean the battery.



2. How to do the storage of forklift battery?
1) Storage location:do not make battery short circuit;there would cause short circuit after the rain, must keep the battery in the open air and shady location.
2)
 Used batter:used battery still have capacity, please keep the battery as per storage method.


3. How about Electrolyte’s operation?
1) Check density:use inhale densimeterto check density, do not spill electrolyte out from the battery, and make sure wear the protective cloth.

2) Other operation: Should refer to professional engineer, especially when fill the electrolyte

3) Electrolyte’s leakage:urgent handle is needed when battery’s turn over or destroy happens.

Electric Fork Truck Battery For Forklift , Pallet Jack Battery 198mm Cell Width
