REMA DIN160 Features
1.Specifically designed for the quick & opportunity charging of large battery capacities
2.Compatible with lead gel batteries and lithium-ion batteries
3.Complies with DIN VDE 0632-589 and DIN EN 1175 standards
4.Spring-supported contact system
5.Premium Cu-ETP copper contacts with silver plating & anti-tarnish coating
6.Acid-resistant housing structure
7.Fits cable sizes from 16 mm² to 70 mm²
8.Direct crimping for all cables without reducing bushings
9.Wide range of optional accessories
REMA DIN160 Advantages
1.Supports frequent short-term top-up and high-power rapid charging for industrial vehicles
2.Works with most traction batteries for warehouse electric equipment, wide universality
3.Meets European forklift industrial norms, ready for export to European and American markets
4.Stable and uniform contact pressure & High electrical conductivity
5.Ultra-low power transmission loss & Wear and corrosion resistance
6.Stands sulfuric acid mist and workshop grease, durable in harsh battery compartment environments
7.One connector matches equipment of different power levels, easier inventory management
8.Simplified installation with fewer spare parts, lower assembly labor cost
9.Multiple handle shapes & Optional auxiliary and pilot contacts & Optional air cooling ventilation system
REMA DIN160 Typical applications
- forklift trucks
- battery charging systems
- sweeper and RCC devices
REMA DIN Series Specification Comparison (80A / 160A / 320A)
| Item |
DIN80 |
DIN160 |
DIN320 |
| Rated Current |
80A |
160A |
320A |
| Rated Voltage |
150V DC |
150V DC |
150V DC |
| Recommended Cable |
≥16mm² (10–35mm²) |
≥35mm² (16–70mm²) |
≥95mm² (50–95mm²) |
| Typical Application |
Light pallet trucks, small sweepers |
Medium forklifts, AGVs, floor scrubbers |
Heavy-duty forklifts, large lithium battery fast charging |
| Main Contact Material |
Cu-ETP silver plated |
| Housing Material |
Grey PP-GF30 / Black PA-GF30 |
| Coding Pin Options |
Grey / Green / Yellow / Blue |
| Auxiliary Signal Contacts |
Optional (sold separately) |
| Air Cooling Adapter |
Optional |
REMA TEST REPORT
FAQ
Q1: What’s included in the standard set? Are signal terminals included?

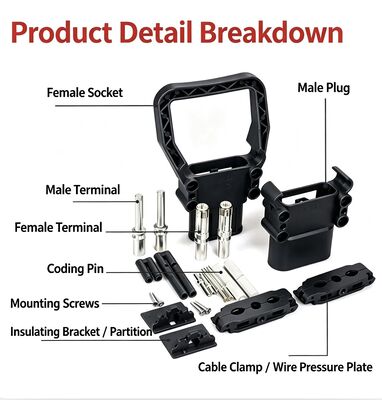

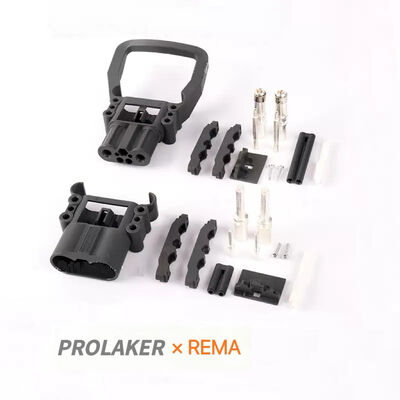

A1: Female head with handle, Male head without handle, main copper terminals, screws and grey coding pin.
Price does NOT include auxiliary signal pin.
Q2: Difference between grey & black housing?

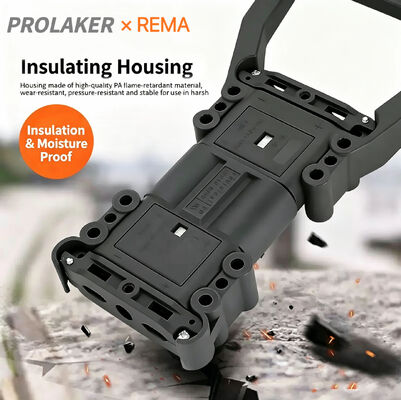

A2: Grey PP: Acid-resistant for battery bins; Black PA: Budget flame retardant for dry charging rooms.
Q3: What are color coding pins for?
A3: Prevent mismatched chargers/batteries. Grey(wet), Green(dry/gel), Blue(lithium), Yellow(universal).
Q4: What equipment fits this 160A connector?
A4: 24–96V forklifts, pallet trucks, AGVs, sweepers & lithium/lead-acid battery chargers.
Q5: Can I order single plug/socket instead of full set?
A5: Yes, single male or female units available. Signal pins still purchased separately.
