Quality 70x150mm Anti Vibration Battery Interconnect Wire Maintenance Free Copper Conductor For Forklift Packs factory
<
Quality 70x150mm Anti Vibration Battery Interconnect Wire Maintenance Free Copper Conductor For Forklift Packs factory
Quality 70x150mm Anti Vibration Battery Interconnect Wire Maintenance Free Copper Conductor For Forklift Packs factory
>

70x150mm Anti Vibration Battery Interconnect Wire Maintenance Free Copper Conductor For Forklift Packs

Brand Name: Frotek
Model Number: 70*150
Place of Origin: China
Certification: CE
Minimum Order Quantity: Negotiate
Price: Negotiate
Supply Ability: 500000 pcs per month
Delivery Time: 7 workdays after payment
Payment Terms: T/T,L/C,Western Union
Standard Packaging: Carton

Product Details


Highlight

Forklift lead acid battery cable

,

Maintenance free battery interconnect wire

,

Anti vibration forklift battery wire

Product Description

70 × 150: Four Questions Buyers Ask

Durable, maintenance free, anti-wear — the claims on a flexible link are easy to make and hard to check. These are the questions that actually decide whether the lead suits the truck.

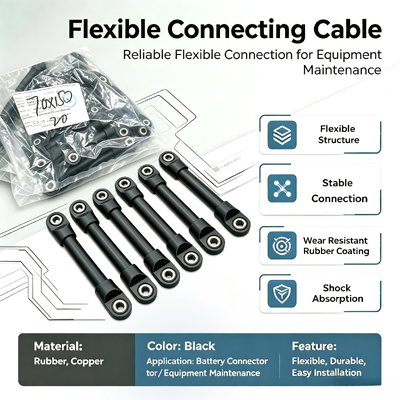

70x150 durable maintenance free forklift battery flexible cable

1. Is 70mm² the right section?

The section follows the current and the length of the run, not the size of the cable already on the truck. If the pack has been rebuilt with different cells, or a charger of higher output has been fitted, the old figure may no longer be right. The practical check is temperature: after a full charge, a lead noticeably warmer than the one beside it is carrying more than it should.

2. Why 150mm and not 130mm?

Centre distance is set by the pack, not by preference. A 150mm lead on a 130mm gap forces a loop that can foul the tray; a 130mm lead on a 150mm gap ends up under tension, and the load lands on the lugs. Measure the assembled pack, cell face to cell face, and order to that figure.

3. What does “maintenance free” mean for a cable?

It means nothing needs to be added or checked between services — no greasing, no re-taping. It does not mean inspection can be skipped. Look at the lugs at each battery service: discoloration, white or green deposit, or a jacket that has hardened where it leaves the terminal are all the same message.

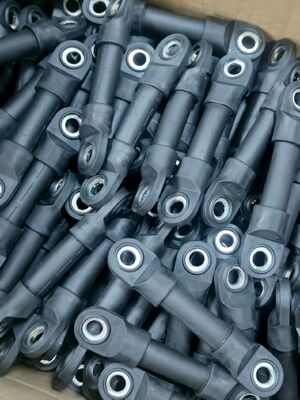

flexible battery link cable copper rubber

4. Anti-wear against what, exactly?

Against the three contacts a link cable actually has: the tray edge it rests on, the neighbouring cell it touches, and the floor if it is dropped during a swap. A rubber jacket resists all three far better than a hard plastic insulation, which is why the material matters more than the marketing word.

Flexible linkBends with the pack, keeps contact pressure, absorbs movement at the terminal
Stiff cable of the same sectionSame current, but the movement transfers to the lug and the post
Undersized flexible cableFlexes well, runs warm, ages the insulation from inside

Fitting Notes

Fit the link with the terminal flat against the post, tighten to the battery maker's figure, and re-check after the first charge. A link that needs tightening twice has either the wrong length or a damaged post — and neither is solved by tightening it a third time.

Keeping a Spare

A pack of links is a cheap insurance policy. One spare 70 × 150 in the store turns a broken connection during a shift into a fifteen-minute job, and it means the failed lead can be examined properly instead of being refitted in a hurry.

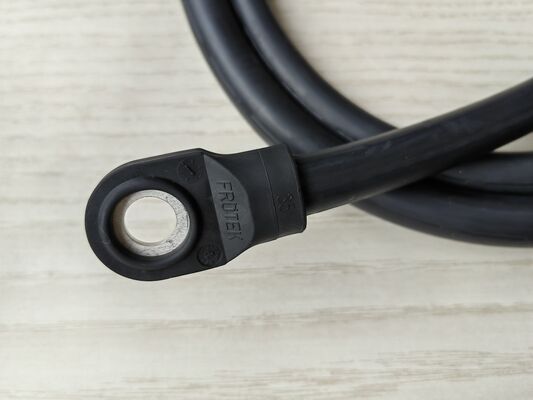

70x150 battery cable assembly

Ordering

Send the centre distance, the section and the terminal type; where a pack needs several links, send each position. Production follows those figures, and the leads arrive as a matched set rather than as near-enough sizes to be trimmed on site.

What “Durable” Should Mean on a Purchase Order

Durable is not a specification. On an order it becomes three checkable things: a conductor that is copper rather than a coated substitute, a jacket that stays supple at the temperature of a charging room, and a termination that holds its torque after a hundred charge cycles. Ask for those three and the word takes care of itself.

It is also worth writing the centre distance on the purchase record rather than the model code alone. Six months later, when the same pack needs another link, the figure is what makes the repeat order identical — and identical is what keeps a fleet simple.

When to Replace Rather Than Re-Terminate

Re-terminating is a reasonable repair when the copper at the end is bright and the jacket is still flexible. It is the wrong repair when the strands are discoloured, when the jacket has hardened where it meets the lug, or when the same terminal has come loose twice. In those cases the corrosion is already running under the insulation and a new termination simply moves the failure point a few centimetres along the cable.

Product Highlights

70x150 flexible link cable for forklift lead acid batteries: durable, maintenance free and anti-wear, with a copper conductor and rubber jacket. Centre distance made to your pack.
