The female terminal is installed on battery side, matched with DIN320 male plug on charger/electric vehicle side, widely used for electric forklifts, floor sweepers, RCC cleaning machines and battery charging power cabinets.
It adopts spring-loaded silver-plated Cu-ETP copper contacts, acid-proof flame retardant housing, configurable coding pins, air cooling air adapter, detachable handle, plus 1 pair auxiliary contacts and 1 pair pilot signal contacts to realize battery type & voltage anti-mismatch protection.
Specifications
Item Specification Product Name Male / Female Forklift Battery Connector Style REMA-Style, compatible with REMA DIN320 series Continuous Rated Current 320A Insulation Voltage Up to 150V DC (typical working voltage 24-96V DC) Dielectric Strength 2500V DC (in-house laboratory test) Housing Material Glass-fiber reinforced PA66, acid-resistant Contact Material High-conductivity copper, silver-plated Protection Degree IP20 Operating Temperature -25°C ~ +105°C Applicable Cable 50 mm² / 70 mm² / 95 mm² Reference Standard DIN VDE 0623-589, EN 1175-1 Color Black
Item Specification Product Name Male / Female Forklift Battery Connector Style REMA-Style, compatible with REMA DIN320 series Continuous Rated Current 320A Insulation Voltage Up to 150V DC (typical working voltage 24-96V DC) Dielectric Strength 2500V DC (in-house laboratory test) Housing Material Glass-fiber reinforced PA66, acid-resistant Contact Material High-conductivity copper, silver-plated Protection Degree IP20 Operating Temperature -25°C ~ +105°C Applicable Cable 50 mm² / 70 mm² / 95 mm² Reference Standard DIN VDE 0623-589, EN 1175-1 Color BlackItem Specification Product Name Male / Female Forklift Battery Connector Style REMA-Style, compatible with REMA DIN320 series Continuous Rated Current 320A Insulation Voltage Up to 150V DC (typical working voltage 24-96V DC) Dielectric Strength 2500V DC (in-house laboratory test) Housing Material Glass-fiber reinforced PA66, acid-resistant Contact Material High-conductivity copper, silver-plated Protection Degree IP20 Operating Temperature -25°C ~ +105°C Applicable Cable 50 mm² / 70 mm² / 95 mm² Reference Standard DIN VDE 0623-589, EN 1175-1 Color Black
项目 参数 产品名称 公/母头叉车电池连接器 类型 REMA款式,兼容REMA DIN320系列 额定持续电流 320A 绝缘电压 最高直流150V(典型工作电压24-96V DC) 介电强度 直流2500V(工厂内部实验室测试) 外壳材质 玻纤增强PA66,耐酸 触点材质 高导电铜,镀银 防护等级 IP20 工作温度 -25°C ~ +105°C 适配线缆截面 50mm² / 70mm² / 95mm² 参考执行标准 DIN VDE 0623-589,EN 1175-1 颜色 黑色
| Product Name |
Female Forklift Battery Connector |
| Style |
REMA‑Style, compatible with REMA DIN320 series |
| Continuous Rated Current |
320A |
| Insulation Voltage |
Up to 150V DC (typical working voltage 24‑96V DC) |
|
Dielectric Strength
|
2500V DC (in‑house laboratory test)
|
|
Standard Housing Material
|
PP-GF30, acid resistant, halogen-free
|
|
Contact Material
|
High‑conductivity copper, silver‑plated
|
|
Withstand Test Voltage
|
2kV AC
|
|
Operating Temperature
|
-20℃ ~ +105℃
|
|
Applicable Cable
|
50 mm² / 70 mm² / 95 mm²
|
|
Flammability Grade
|
UL94 V-0
|
|
Color
|
Black
|
项目 参数 产品名称 公/母头叉车电池连接器 类型 REMA款式,兼容REMA DIN320系列 额定持续电流 320A 绝缘电压 最高直流150V(典型工作电压24-96V DC) 介电强度 直流2500V(工厂内部实验室测试) 外壳材质 玻纤增强PA66,耐酸 触点材质 高导电铜,镀银 防护等级 IP20 工作温度 -25°C ~ +105°C 适配线缆截面 50mm² / 70mm² / 95mm² 参考执行标准 DIN VDE 0623-589,EN 1175-1 颜色 黑色
Product Display
Product Advantages
- High-current capacity: 320A continuous current, fits large-capacity traction batteries & forklift fast-charging
- Stable connection: Silver-plated copper spring contacts, low power loss and low heat generation
- Durable housing: Glass-fiber reinforced PP-GF30, acid and impact resistant for harsh workshop environments
- Complete safety structure: Built-in auxiliary and pilot contacts, compatible with coding pins for anti-mismatch protection
- Multiple optional accessories: Detachable handle, air cooling adapter and various coding pins are available

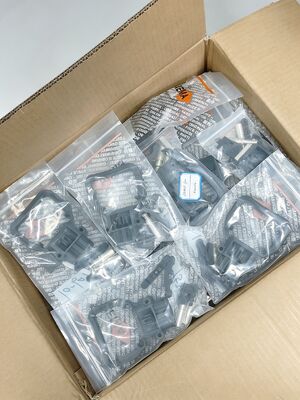

- Individual sealed-bag packing, convenient for stock management and resale
- Strict pre-shipment testing ensures stable and reliable quality
- OEM & ODM services can be provided for bulk orders
Application
The REMA DIN320 female battery connector is widely used for power connection of electric industrial vehicles and battery charging equipment, including but not limited to:
- Electric Forklift Trucks — sit-down counterbalance forklifts, reach trucks
- Pallet Trucks — electric pallet jacks, walkie pallet trucks
- Stackers — electric stacker trucks, order pickers
- Tow Tractors — warehouse logistics electric tow tractors
- Floor Cleaning Machines — scrubbers, sweepers
- Battery Charging Cabinets & Traction Energy Storage Systems
Compatible Forklift Brands: Heli, EP, Toyota, Still, Jungheinrich, Linde, Hyster, Crown, and more.
More Models
We offer a complete range of forklift battery connectors to meet different current requirements:
| Model |
Rated Current |
Application |
| DIN80 |
80A |
Small pallet trucks, light duty equipment
|
| DIN160 |
160A |
Medium forklifts, electric stackers
|
| DIN320 |
320A |
Heavy-duty forklifts, large-capacity traction batteries
|
FAQ
Q: What is the brand of this connector?
A: The brand of this connector is REMA, model DIN320.
Q: What is the minimum order quantity?
A: MOQ is 1 piece. Sample orders are welcome.
Q: Can you customize the connector?
A: Yes, we support OEM/ODM orders. Customized cable length, color, and labeling are available for bulk orders.
Q: Does this connector come with a warranty?
A: Yes, all our products undergo strict quality testing. We offer quality assurance and after-sales support.
