Widely applied for battery connection & charging on electric forklifts, pallet trucks, stackers and other industrial electric vehicles.
Specifications
Item Specification Product Name Male / Female Forklift Battery Connector Style REMA-Style, compatible with REMA DIN320 series Continuous Rated Current 320A Insulation Voltage Up to 150V DC (typical working voltage 24-96V DC) Dielectric Strength 2500V DC (in-house laboratory test) Housing Material Glass-fiber reinforced PA66, acid-resistant Contact Material High-conductivity copper, silver-plated Protection Degree IP20 Operating Temperature -25°C ~ +105°C Applicable Cable 50 mm² / 70 mm² / 95 mm² Reference Standard DIN VDE 0623-589, EN 1175-1 Color Black
Item Specification Product Name Male / Female Forklift Battery Connector Style REMA-Style, compatible with REMA DIN320 series Continuous Rated Current 320A Insulation Voltage Up to 150V DC (typical working voltage 24-96V DC) Dielectric Strength 2500V DC (in-house laboratory test) Housing Material Glass-fiber reinforced PA66, acid-resistant Contact Material High-conductivity copper, silver-plated Protection Degree IP20 Operating Temperature -25°C ~ +105°C Applicable Cable 50 mm² / 70 mm² / 95 mm² Reference Standard DIN VDE 0623-589, EN 1175-1 Color BlackItem Specification Product Name Male / Female Forklift Battery Connector Style REMA-Style, compatible with REMA DIN320 series Continuous Rated Current 320A Insulation Voltage Up to 150V DC (typical working voltage 24-96V DC) Dielectric Strength 2500V DC (in-house laboratory test) Housing Material Glass-fiber reinforced PA66, acid-resistant Contact Material High-conductivity copper, silver-plated Protection Degree IP20 Operating Temperature -25°C ~ +105°C Applicable Cable 50 mm² / 70 mm² / 95 mm² Reference Standard DIN VDE 0623-589, EN 1175-1 Color Black
项目 参数 产品名称 公/母头叉车电池连接器 类型 REMA款式,兼容REMA DIN320系列 额定持续电流 320A 绝缘电压 最高直流150V(典型工作电压24-96V DC) 介电强度 直流2500V(工厂内部实验室测试) 外壳材质 玻纤增强PA66,耐酸 触点材质 高导电铜,镀银 防护等级 IP20 工作温度 -25°C ~ +105°C 适配线缆截面 50mm² / 70mm² / 95mm² 参考执行标准 DIN VDE 0623-589,EN 1175-1 颜色 黑色
| Product Name |

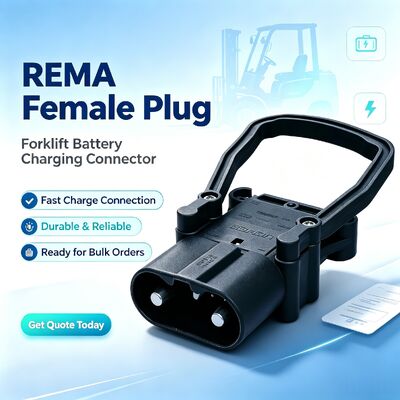

Female Forklift Battery Connector |
| Style |
REMA‑Style, compatible with REMA DIN320 series |
| Continuous Rated Current |
320A |
| Insulation Voltage |
Up to 150V DC (typical working voltage 24‑96V DC) |
| Dielectric Strength |
2500V DC (in‑house laboratory test) |
| Housing Material |
Glass‑fiber reinforced PA66, acid‑resistant |
| Contact Material |
High‑conductivity copper, silver‑plated |
| Protection Degree |
IP20 |
| Operating Temperature |
-25°C ~ +105°C |
| Applicable Cable |
50 mm² / 70 mm² / 95 mm² |
| Reference Standard |
DIN VDE 0623‑589, EN 1175‑1 |
| Color |
Black |
项目 参数 产品名称 公/母头叉车电池连接器 类型 REMA款式,兼容REMA DIN320系列 额定持续电流 320A 绝缘电压 最高直流150V(典型工作电压24-96V DC) 介电强度 直流2500V(工厂内部实验室测试) 外壳材质 玻纤增强PA66,耐酸 触点材质 高导电铜,镀银 防护等级 IP20 工作温度 -25°C ~ +105°C 适配线缆截面 50mm² / 70mm² / 95mm² 参考执行标准 DIN VDE 0623-589,EN 1175-1 颜色 黑色
Product Display

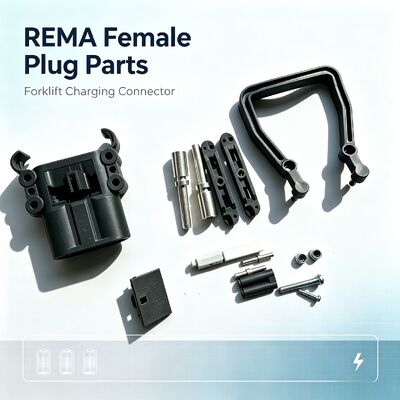

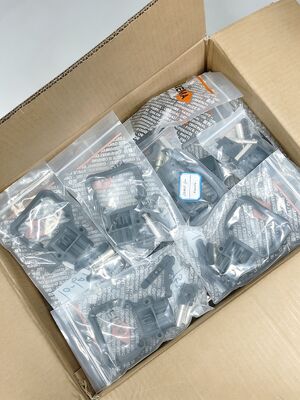

EC320A Female Connector Kit - Individual Packaging Bulk Packing - Ready for Shipment
Product Advantages
- High‑current capacity: 320A continuous current, fits large‑capacity forklift batteries & fast‑charging.
- Stable connection: Silver‑plated copper contacts, low power loss.
- Durable housing: Glass‑fiber reinforced PA66, acid & impact resistant for tough workshop environments.
- Direct drop‑in replacement for REMA DIN320 series, no modification needed.
- Individual sealed‑bag packing, convenient for stock and resale.
- Strict pre‑shipment testing for consistent reliability.
- OEM & ODM service available for bulk orders
Application
The EC320A forklift battery connector is widely used in various electric industrial vehicles, including but not limited to:
1.Electric Forklift Trucks — sit-down counterbalance forklifts, reach trucks
2.Pallet Trucks — electric pallet jacks, walkie pallet trucks
3.Stackers — electric stacker trucks, order pickers
4.Tow Tractors — electric tow tractors for warehouse logistics
5.Golf Carts & Utility Vehicles — industrial utility vehicles
6.Floor Cleaning Machines — scrubbers, sweepers
Compatible Forklift Brands: Heli (合力), EP (中力), Toyota, Still, Jungheinrich (永恒力), Linde (林德), Hyster, Crown, and more.
More Models
We offer a complete range of forklift battery connectors to meet different current requirements:
| Model |
Rated Current |
Application |
| EC80 |
80A |
Small pallet trucks, light duty |
| EC160 |
160A |
Medium forklifts, stackers |
| EC320 |
320A |
Heavy duty forklifts, large capacity |
FAQ
Q: What is the brand of this connector?
A: Our brand is Prolaker. The EC320A is a high-quality replacement fully compatible with REMA DIN 320 series connectors.
Q: What is the minimum order quantity?
A: MOQ is 1 piece. Sample orders are welcome.
Q: Can you customize the connector?
A: Yes, we support OEM/ODM orders. Customized cable length, color, and labeling are available for bulk orders.
Q: Does this connector come with a warranty?
A: Yes, all our products undergo strict quality testing. We offer quality assurance and after-sales support.
