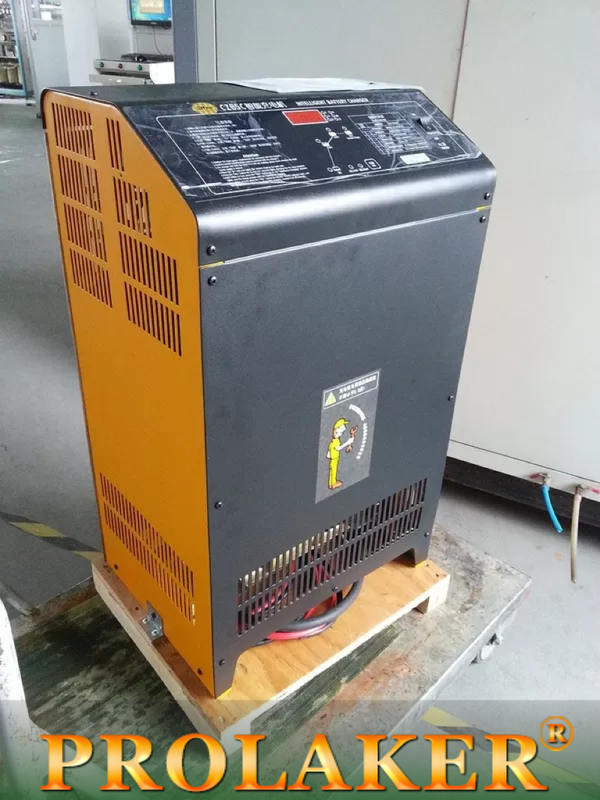

High Efficiency CZB5C 80V 100A Intelligent Charger for Forklift Batteries
Product Details
| Model: | CZB5C 80V/100A | Type: | Forklift Battery Charger |
|---|---|---|---|
| Output Voltage: | 80V | Output Current: | 100A |
| Brand: | LAKER | Technology: | Silicon-Controlled Rectifier |
| Battery Parameter: | 80V 500-800Ah | Size: | 526*360*882mm |
| Highlight: | Forklift Battery Charger, Lorry Battery Charger | ||
| Highlight |
80V forklift battery charger,100A intelligent battery charger,high efficiency forklift charger |
||
Product Description
Introduction
CZB5C series intelligent charger is most advanced intelligent charger in domestic China with unique advanced technology and super stable features. With the optimized Wa curves, with the application of microprocessor control technology and intelligent dynamic regulating charging technology, so the charging can penetrate into inside of battery plate to reach a complete charging and during the charging process, keep the battery in the state of micro scale bubbling to reduce the evaporating of electrolytic obviously to raise the charging efficiency and battery working life. The product has the feature of perfect function, smart outlook, new man-machine interface, high power factor, energy saving with complete range of type and specification,desktop and vertical stand cubics; it is an idea choice for wide range of customers.
Product Catalogs
| Specification | Input current A | Input power kVA |
Output current DC A |
Battery parameters | outline dimension mm |
Net weight kg |
|||
| @220V | @380V | @415V | V | Ah | |||||
| 8.5h-11h | |||||||||
| D48V/55A | 10.8 | 6.3 | 5.7 | 4.1 | 55 | 48 | 320-440 | 466×361×785 | 62 |
| D48V/65A | 12.8 | 7.4 | 6.8 | 4.9 | 65 | 48 | 375-520 | 466×361×785 | 65 |
| D48V/80A | 15.7 | 9.1 | 8.3 | 6.0 | 80 | 48 | 465-640 | 466×361×785 | 68 |
| D48V/100A | 19.7 | 11.4 | 10.4 | 7.5 | 100 | 48 | 580-800 | 526×360×882 | 86 |
| D48V/120A | 23.6 | 13.7 | 12.5 | 9.0 | 120 | 48 | 700-960 | 526×360×882 | 95 |
| D80V/65A | 21.3 | 12.3 | 11.3 | 8.1 | 65 | 80 | 375-520 | 526×360×882 | 87 |
| D80V/70A | 23.0 | 13.3 | 12.2 | 8.8 | 70 | 80 | 405-560 | 526×360×882 | 87 |
| D80V/80A | 26.2 | 15.2 | 13.9 | 10.0 | 80 | 80 | 465-640 | 526×360×882 | 89 |
| D80V/100A | 32.8 | 19.0 | 17.4 | 12.5 | 100 | 80 | 580-800 | 526×360×882 | 95 |
| D80V/120A | 39.4 | 22.8 | 20.9 | 15.0 | 120 | 80 | 700-960 | 526×360×882 | 107 |
Product Features
- The Voltage and current double closed-loop framework is applied in the PID control technology. This device can achieve dynamic tracking and automatic adjustment of charge parameters.
- Nixie tube would display charger parameters such as battery voltage, charge current, capacity and recharged time. It could als show the code of charging curve and fault. High-intensity LED lamp would indicate running state of this charging unit.
- Functions of automatic detection, delaying and soft-start, Function of temperature compensation. The voltage of tipping point of gas emission would change with the temperature.
- Tis device could also record data as the end of recharge for 30 times.
- Protection and alarm functions of open crcuit, reverse connection, over load and short circuit breakdown.
- Protection and alarm functions of overheat fault of transformer and module.
- Equalization charge could ensure caacity consistency of battery packs, function of automatic initial charge, function of desulfuration charge.
Our Service
We will provide the best service for user both during selling and after-sales. Welcome the customer to choose our products. Please, inform us the type and specification of battery, we can recommend the most suitable charger for you.
