Product description
This battery features small size, light weight, large capacity and long service life. It is designed for exceptional performance and high reliability, and is compatible with over 100 forklift brands and more than 800 models.
Our batteries are suitable for various types of vehicles, including electric counterbalance forklifts, high-level warehouse trucks, pallet stackers, order pickers, pallet trucks and tow tractors.
Key features
l High performance tubular positive plates with glass fibre gauntlet
l 1500 times cycle life
l Meet IEC 60254 standard
l Automatic-water filling system and electrolyte indicator LED system is optional
l High conductive grid structure - low current resistance
l Low maintenance technology reduced watering requirement to 4-6 times per year.
l Perforated PVC sleeved separator
l Low maintenance lead alloy
l Electrostatic Baked epoxy coating
l Battery Water Level Smart Indicator
Product parameter
|
Product name
|
Lead-acid battery
|
|
Voltage
|
48V
|
|
Capacity
|
400Ah
|
|
Size
|
970*600*465mm
|
|
Connection method
|
weld
|
|
Cycles
|
1500 cycles
|
|
Socket model
|
SB175 grey
|
|
Cable length,diameter
|
positive:1050mm
negative:650mm 50mm²
|
|
Vehicle model
|
CPD10-FJ1 CPD15-FJ1
|
Application
Our Traction Lead Acid Battery Pack is specifically designed for industrial use. It is built to withstand the harsh working conditions of warehouses, logistics, manufacturing, and construction sites. Its heavy-duty construction and reliable power supply make it a trusted choice for industrial equipment.Our batteries are also suitable for various types of vehicles, including electric counterbalance forklifts, high-level warehouse trucks, pallet stackers, order pickers, pallet trucks and tow tractors.
Technical drawing

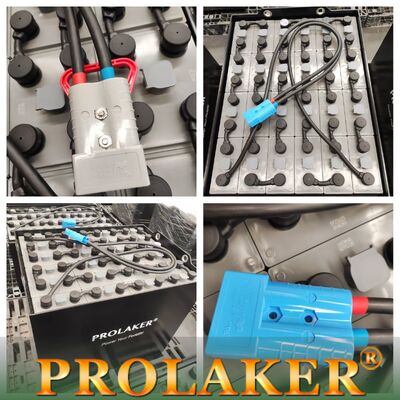

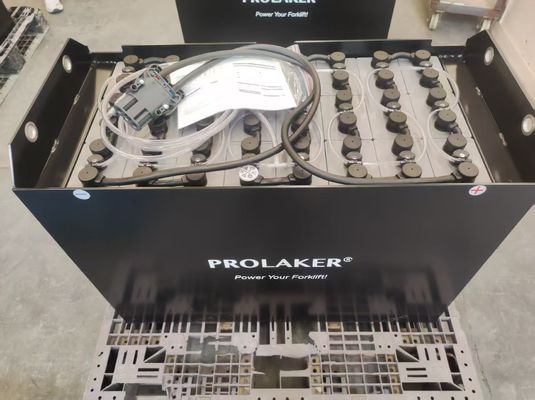

Product display
About us
Main Characteristics :
Wide-Ranging Compatibility: Works with more than 100 forklift brands and 800-plus models.
Extended Charge Cycle Life: Boasting 1650 charge cycles (around 6 years), these batteries are built to last.
Extra Capacity: Every battery provides 10% more capacity than standard requirements, ensuring reliable power output.
Slow Discharge Rate: The annual discharge rate is just 5%, which helps prolong the battery's service life.
Strict Factory Inspections: Each battery goes through 37 thorough quality tests before being shipped out.
Dedication to Quality: We stand by no mislabeling, reconditioning, or reselling of our products. If such issues occur, we promise to provide compensation.
Quality Guarantees:
Authentic and Brand-New: All products are completely new and come fully charged.
Long Life with Minimal Decay: Designed to be used for over 5 years, with an annual discharge decay of only 5%.
Secure Soft Connection Design: Lowers failure chances, makes maintenance easier, and stops liquid leakage and short circuits.
Tough Foam Plastic Enclosure: Our foam immersion plastic technique offers protection against corrosion.
High-Quality Battery Cells: Made using multi-alloy die-casting, ensuring excellent corrosion resistance and consistent performance across cells.
Cutting-Edge Technology: Equipped with fully automated heat sealing, the batteries are resistant to shocks, leaks, and high temperatures.
Imported non-woven tubes and PE bag separators boost oxygen recombination efficiency, keeping the battery functioning at its best.
At LAKER, we are committed to providing comprehensive service from the initial quote to final delivery. Our dedication to quality, expertise, and product availability has made us a trusted partner for our customers.
All forklift-related products are sourced from top manufacturers under our brands MYING and LAKER. Our skilled technicians are always available for online technical support and aftermarket solutions.
