Product Overview

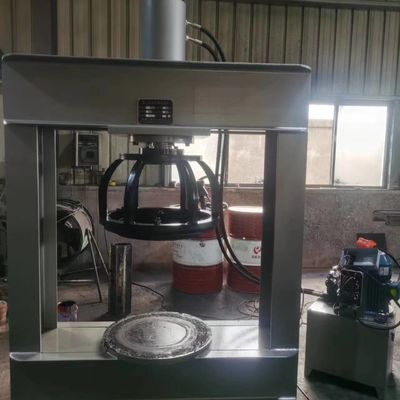

The TP120 - E solid tire mounting machine is meticulously crafted from steel plates. With a rated pressure of 120 tons, it is specifically designed for the dismounting and mounting of solid tires with rims ranging from 8 inches to 15 inches (compatible with tire specifications 825 - 15/300 - 15). It is widely used in the maintenance scenarios of solid tires for forklifts, engineering machinery, etc., enabling efficient and precise tire handling operations.
Core Technical Parameters
TP120 - E Solid Tire Mounting Machine
| Model |
TP120-E |
| Nominal pressure |
1.2 MN |
| Work hydraulic |
15 Mpa |
| Max Tire Size |
15 Inches |
| Max Cylinder Stroke |
600 mm |
| Motor |
4 KW |
| Oil Tank Capacity |
90 L |
| Size |
L1300xW600xH2050 mm |
| Weight |
1000 kg |
Core Product Advantages
High - Strength Structural Design
The fuselage is welded from high - quality steel plates and undergoes strict stress treatment. It has excellent deformation and impact resistance, can withstand long - term high - frequency heavy - duty operations, ensures stable equipment operation, and is suitable for complex maintenance environments.
Precise Hydraulic System
The hydraulic system has a stable pressure of 15Mpa, and the hydraulic cylinder stroke is precisely controllable (maximum 500mm). Combined with a high - precision pressure plate, it can ensure uniform fitting and precise handling of tires and rims, avoiding damage to tires or rims due to uneven pressure.
User - friendly Matching Tooling
Equipped with exclusive tooling such as TOOL - I (press barrel), TOOL - II (guide ring), TOOL - III (backing ring), and TOOL - IV (guiding rod), covering 8 - inch to 15 - inch rims. The tooling can be easily replaced, enabling quick handling of different specifications of tires, and improving operation efficiency and compatibility.
Detailed Operation Process
Tooling Selection and Preparation
According to the tire rim specifications (8 inches - 15 inches), select the corresponding TOOL series tooling (such as TOOL - I to TOOL - IV for 8 - inch rims). Check for wear and deformation on the tooling surface to ensure precise alignment of the tooling with the equipment.
Maintenance Guide
Daily Maintenance
After daily operation, clean the oil stains and metal debris on the equipment surface to prevent debris from entering the hydraulic system or affecting the tooling accuracy. Check the wear of the tooling. If there is slight wear, repair it in time; if there is severe wear, replace the corresponding tooling to ensure handling accuracy.
Regular Maintenance
Weekly: Detect the cleanliness of the hydraulic oil. If the oil is turbid and the viscosity decreases, replace it with suitable anti - wear hydraulic oil in time (refer to the recommended model in the equipment manual).
Every 3 months: Disassemble the hydraulic cylinder, check the wear of the piston rod surface coating and the aging of the seals. If necessary, replace the seals and repair the coating to ensure the sealing and smooth operation of the hydraulic system.
Annually: Conduct non - destructive flaw detection on the welded structure of the equipment to identify potential structural hazards and ensure long - term safe and stable operation of the equipment.
Application Scenarios and Compatibility
Forklift Maintenance in Logistics Warehousing
Suitable for quick replacement of solid tires (such as specifications 825 - 15/300 - 15) of 3 - 10 - ton forklifts. In logistics parks, warehouses and other sites, it helps maintenance personnel to efficiently complete tire handling, reducing equipment downtime and ensuring the continuity of logistics operations.
After - sales Maintenance of Engineering Machinery
Can be used for the maintenance of solid tires of small engineering machinery (such as small loaders, road rollers, etc.). With a pressure of 120 tons and precise tooling, it meets the handling needs of heavy - duty tires of engineering vehicles, suitable for the operation scenarios of after - sales service outlets and repair factories of engineering machinery.
Tire Service Outlets
As professional tire maintenance equipment, it covers the handling of solid tires of 8 - inch to 15 - inch. With complete tooling, it is compatible with the service of solid tires of different brands (such as Michelin, Bridgestone, etc.), improving the maintenance capacity and business scope of the outlets.
Customization and Service Support
Customized Adaptation
If customers have special tire specifications, power adaptation (such as non - 380V voltage) and other needs, they can contact the manufacturer for customized development, including tooling customization, electrical system adjustment, etc., to meet personalized operation scenarios.
