REMA Series Male Female Forklift Battery Charger Plug, Acid-Proof PP Power Connector

A Charger Plug Is Only as Good as Its Mating Half

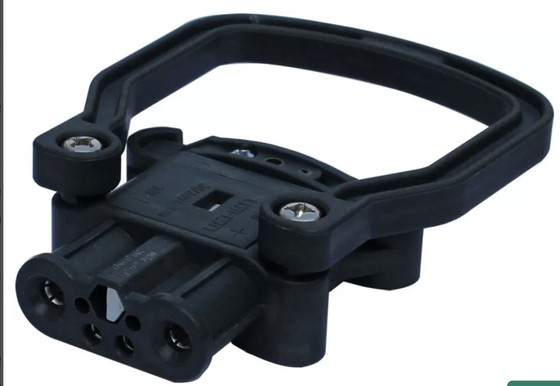

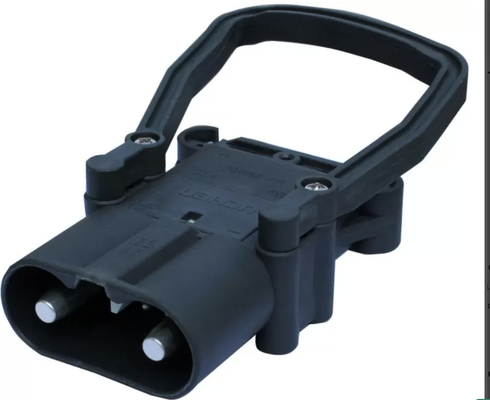

Charging connectors are bought in pairs for a reason. The male plug on the charger lead and the female socket on the battery lead wear together, and replacing one half while the other is already worn simply moves the heat to the newer part. The REMA160 set is supplied as a matched male and female pair rated 160A at 600V, built for acid-proof battery room duty.

Specifications

Why the Pair Matters More Than the Plug

Contact resistance is a property of the interface, not of one component. If a new male plug is mated to a socket with flattened contact springs, the joint still runs warm and the new part takes the blame. Supplying both halves together is the only way to guarantee the interface was designed as a unit.

That is also why the set is specified for the charger lead rather than the truck: the plug and socket see the same number of cycles, so they reach the end of their life at roughly the same time.

• Matched male and female pair, one interface
• 160A / 600V rating for charger duty
• T2 silver-plated terminals on both halves
• Acid-proof construction for battery rooms

Acid-Proof, Not Just Acid-Resistant

A battery room is a mildly corrosive environment: sulphuric acid mist settles on everything within a metre of a vent cap, and the connector sits right there. The housing material is chosen to tolerate that exposure rather than to look good on a sample bench, and the terminal plating resists the surface film that would otherwise raise resistance.

For workshops that wash down floors, the same property matters after the hose has been put away, because the residue left behind is exactly what attacks an unprotected contact.

Fitting a Set on an Existing Charger

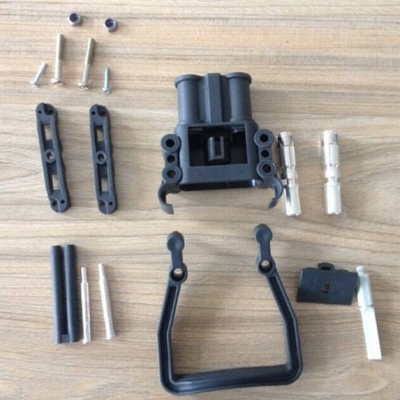

Both halves are terminated with standard crimping tools, so a charger can be re-fitted during a normal service slot rather than sent out for repair. Check cable section against the terminal before cutting, keep the lead length generous enough to route without strain, and pull-test each crimp before the housing is closed.

Stock sets ship in three to five working days; tailored builds follow in five to seven days after payment, and samples can be produced to drawing where a charger has an unusual lead arrangement.

Charger-Side Versus Battery-Side Wear

The two halves of a charging set do not wear at the same rate. The charger-side plug is mated by the same person, at the same height, several times a day; the battery-side socket is mated wherever the truck happens to be parked. Supplying them as a matched pair keeps the contact geometry identical on both sides, which is what makes the wear predictable.

Documentation and Repeat Orders

Certificate copies and inspection records can be supplied with the shipment. For repeat orders the lot reference stays on file, so a warranty question about a specific set can be traced back to the run it came from rather than answered from memory.

Private-label packing is available for distributors, and samples can be built to drawing where a charger has a non-standard lead arrangement.

Why the Set Is Rated at 160A

160A matches the typical charger output on medium counterbalance trucks: enough to recharge a traction battery overnight without forcing a cable section that would be awkward to handle. Choosing a connector above the charger rating adds cost and weight; choosing below it adds heat. Matching the two is the whole point of the specification.

For sites that also run 80A or 320A equipment, the same REMA family covers those ratings, so the charging bay keeps one connector style across the fleet.

Sets are packed as a pair with the lot reference on the carton, so a repeat order can be matched to the same specification without re-confirming the details each time.

Frequently asked questions

Is the male and female supplied together?
Yes, the set is a matched pair: charger-side plug and battery-side socket are supplied as one item.

Can I replace only the plug?
You can, but if the mating socket is already worn the joint will still run warm, so replacing the pair is the reliable option.

What cable does it take?
Terminals accept the cable section used on 160A charger leads; confirm the section on your charger before ordering.

Is it suitable for outdoor charging bays?
It is built for acid-proof battery room duty; for exposed outdoor bays, keep the connector under cover when not mated.
