Product Selection
The Prolaker Type A series L-shaped Roll Cage covers a variety of standard models and supporting accessories, supporting off-the-shelf purchase and full-dimensional customization. It can accurately match the material turnover characteristics of different industries, with core customization dimensions including size, load capacity, casters, and laminates, to meet the needs of various scenarios on demand.

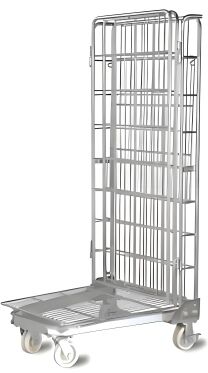

Type A L-Shaped Roll Cage
Available in mesh panel and iron panel versions, with a standard size of L800*W600*H1750mm, supporting size customization (length, width, height adjustable on demand); the standard single-layer load capacity is 300-500kg, and the load capacity level can be customized according to material weight requirements; the default caster configuration is suitable for basic scenarios, and the caster type, size and braking method can also be customized as needed. It can be directly folded into an L-shape when unloaded without disassembling parts, saving more than 75% of storage space when idle, suitable for short-distance turnover of light and medium materials.
Accessories include 4-8 inch PU/nylon/polypropylene casters (fixed/swivel with brake), traction hooks, partition nets, dust covers, label holders, reinforced laminates, etc. They can be purchased separately as customization supplements and also support after-sales replacement to meet customization adjustment needs.
Technical Parameters
The Prolaker Type A series L-shaped Roll Cage cover multiple basic models and matching accessories, supporting both in-stock purchasing and full-dimensional customization. They can precisely match the material turnover characteristics of different industries. Core customization dimensions include size, load-bearing capacity, casters, and shelves, adapting to various scenario requirements.
Type A L-shaped Roll Cage
Available in mesh and steel plate versions. Standard dimensions are L800*W600*H1750mm, with customizable dimensions (length, width, and height adjustable as needed). Standard single-layer load capacity is 300-500kg, with load-bearing levels customizable according to material weight requirements. The default caster configuration is suitable for basic scenarios, but caster type, size, and braking method can also be customized as needed. When unloaded, it can be folded directly into an L-shape without disassembling parts, saving over 75% of storage space when idle, suitable for short-distance turnover of light to medium-sized materials.
Includes 4-8 inch PU/nylon/polypropylene casters (fixed/universal with brakes), towing hooks, divider nets, dust covers, label holders, reinforced shelves, etc., which can be purchased separately as a customized supplement, and after-sales replacement to adapt to customized adjustment needs is also supported.
|
Product Type
|
Material
|
Standard Size (L*W*H)
|
Load Capacity
|
Surface Treatment
|
|
CH05026
|
Q235 Mild Steel
|
800*600*1750mm (Customizable)
|
300-500kg (Customizable)
|
Electrostatic Spraying
/ Cold Galvanizing
|
|
Note: Prolaker Type A core supports customization of size, load capacity, casters, and shelves; parameters can be flexibly adjusted according to customer needs. All products use Q235 carbon steel as the base material (material specifications can be optimized for load capacity upgrades), and have undergone load-bearing and pressure resistance tests, meeting industry safety standards for logistics equipment. The surface treatment uses a galvanizing process to form a dense protective layer, significantly improving rust resistance. Hot-dip galvanizing has a corrosion resistance of ≥800 hours, and the powder coating thickness is 60-80 microns, with a wear resistance of 2H level.
|
Product Advantages
Foldable design saves space and improves storage efficiency.
The Prolaker A-type roll cage can be quickly folded into an L-shape during unloading. Single-layer models require no disassembly, while multi-layer models are equipped with removable or flush-folding shelves (shelf folding method can be customized). Compared to traditional turnover carts, it can save more than 75% of storage space, significantly reducing warehouse equipment idle costs and facilitating bulk storage and transportation.
Strong and durable with strong safety protection.
Made of high-quality Q235 carbon steel in one piece, the frame is fully welded and reinforced, and equipped with high-density wire mesh (mesh density can be customized according to load-bearing capacity). This achieves excellent impact resistance and deformation resistance.
Versatile and highly customizable.
The Prolaker A-type series can meet the needs of various scenarios, including inter-process turnover in workshops, supermarket order processing and delivery, warehouse sorting and temporary storage, and intercity freight transport.
Application
The following are the popular applications of Roll Cage, and more scenarios are waiting for you to explore.
Company Strength
✅ Source factory, in-house production control
✅ Professional customization, end-to-end quality control
✅ Efficient delivery, one-stop service, guaranteed after-sales support
We provide a one-stop service encompassing pre-sales consultation, customized solution design, manufacturing, logistics and distribution, and after-sales maintenance; Prolaker Type A products come with a 1-year warranty, and we offer 24/7 online customer service for quick response to customization and usage issues, addressing any concerns.
